ASF 3001 SS Stainless Steel Tree Protection System - Combined Tree Grille and Guard
Verified by manufacturer 27 days ago
Stainless steel tree protection system. Combined tree grille and guard
Application
Versatile and long lasting tree grilles ideal for a wide range of applications:
- Public realm
- Commercial projects
- Domestic/ residential projects
- Education: Schools, colleges and universities
- Parks and gardens
- Urban and rural environments
- Regeneration projects
- Soft and hard landscaping
Description
Combined tree grille and guard. Primarily supplied in stainless steel but also available in mild steel, Corten steel or aluminium.
Features and benefits:
- Tree grille and guard in one stylish unit.
- Protects the tree itself from damage and grazing.
- Protects tree surround from soil compaction, allowing natural irrigation and soil aeration which are vital for tree health.
- Available in a range of finishes depending on the metal used for manufacture: Polished to any standard, galvanized, painted, anodized, self coloured.
- Supplied in two halves with a support frame so that the whole thing can be uplifted if required so that trees and roots can be accessed for health reasons or dug out and replaced if necessary.
- Supplied with security fixings.
- Bespoke adaptions are available.
- Manufactured to any size needed by site.
General information
Color | Silver Beige Black Blue Bronze |
Finish | Satin Brushed Polished Blasted Bright |
Material | Stainless steel Guidance for specification option: Marine grade 1.4401 (316) Aluminium Cor-Ten Steel |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q50/260 Tree guards |
SKU Code | ASF 3001 |
Product range |
Specification data - Tree protectors
Classification data | |
Shape | Round. |
Material | |
Type | Stainless steel, Marine grade 1.4401 (316). |
Colour | Silver. |
Execution | Installing tree and shrub protectors. |
Security clips | Not required. Required. Guidance for specification option: Security Clips available to prevent unauthorised removal of the tree grille segments and to further increase the systems rigidity. |
Supporting frames | Required. Medium duty. Guidance for specification option: Stainless steel supporting frames supplied in two halves. Manufacturer guidanceTree grilles can be supplied with a range of supporting frames depending up to the application. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Marine grade 1.4401 (316) Aluminium Cor-Ten Steel |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
Literature

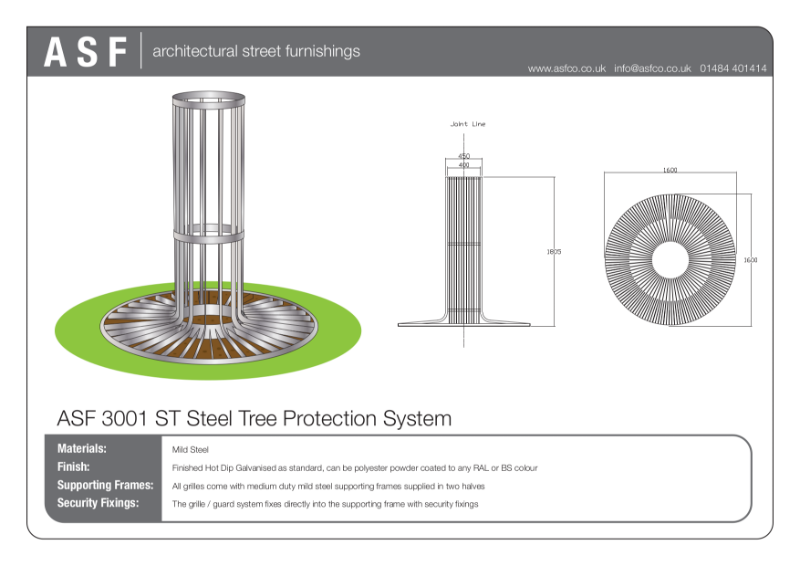

ASF 3001 Stainless Steel Tree Grille / Guard Combination
ASF 3001 Steel Tree Grille and Tree Guard Combination
Case studies

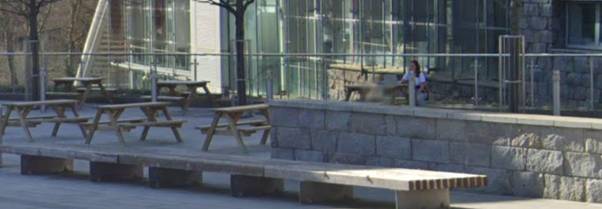

Robert Gordon University, Aberdeen
