This product is no longer available

Application

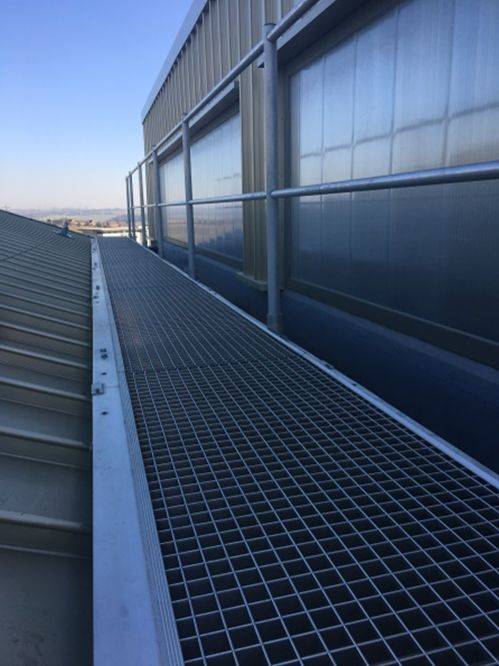

Safety walkway for standing seam roofs.

Description

Aluminium walkway for standing seam roofing systems, with a standardized modular system, allowing the design of anti-slip compliant walkways for access on all major manufacturers' and their metal profile roofing systems. The range of standard components fixes to roofs of differing slope and seam widths.

The walkway can be configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty) and can be supplied with an optional toeboard if required. The system is unique in that it can achieve these loadings without the need for additional bracing, allowing the walkway to be placed against the area to be accessed. The walkway can be levelled when required to traverse across the pitch of a roof and stepped when ascending a roof slope. CE marked and tested to BS EN 516:2006 Class 1 Type C.

Applications:

Safety walkway for standing seam roofs.

Approvals:

Kalzip and BEMO approved.

General information
Specification data
Product Reference

Ascent™ Aluminium Walkway System for Standing Seam Roofs

Design

As drawing

Insert reference, consult manufacturer for information.

Handrails

Not required

Both sides

One side

Insert requirement.

Accessories

None

Toeboards

Self-closing gate

Standard product features

Material:

Aluminium.

Panel size (l x w):

2000 x 760 mm (600 mm wide walkable area).

Fixings:

  • Type: Standing seam flat top clamps.
  • Spacing: Across the fall of the roof: 1400 mm; with the fall of the roof: 1600 mm.

Product Options

Design:

The Ascent Walkway system can be installed on roof pitches greater than 3˚ by using levelling bracketry to provide a level, compliant walkway. Stepped units are also available, consult manufacturer's literature for information.

Guardrails:

Guardrails can be designed to have closed, open or fixed end details dependent on requirements, consult manufacturer's literature for more information.
