Ascent Fall Protection Posts
Application

For use with cable-based fall protection systems conforming to EN 795 Class C, rail-based fall protection systems to EN 795 Class D and abseil access points to BS 7985:2002 and BS 8610: 2017

Description

Structural anchor posts (fall protection and abseil posts) manufactured from galvanized carbon steel. Fixings to structural background are not supplied.

Features and benefits:

Comprises standard posts: end, corner and intermediate anchor posts. Each is available in small (200 mm), medium (400 mm) and large (600 mm) and extra-large (800 mm).

Designed and tested in accordance with the requirements of EN 795 (2017) . Each post is manufactured in accordance with strict quality procedures in accordance with BS EN ISO 3834-2:2005 and BS EN 1090-1:2009 + A1:2011 and 2:2008, CE Marked.

Can be manufactured for attachment to a wide range of structural backgrounds: masonry, structural steelwork and structural timber.

The structural anchor posts are designed to take both fall arrest and suspension loads (abseil). They are designed to cope with the differing loads experienced at system ends, corners and intermediates.

Abseil access posts are also available for either individual attachment or for the fixing of an abseil rail to BS 7985:2002.

Applications:

For use with cable-based fall protection systems conforming to EN 795 Class C, rail-based fall protection systems to EN 795 Class D and abseil access points to BS 7985:2002 and BS 8610: 2017

General information

Color

Steel

Features

Can be manufactured to a range of structural backgrounds - masonry, structural steelwork or structural timber

Finish

Steel

Material

Galvanised mild steel

Size

200 x 250 x 250 mm

WarrantyDescription

To be installed by an approved competent installer

Uniclass 2015

Pr_20_29_03_86 Structural anchorsPrimary

CAWS

N25/20 Single point anchorage devices

N25/220 Single point anchorage devices

Specification data - Structural anchors

Product Reference

Ascent™ Fall Protection and Abseil Posts

Type

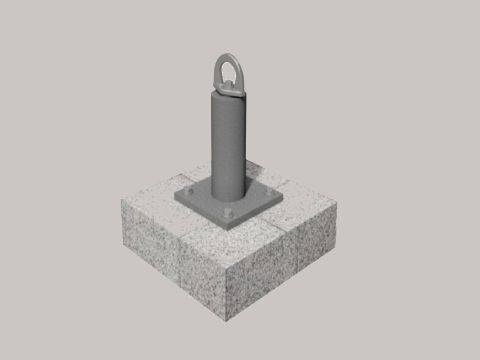

Abseil Post

Load capacity to 21 kN (BS 8610:2017).

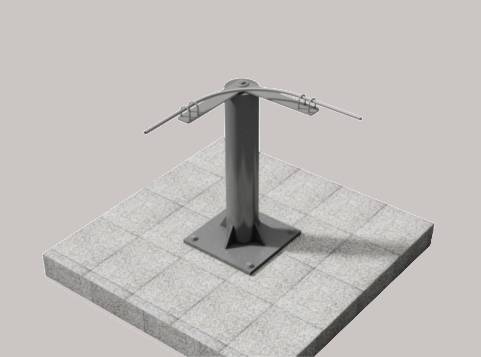

Corner Post

End Post

Intermediate Post

Material:

Galvanized carbon steel

Height

Insert requirement, available up to 800 mm.

Standard product features

Size:

Dependent on post type and height.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
IFC
- 2 2.1
Download now from NBS National BIM Library
