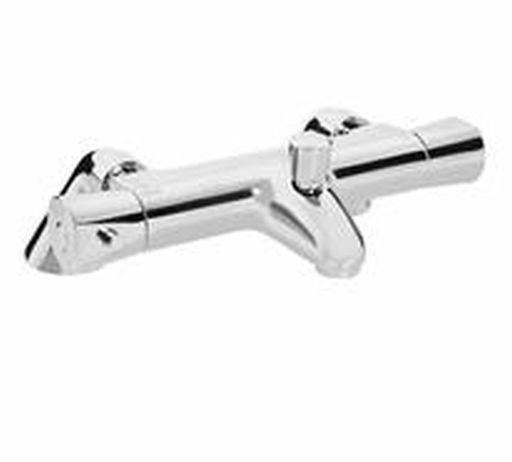

AS2 THBSM C - Assure Thermostatic Bath Shower Mixer Chrome
TMV2 thermostatic bath shower mixer.
Application
For all domestic bathrooms.
Description
TMV2 certified thermostatic control to both bath and shower functions for enhanced user safety.
Features and benefits:
- Dual control - flow and temperature are controlled separately.
- Pre-set maximum temperature at 38ºC which can be overridden.
- Thermostatic cartridge maintains showering temperature to ± 1°C.
- Automatic shut off in the event of hot or cold water supply failure.
General information
Color | Silver |
Finish | Chrome plated |
Material | Brass |
Size | 256 x 78 x 143 mm |
WarrantyDescriptionGuarantee covering manufacturer faults | Five years |
Uniclass 2015 | |
CAWS | N13/375 Shower units N13/40 Shower units |
Specification data - Bath mixer taps with shower hose and hand sprays Enhanced data
Standards | To BS EN 200 / BS EN 248. |
Approval | Water Regulations Advisory Scheme (WRAS) approved. |
Form | Thermostatic bath mixer tap with shower connection. |
Materials | - |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 15.9 L/ min at 3 bar. |
Water supply temperature (maximum) | 38°C. |
Size | 19.1 mm. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2016 | 2 | 2.0 |
 IFC | IFC2X3 | 1 | 1.3 |
| IFC | IFC2X3 | 1 | 1.3 |
