Artico Homelift (AHL)

Name: Artico Homelift (AHL)
Brand: Gartec Platform Lifts
SKU: rthUrSyDzE7yDQvs36TJw8

Verified by manufacturer 2 days ago

S5, 600 x 830 mm platform size (250 kg/ two person)

Gartec Platform Lifts

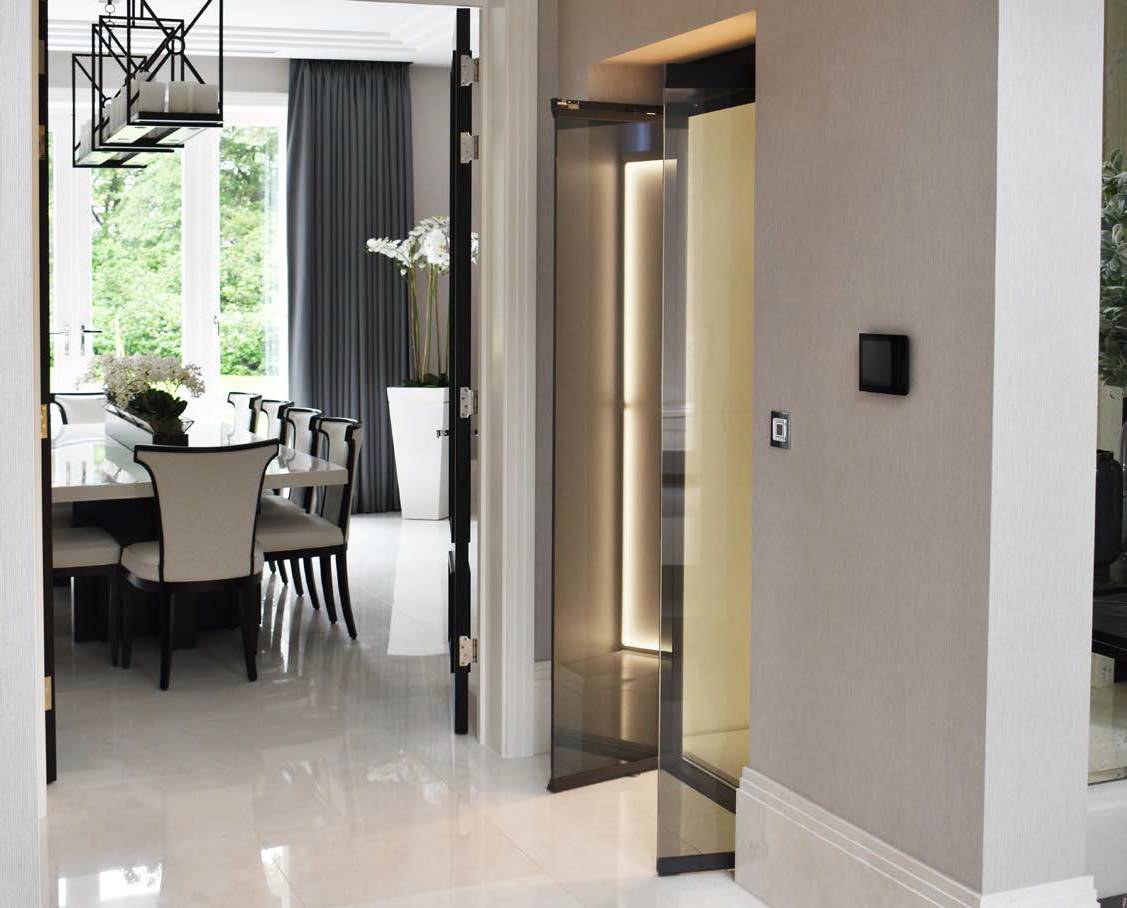

Residential passenger platform lift with smart technology and offering a design statement for the home.

Jump to:

+44 (0)1296 397100 Website

Application

Internal residential lift, especially where a design statement is required.

Description

Residential passenger platform lift offering a design statement for the home:

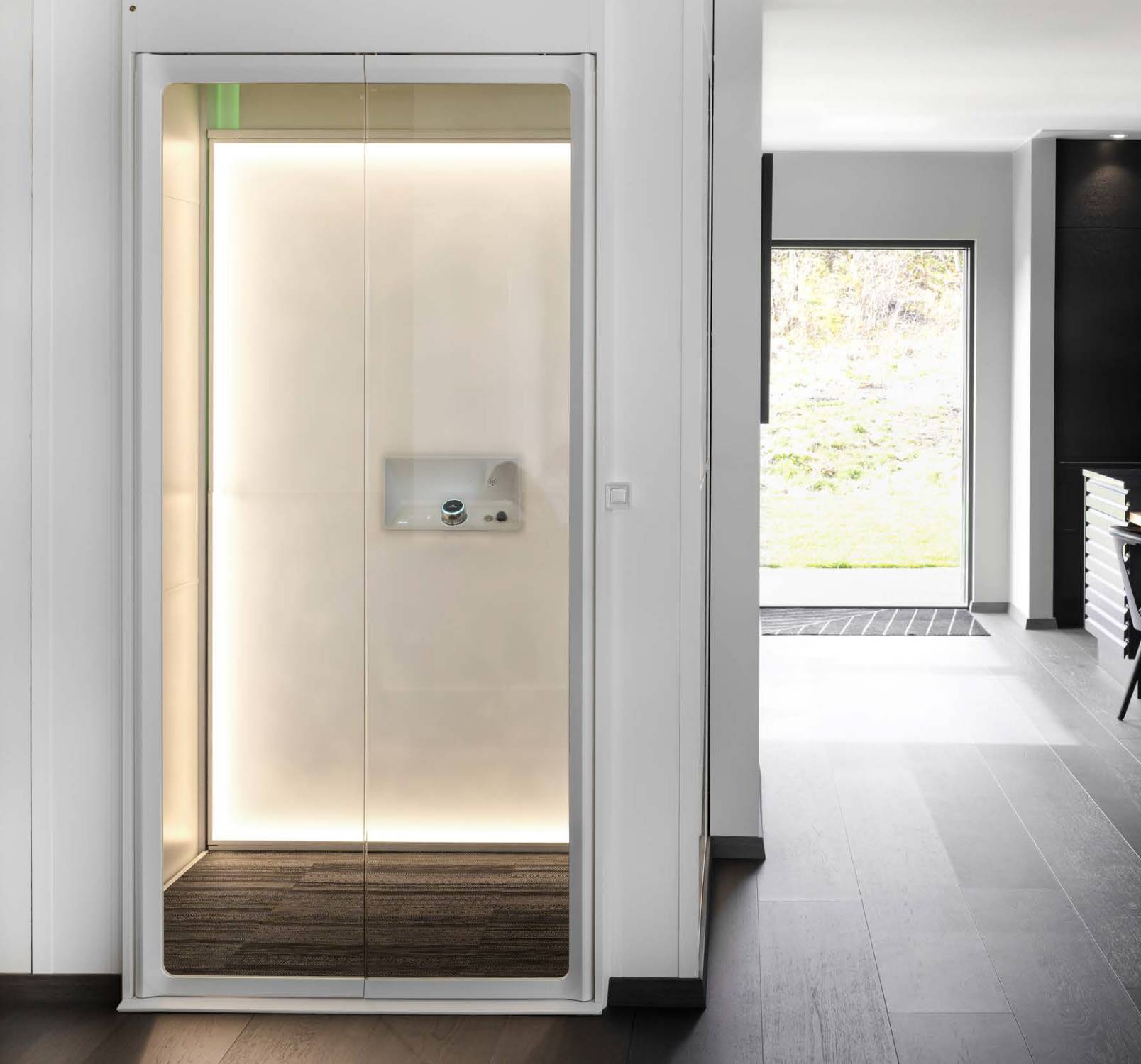

DesignWall: a backlit wall with selected art from prominent Scandinavian designers, the customer’s own image or a plain background for a classically timeless design if preferred.
DesignLight: with state-of-the-art lighting controlled via the SmartLift app. Lights up a hallway with the desired colour lighting.
Equipped with the SmartSafety system, with safety features to meet all situations that can occur in a home, as well as to prevent accidents.

Features and benefits:

Optimal design and size with a wide range of finishes.
Travel height: 250–15 000 mm (two to six floors).
Made using up to 95% recyclable materials.
Energy efficient (low power usage).
Patented screw/ nut technology.
Low maintenance and operating costs.
Minimal building work and quick installation.
Self-contained unit (no separate machine room).
Multiple lift sizes.
Shaft enclosure supplied with lift.
Glazed or solid shaft panels.
Doors on up to three different sides.
Automatic glazed double doors.
Safety edges around platform.
40 mm pit or ramp.
Integral electrical cabinet.
Operated via an exclusive solution, the SmartControl.
“Connected” lift allowing for remote monitoring and troubleshooting.

Technical compliance:

European Machine Directive 2006/42/EC.
EN 81-41.

General information

Warranty description	Two year Guidance for specification option: The screw and nut assembly has a ten-year warranty.

Uniclass	Pr_65_80_47_95 Vertical lifting platformsPrimary
CAWS	X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Classification data
Standard	To BS EN 81-41.
Rated load (minimum)	250 kg.
Drive type	Screw and nut.
Carriage type	Fully enclosed.
Carrier	-
Frame material	Manufacturer's standard.
Frame finish	Painted.
Frame colour	Traffic white (RAL 9016). Guidance for specification option: Standard. Pure white (RAL 9010). Grey white (RAL 9002). Oyster white (RAL 1013). Light ivory (RAL 1015). Champagne (RAL 060 70 10). Light blue grey (RAL 200 80 10). Light sage green (RAL 120 80 20). Moss green (RAL 6005). Brown red (RAL 3011). White aluminium (RAL 9006). Telegrey 1 (RAL 7045). Anthracite grey (RAL 7016). Jet black (RAL 9005).
Infill material	Solid panels. Glazed panels.
Infill finish	Manufacturer's standard. Guidance for specification option: Dependent on infill material specified.
Insert colour	Not required. Guidance for specification option: Glazed panels only. Traffic white (RAL 9016). Guidance for specification option: Standard (solid panels only). Pure white (RAL 9010). Guidance for specification option: Solid panels only. Grey white (RAL 9002). Guidance for specification option: Solid panels only. Oyster white (RAL 1013). Guidance for specification option: Solid panels only. Light ivory (RAL 1015). Guidance for specification option: Solid panels only. Champagne (RAL 060 70 10). Guidance for specification option: Solid panels only. Light blue grey (RAL 200 80 10). Guidance for specification option: Solid panels only. Light sage green (RAL 120 80 20). Guidance for specification option: Solid panels only. Moss green (RAL 6005). Guidance for specification option: Solid panels only. Brown red (RAL 3011). Guidance for specification option: Solid panels only. White aluminium (RAL 9006). Guidance for specification option: Solid panels only. Telegrey 1 (RAL 7045). Guidance for specification option: Solid panels only. Anthracite grey (RAL 7016). Guidance for specification option: Solid panels only. Jet black (RAL 9005). Guidance for specification option: Solid panels only.
Doors	-
Arrangement	Single.
Type	Double doors, glazed, hinged. Guidance for specification option: Two glass leaves with a central opening and painted profiles.
Clear opening width (minimum)	630 mm.
Frame material	Manufacturer's standard.
Infill material	Glazed.
Infill finish	Manufacturer's standard.
Carrier floor	-
Dimensions	-
Width (minimum)	600 mm.
Depth (minimum)	830 mm.
Colour	Bolon Sisal plain sand. Bolon graphic. Bolon flow tide. Carpet elephant. Carpet chianti. Carpet camel. Bespoke. Guidance for specification option: Consult manufacturer for options and insert requirements.
Electrical supply	Single-phase, 230 V, 20 A.
Control device type	Signature controller. Guidance for specification option: Works like an i-Drive system: turn the dial to select the floor and press the button to travel. Hold to run.
Control features	Illuminated landing indicator; autodialler. Guidance for specification option: The landing indicator lights up the floor number the cabin is on and lights up the floor selection when turning the signature controller button. To comply with regulations an autodialler is fitted providing two-way communication. The autodialler is programmed with up to five numbers provided by the customer. In an emergency, pressing the alarm button for 10 seconds activates the autodialler which then automatically calls the programmed numbers.
DesignWall	Orientalic. Guidance for specification option: By Alexander Lervik. Pink. Guidance for specification option: By Lotta Ingman. Orange. Guidance for specification option: By Lotta Ingman. Diagonal. Guidance for specification option: By Alexander Lervik. Sheets. Guidance for specification option: By Rikard Lilja. Structure. Guidance for specification option: By Rikard Lilja. Skyline. Guidance for specification option: By Erik Undéhn. Key West. Guidance for specification option: By Erik Undéhn. Bespoke. Guidance for specification option: Consult manufacturer for advice on using your own print, pattern or photograph, and insert requirements. Not required. Guidance for specification option: For a plain (classic) background.
Speed	Maximum rated: 0.15 m/s.
Height	- Manufacturer guidance Top height: insert requirements, 2225–3000 mm.
Structural opening size	910 x 1011 mm.
Ramp	Required (40 mm). Guidance for specification option: For installation direct onto floor. Not required (40 mm pit). Guidance for specification option: For recessed installation.
Safety	SmartSafety system; emergency battery lowering.
