Aritco PublicLift Access - Outdoor version

Verified by manufacturer 21 hours ago

410 kg rated load, adjacent entry

Gartec Platform Lifts Variant:

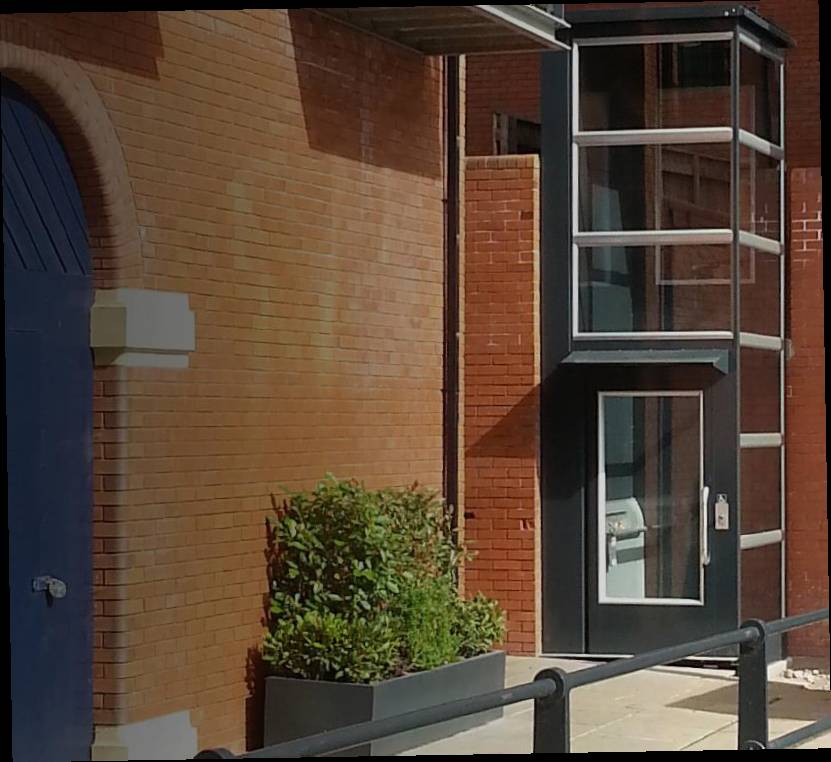

External platform lift suitable for external to internal access, as a wheelchair lift, car park lift and more.

Jump to:
+44 (0)1296 397100 Website

Application

External platform lift intended for use in public and commercial environments.

Description

External platform lift suitable for external to internal access with extra features for outdoor longevity.

Can also be used as a wheelchair lift, car park lift and more.

The range includes a standard indoor option and a goods option (both specified separately).


Features and benefits:

  • Galvanized roof for external exposure.
  • GL glass as standard; fire-rated door available when opening inside a building.
  • Ventilation fan as standard, shaft heating optional.
  • Door canopy for weather protection.
  • Chromated guides for anti-corrosion protection.
  • 50 mm ramp or pit.
  • Wide range of finishes.
  • Made using up to 95% recyclable materials, with up to 92% of the materials used already from recycled and sustainable sources.
  • Energy efficient (low power usage).
  • Patented screw/ nut technology.
  • Lowest maintenance and operating costs on the market.
  • Minimal building work and quick installation.
  • Self-contained unit (no separate machine room).


Part M and Equality Act compliant (consult manufacturer for details).

General information

Material

Steel

Aluminium

Glass

Shape

Rectangle

Length

1100 mm

Width

1480 mm

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Standard

To BS EN 81-41.

Guidance for specification option:

Complies to European Machine directive 2006/42/EC.

Rated load (minimum)

410 kg.

Drive type

Patented screw/ nut system.

Carriage type

Fully enclosed.

Carrier

-

Frame material

Manufacturer's standard.

Frame finish

Painted.

Frame colour

Traffic white RAL 9016.

Guidance for specification option:

Standard.

Pure white RAL 9010.
Grey white RAL 9002.
Oyster white RAL 1013.
White aluminium RAL 9006.
Light ivory RAL 1015.
Telegrey 1 RAL 7045.
Moss green RAL 6005.
Anthracite grey RAL 7016.
Brown red RAL 3011.
Jet Black RAL 9005.

Infill material

Solid panels.

Guidance for specification option:

Painted as standard; consult manufacturer for further details.

Insert colour requirements below.

Glass, clear.

Guidance for specification option:

Standard glass option. Consult manufacturer for further details.

Glass, tinted.

Guidance for specification option:

Consult manufacturer for further details.

Infill finish

Manufacturer's standard.

Guidance for specification option:

Solid panels are painted as standard.

Insert colour

Not required (glass infill).
Traffic white RAL 9016.

Guidance for specification option:

Standard, solid panels only.

Pure white RAL 9010.

Guidance for specification option:

Solid panels only.

Grey white RAL 9002.

Guidance for specification option:

Solid panels only.

Oyster white RAL 1013.

Guidance for specification option:

Solid panels only.

White aluminium RAL 9006.

Guidance for specification option:

Solid panels only.Solid panels only.

Light ivory RAL 1015.
Telegrey 1 RAL 7045.

Guidance for specification option:

Solid panels only.

Moss green RAL 6005.

Guidance for specification option:

Solid panels only.

Anthracite grey RAL 7016.

Guidance for specification option:

Solid panels only.

Brown red RAL 3011.

Guidance for specification option:

Solid panels only.

Jet Black RAL 9005.

Guidance for specification option:

Solid panels only.

Doors

-

Arrangement

Adjacent.

Manufacturer guidance

Maximum two doors per floor.

Type

GL full-height door(s) with concealed closer.

Guidance for specification option:

Standard glass and steel door, with standard concealed closer.

GL full-height door(s) with automatic door opener.

Guidance for specification option:

Standard glass and steel door.

GL full-height door(s) with FAAC door opener.

Guidance for specification option:

Standard glass and steel door.

EI60 fire door(s) with concealed closer.

Guidance for specification option:

60-minute fire and smoke protection. Includes standard concealed door closer.

NOTE: Fire-rated shaft to be created around the enclosure.

EI60 fire door(s) with automatic door opener.

Guidance for specification option:

60-minute fire and smoke protection.

NOTE: Fire-rated shaft to be created around the enclosure.

EI60 fire door(s) with FAAC door opener.

Guidance for specification option:

60-minute fire and smoke protection.

NOTE: Fire-rated shaft to be created around the enclosure.

Manufacturer guidance

Handle(s) included, colour specified separately below.

Clear opening width (minimum)

-

Manufacturer guidance

Insert requirements.

Fire classification

Manufacturer's standard.

Guidance for specification option:

See Door - Type for fire-rated options.

Frame material

Manufacturer's standard.

Frame finish

Painted.

Frame colour

Traffic white RAL 9016.

Guidance for specification option:

Standard.

Pure white RAL 9010.
Grey white RAL 9002.
Oyster white RAL 1013.
White aluminium RAL 9006.
Light ivory RAL 1015.
Telegrey 1 RAL 7045.
Moss green RAL 6005.
Anthracite grey RAL 7016.
Brown red RAL 3011.
Jet Black RAL 9005.

Infill material

Solid panels.

Guidance for specification option:

Painted as standard; consult manufacturer for further details.

Insert colour requirements below.

Glass, clear.

Guidance for specification option:

Standard glass option. Consult manufacturer for further details.

Glass, tinted.

Guidance for specification option:

Consult manufacturer for further details.

Infill finish

Manufacturer's standard.

Guidance for specification option:

Solid panels are painted as standard.

Infill colour

Not required (glass infill).
Traffic white RAL 9016.

Guidance for specification option:

Standard, solid panels only.

Pure white RAL 9010.

Guidance for specification option:

Solid panels only.

Grey white RAL 9002.

Guidance for specification option:

Solid panels only.

Oyster white RAL 1013.

Guidance for specification option:

Solid panels only.

White aluminium RAL 9006.

Guidance for specification option:

Solid panels only.Solid panels only.

Light ivory RAL 1015.
Telegrey 1 RAL 7045.

Guidance for specification option:

Solid panels only.

Moss green RAL 6005.

Guidance for specification option:

Solid panels only.

Anthracite grey RAL 7016.

Guidance for specification option:

Solid panels only.

Brown red RAL 3011.

Guidance for specification option:

Solid panels only.

Jet Black RAL 9005.

Guidance for specification option:

Solid panels only.

Carrier floor

-

Dimensions

-

Width (minimum)

1100 mm.

Depth (minimum)

1480 mm.

Material

Vinyl, dark grey.

Guidance for specification option:

Standard flooring material.

Vinyl, light grey.

Guidance for specification option:

Standard flooring material.

Vinyl, aged oak.

Guidance for specification option:

Standard flooring material.

Vinyl, oiled oak.

Guidance for specification option:

Standard flooring material.

Vinyl, European oak.

Guidance for specification option:

Standard flooring material.

Aluminium, checker plate.
Rubber, black checker stud.
Rubber, grey checker stud.

Colour

As Material.

Electrical supply

Single-phase 230 V a.c. 50 Hz 20 A type C MCB.
Three-phase 400 V a.c. 50 Hz 20 A type C MCB.

Manufacturer guidance

Control voltage: 24 V.

Motor: 2.2 kW (3 kW available for higher speed; consult manufacturer for details).

Control device type

Hold to run.

Guidance for specification option:

The destination button must be kept pressed down during the whole journey.

Control features

Manufacturer's standard.

Guidance for specification option:

  • Communication: Alarm button; buzzer sounds when pressed.
  • Destination buttons: Round, 32 mm Braille and tactile buttons.
  • Landing controls: One-touch call, single-press operation.
  • Battery-operated emergency lowering.
  • Door locking system: Electrically operated deadlock.

Accessories

None.
Key locking.

Guidance for specification option:

A key can be used to call and use the lift instead of a button to restrict access. The doors lock ten seconds after closing. Suited to school environments.

Remote call station.

Guidance for specification option:

Turn the push button to active or inactive to take the call.

Push button and key switch.

Guidance for specification option:

Mounted away from the lift, either flush or surface mounted. Allows the user to call the lift whilst away from the doors.

Drop-down seat.

Guidance for specification option:

Fold-down seat in solid birch with chromed brackets. To be folded manually after use.

Intercom.

Guidance for specification option:

The platform handset links to an externally-mounted handset for communication between the two.

Telephone.

Guidance for specification option:

Attached to the platform. Can be used like a normal phone connected to a customers analog line. Intended for emergencies only.

Autodialler.

Guidance for specification option:

Integrated in the control panel and connected to the customers analog line the autodialler rings a set of pre-entered numbers when the button is pressed. When unanswered, the next number is called.

Autodialler with 2G.

Guidance for specification option:

GSM 2G autodialler; consult manufacturer for details.

50 mm round Braille and tactile destination buttons.

Guidance for specification option:

Replaces standard 32 mm buttons. Shows a halo ring for the main floor.

Platform floor indicator.

Guidance for specification option:

A voice and LED display notifying the user of the landing reached and the current position of the lift whilst travelling.

Landing position indicator.

Guidance for specification option:

Illuminated LED display showing the current position of the lift from the outside. Positioned on the exterior landing of the lift.

Heating system.

Guidance for specification option:

A 2000 W heater placed at the bottom of the shaft prevents freezing during winter. External power socket required.

Door canopy.

Guidance for specification option:

Sloping roof placed above landing doors to protect doors and users from poor weather.

Made of galvanized steel. Painted in Traffic White (RAL 9016).

Width: 1160 mm. Slope angle: 23°.

Exterior roof.

Guidance for specification option:

Required if the top landing is external and not installed in a pre-built shaft.

Made of galvanized steel and painted in Traffic White (RAL 9016) as standard.

An inner ceiling with light must be ordered with the exterior roof.

Manufacturer guidance

Other optional items (console, handle(s) and handrail) specified separately.

Enclosure

-

Manufacturer guidance

Enclosure top height:

Insert requirements; minimum 2400 mm. No head fixing required.

Overall height

-

Manufacturer guidance

Insert requirements.

Travel height: 250–13 000 mm, 2–6 floors (dependent on wind loading).

Handrail

Traffic white RAL 9016.

Guidance for specification option:

Standard; with fingerprint-resistant finish.

Matches the standard lift, doors, walls and handles.

Grey (Anodic colour Natura).

Manufacturer guidance

Housed in console specified.

Console height

Half height.

Guidance for specification option:

Standard. Houses the controls and handrail, with safety stop

edge. Total height: 1100 mm.

Full height with mirror.

Guidance for specification option:

Houses controls, large mirror (with safety edge) and handrail

both including LED lighting. Total platform height: 2000 mm.

Manufacturer guidance

Handrail colour and control options specified separately.

Handles

Closed-end rod style, Traffic white RAL 9016.

Guidance for specification option:

Standard; with fingerprint-resistant finish.

Matches the standard lift, doors, walls and internal handrail.

Closed-end rod style, grey (Anodic colour Natura).

Lighting types

Manufacturer's standard.

Guidance for specification option:

  • Ceiling: Built-in LED lightbox downlights.
  • Handrail: LED lighting built in, projecting down to the floor. Also acts as emergency backup lighting.

Speed

Maximum rated: 0.15 m/s.

Guidance for specification option:

Consult manufacturer if higher speed required.

Structural opening (w x h)

1505 x 1630 mm.

Maximum wind loading

Up to 25 m/s.

Guidance for specification option:

When fixed to a supporting wall or structure.

Up to 10 m/s.

Guidance for specification option:

When supported by manufacturer-supplied bracket; consult manufacturer for details.

TemperatureRange

-5–40°C.

Guidance for specification option:

Working temperature range.

Ramp

Not required.

Guidance for specification option:

50 mm pit will be required at the lowest floor level.

50 mm galvanized steel ramp.

Guidance for specification option:

To be included at the lowest floor level.

Manufacturer guidance

Threshold and pit drains are recommended; consult manufacturer for details.

Sustainability data

Material

Steel
Aluminium
Glass

Recyclability

Up to 95%

Literature

Gartec Artico PublicLift Access – Brochure

Gartec Artico PublicLift Access – Brochure

Similar products from Gartec Platform Lifts

Aritco 4000 Residential Passenger Platform Lift

Aritco 4000 Residential Passenger Platform Lift

Aritco 6000 Residential Passenger Platform Lift

Aritco 6000 Residential Passenger Platform Lift

Aritco 7000 Flexi Light Goods and Passenger Lift

Aritco 7000 Flexi Light Goods and Passenger Lift

Aritco 7000 Passenger Platform Lift - Adjacent Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Adjacent Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Same Side Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Same Side Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Same Side Entry and Exit Fire Doors

Aritco 7000 Passenger Platform Lift - Same Side Entry and Exit Fire Doors

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors, Short Travel Distance

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors, Short Travel Distance

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors, with Glass Lift Shaft

Aritco 7000 Passenger Platform Lift - Through Car Entry and Exit Doors, with Glass Lift Shaft

Aritco 7000 XT External Passenger Platform Lift

Aritco 7000 XT External Passenger Platform Lift

© 2025 Hubexo North UK Ltd. All rights reserved.
