Arno Surface Linear Lighting
Application

  • Used as an individual luminaire above workstations or a continuous linear lighting system.
  • Suitable for CAT A and CAT B office fit-out and flexible co-working spaces, breakout areas and reception areas.

Description

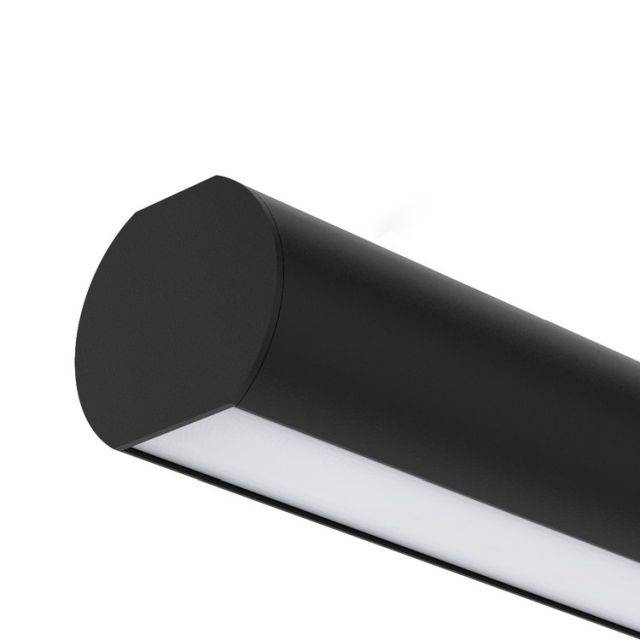

Surface mounted linear LED lighting with a tubular profile.


Features and benefits:

  • Minimalist, industrial design for a pleasing aesthetic appearance.
  • High build quality and versatile design.
  • Provides a high level of visual comfort, and is therefore suitable for stimulating working environments and schemes looking to achieve LG7 compliance.
  • A range of size and colour variations are possible.
  • Easy to install with the plug and play system.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Internal drivers are supplied.

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Tubular, linear

Size

566 mm

636 mm

706 mm

776 mm

846 mm

Show more

WarrantyDescription

Two years

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Third-party certification

Measurement Certificate 0342/2018 and LM-79-08 Photometrics.

Luminaire description

Surface mounted, tubular, linear.

Classification

-

Electric shock

Low Voltage (<1000V).

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Push.

Screw.

Nominal voltage

220–240 V.

Luminaire power factor

0.98 at full load.

LED luminaires

-

Performance standards

EN 13032-1.

Safety standard

IEC EN 60598-1.

Initial LED luminaire efficacy (minimum)

125 lm/W.

Wattage

Direct: 13 W/ 1484 lm up to 50 W/ 5936 lm.

Colour temperature

3000K.

4000K.

Tunable White (TW) 2700-5000K.

Insert requirements.

Colour rendering index (Ra)

80.

90.

Beam angle

30–100°.

Useful life

100 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Touch-dimmable.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Integral sensors

Not required.

Philips EasyAir.

PIR/ Daylight.

Helvar Active Plus.

Micro Standalone Sensor.

Accessories

Additional modules for specification only if a continuous linear lighting system is required.

Product Reference

Arno Surface

Standards

IEC 60596-2-1 and IEC 60596-2-2.

Classification mode of operation

Maintained.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Useful life

50 000 hours (L80B20).

Optics

Asymmetric Reflector.

Black Opal.

Microprismatic Diffuser.

Modular Optics.

Opal Diffuser.

Colour

Black.

Grey.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<20.7.

Longitudinal

<22.7.

Efficiency

94%.

Frequency

50–60 Hz.

Emergency output

200 lm.

Output direction

Direct.

Control gear position

Integral within luminaire.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
