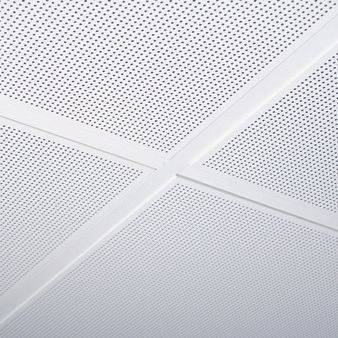

Armstrong METAL Lay-in Board - Exposed Grid System

Name: Armstrong METAL Lay-in Board - Exposed Grid System
Brand: Knauf Ceiling Solutions Limited
SKU: 6GnJ6EXeaMBmSBFEti3Rub

Verified by manufacturer 22 days ago

Unperforated infill units

Knauf Ceiling Solutions Limited

Demountable ceilings with exposed grid and metal lay-in Board infills.

Jump to:

Request BIM

+44 (0)191 518 8600 Website

Application

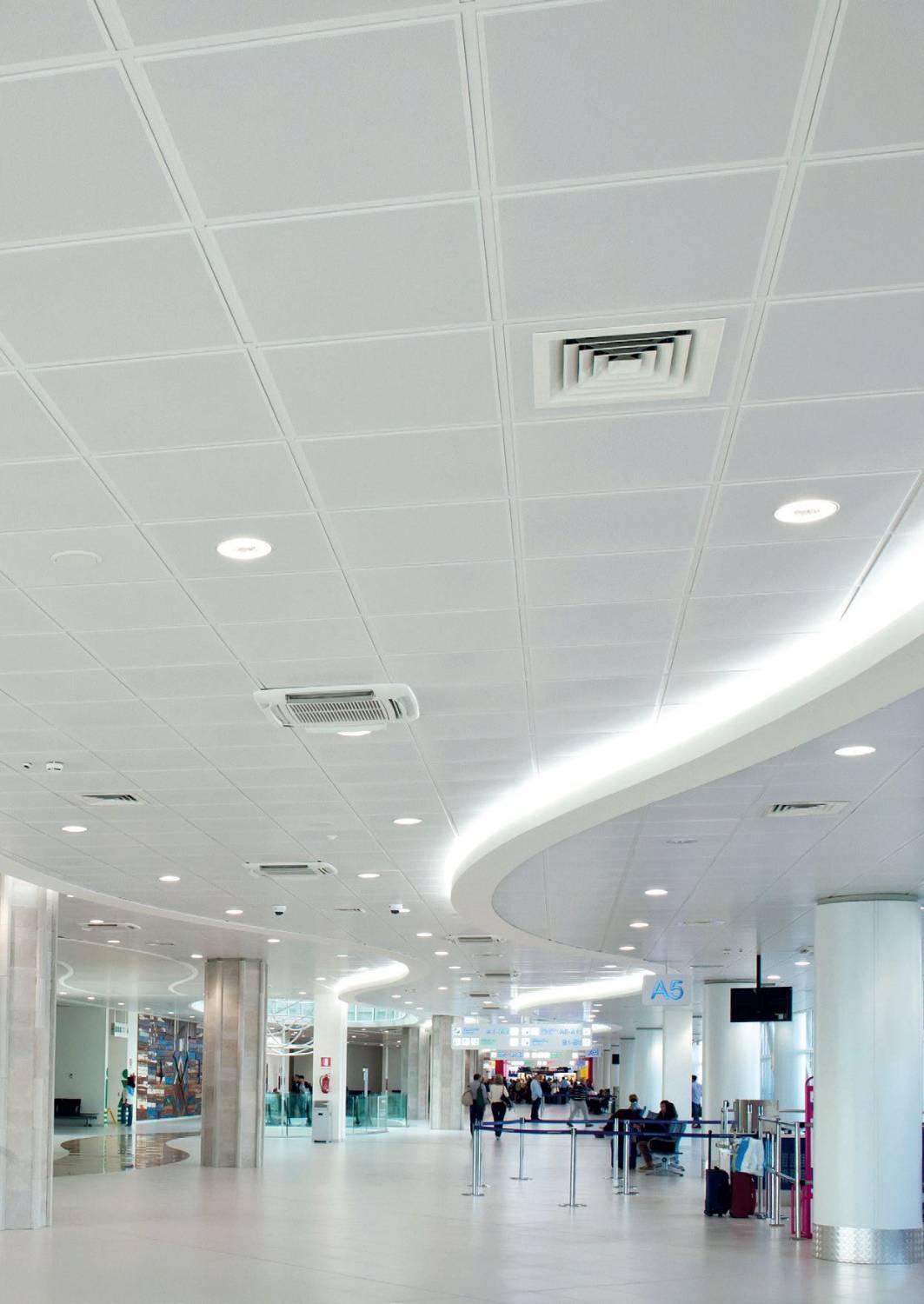

Suitable for use in a variety of ceiling areas, from small service rooms to large commercial office buildings and major transportation terminals.

Building type: leisure and hospitality, office.
Room type: restaurant/ Food court, cafeteria, gym/ spa, library/ media centre, private office, meeting room/ conference room.

Description

Demountable ceilings with exposed grid and metal lay-in Board infills.

Features and benefits:

One of a range of edge details for installation on standard 24 mm suspension systems.
Boards can also be laid in a 15 mm grid.
Easily assembled and fully demountable to allow access to the ceiling void.
Cost effective ceiling solution.
BIOGUARD antimicrobial finish option.
Additional design options available as part of the Vario Design range.

General information

Color	White Guidance for specification option: RAL 9010. Black Brown Grey Other Silver Show more
Finish	Painted Guidance for specification option: Post-coated. Anti-microbial
Material	Steel Guidance for specification option: Galvanized steel.
Shape	Square Rectangle Other
Length	600 mm 1200 mm Bespoke
Width	600 mm Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Individual product and approved KCS system installed

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system

Specification data - Modular suspended ceiling systems

Classification data
Ceiling support	DONN® DX3-24 \| SG exposed 24 mm grid - System C. Exposed demountable - System C (24 mm T-Grid, butt-cut). Exposed demountable - System C (15 mm T-Grid, butt-cut). Manufacturer guidance Consult manufacturer's literature for more details.
Support fasteners	Manufacturer's standard.
Ceiling units	Lay-in Board, 600 x 600 mm. Lay-in Board, 1200 x 600 mm.
Barriers in ceiling void	-
Acoustic barriers	-
Samples required	Product samples. Demountable suspended ceiling prototypes. Not required.
System accessories	None. Cut-outs. Guidance for specification option: Insert details. Manufacturer guidance See below for anti-microbial coating option.
Anti-microbial coating	BIOGUARD anti-microbial coating. Guidance for specification option: Consult manufacturer's literature for details. Not required.
Weight	3.9–4.9 kg/m². Manufacturer guidance Weight varies depending on the edge detail and acoustic infill.
Light reflectance	85%. Manufacturer guidance Applicable for RAL 9010 only; consult manufacturer for details of other colours.
Constant humidity resistance	90% RH.
Acoustic performance	To EN ISO 10140-2, Rw 19 dB. To EN ISO 354, αw: 0.10 (L); Class NC; NRC: 0.10. To ISO 10848-2, Dn,f,w: 44 dB.
Third-party certification	Indoor Air Quality Class A+. Cradle to Cradle Certified Silver. Guidance for specification option: Cradle to Cradle certification is applicable to RAL 9010 only; consult manufacturer for details of other colours.
Reaction to fire	To EN 13501, Euroclass A1. Manufacturer guidance Applicable for RAL 9010 only; consult manufacturer for details of other colours.
Colour	RAL 9010 White. Guidance for specification option: Standard. RAL 9003 Signal White. RAL 9005 Black. RAL 9006 White Aluminium. RAL 9007 Grey Aluminium. RAL 9016 Traffic White. Global White. Wood effect, Ash. Guidance for specification option: Tiles only. Wood effect, Natural Bamboo. Guidance for specification option: Tiles only. Wood effect, Caramel Bamboo. Guidance for specification option: Tiles only. Wood effect, Maple. Guidance for specification option: Tiles only. Wood effect, Oak. Guidance for specification option: Tiles only. Wood effect, American Cherry. Guidance for specification option: Tiles only. Wood effect, American Walnut. Guidance for specification option: Tiles only.
Perforations	Unperforated.
Type	Solid.
Materials	Infill units: post-coated galvanized steel, 0.5–0.6 mm thick.
Perimeter trim	Not required. RA 1 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 2 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 3 Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 4 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 5 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 6 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 9 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 1 S trim. Guidance for specification option: Consult manufacturers literature for more details. Ra 3 S Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details.
Bulkhead	Type 1B, 200 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 600 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 200 mm Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 750 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 1000 mm. Guidance for specification option: Consult manufacturers literature for more information.

Sustainability data

Contains Red List materials	No Manufacturer guidance please refer to EPD
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel Guidance for specification option: Galvanized steel.
Recyclability	- Manufacturer guidance Please see EPD
Recycled content As defined in clause 7.8 of BS EN ISO 14021	14 %
