Armour Chem

Application

  • Tank linings for primary and secondary containment.
  • Roof coatings for metal decks.
  • Steel tanks, silos and pipes.
  • Hail, bird and traffic protection over polyurethane foam.
  • Encapsulant for styrofoam and other types of floatation.

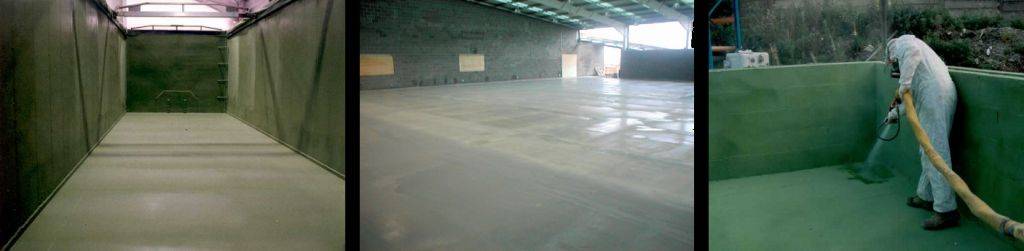

  • Liner for concrete tanks, ponds, lagoons, reservoirs, dykes, irrigation ditches, tunnels, barges, etc.

Description

A spray applied, elastomeric coating that can be put into service in minutes. It provides a flexible, PVC like, monolithic elastomer that is extremely tough, with good physical properties, has a high degree of thermal and hydrolytic stability and excellent water and chemical resistance.

Features:

  • A seamless membrane that can be handled and walked on one minute or less from the time it is sprayed.
  • Hydrophobic and therefore unaffected by damp substrates when creating non-bonded liners. It can be sprayed at temperatures as low as -30°C with minimal effect on tack free time.
  • Due to the almost instantaneous gel of the spray, it can be built up to any thickness in one application including vertical and overhead applications. This eliminates the need for multicoat applications.
  • 100% solids, no solvents, no VOCs.
  • The cured elastomer has a high thermal stability with constant working temperatures up to 130°C and intermittent temperatures up to 160°C.

Applications:

  • Tank linings for primary and secondary containment.
  • Roof coatings for metal decks.
  • Steel tanks, silos and pipes.
  • Hail, bird and traffic protection over polyurethane foam.
  • Encapsulant for styrofoam and other types of floatation.
  • Liner for concrete tanks, ponds, lagoons, reservoirs, dykes, irrigation ditches, tunnels, barges, etc.

General information

Features

A seamless membrane that can be handled and walked on one minute or less from the time it is sprayed

Hydrophobic and therefore unaffected by damp substrates when creating non-bonded liners. It can be sprayed at temperatures as low as -30°C with minimal effect on tack free time

Due to the almost instantaneous gel of the spray, it can be built up to any thickness in one application including vertical and overhead applications. This eliminates the need for multicoat applications

100% solids, no solvents, no VOCs

The cured elastomer has a high thermal stability with constant working temperatures up to 130°C and intermittent temperatures up to 160°C

Uniclass 2015

Pr_35_31_68_64 Polyurethane (PUR) waterproof coatingsPrimary

CAWS

J30/110 Cold applied tanking . . . . . .

J30/130 Cold applied damp proofing . . . . . .

J31/110 Cold deck roof coating

J31/130 Inverted roof coating

Specification data - Polyurethane (PUR) waterproof coatings

Product Reference

Armour Chem

Colour

Consult manufacturer and insert requirements.

Standard product features

Technical properties:

- Liquid:

  • Solids - by weight: 100%.
  • Solids - by volume: 100%.
  • VOC (volatile organic carbon): 0.
  • Mix ratio: 1:1 by volume.
  • Flash point: > 200°C .
  • Resin viscosity at 25°C: 525 cps.
  • Resin SG at 25°C: 1.0 (± 0.02) g/cm³.
  • Iso viscosity at 25°C: 750 cps.
  • Resin SG at 25°C: 1.12 (± 0.02) g/cm³.
  • Cure time, gel: 5 s.
  • Cure time, tack free: 10 s.
  • Recoat: 0–12 hours.

- Cured elastomer:

  • Tensile strength: 23 MPa.
  • Elongation: 400%.
  • Tear strength: 102 N/mm.
  • Hardness: ~55° shore D.
  • Abrasion resistance Taber, H10, 1kg wt, 1000 rev: 35 mg loss.
  • Coefficient of linear thermal expansion: 1.63 x 10-4°C.
  • Water vapour permeability: 0.39 g/m²/24 hours/mm Hg.
