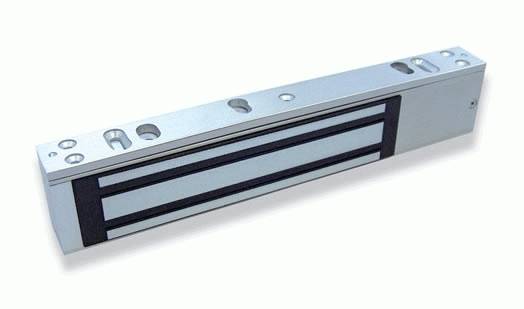

Armlock® 261 And 262
Description

The Adams Rite Door magnet range are direct pull magnets that are used as part of an access control system for electric locking applications.

Benefits:

  • Suitable for use on aluminium, timber and steel doors.
  • Compact case size and clean aesthetics.
  • Maintains a magnetic holding force of at least 250 kg.
  • Strong durability and low maintenance.
  • Fit any aluminium, timber or steel door.
  • CE marked.
  • Has a security pin feature to help prevent unauthorised brackets removal of the magnet from the door frame fixing plate.
  • Available for outward and inward opening door applications.
  • User selectable dual voltage - 12 or 24 V DC.
  • Also available as a double magnet model.
  • Surface or mortice version.
  • Monitoring available (Hall Effect).
  • Built in voltage spike suppressor.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Door-magnets/

General information

Uniclass 2015

Pr_75_30_27_50 Magnetic locksPrimary
Specification data - Magnetic locks

Product Reference

261-000

Surface mounted single direct-pull magnet, 12/24 V DC, non-monitored, suitable for timber or metal door applications.

261-200

Surface mounted double direct-pull magnet, 12/24 V DC, non-monitored, suitable for timber or metal door applications.

261-005

Surface mounted single direct-pull magnet, 12/24 V DC, monitored, suitable for timber or metal door applications.

261-205

Surface mounted double direct-pull magnet, 12/24 V DC, monitored, suitable for timber or metal door applications.

262-005

Mortice mounted single direct-pull magnet, 12/24 V DC, monitored, complete with armature fixings for timber and metal doors.

Accessories

None

261-015

Surface mounted magnets and armature fixings only for 260 series.

261-300

Spare armature plate.

261-400

Armature Housing for Armlock® 261 & 262.

261-700

Adjustable ‘L’ bracket, SAA finish.

261-701

Adjustable ‘L’ bracket only, with cover plate, SAA finish.

261-800

‘L’ and ‘Z’ bracket kit, SAA finish.

261-801

‘L’ and ‘Z’ bracket kit with cover plates, SAA finish.

261-900

Rim armature housing, SAA finish.

268-600

Armlock® 260/280 Series glass armature bracket.
