Armco Crash Barrier Off Highway - Crash Barrier
Verified by manufacturer 2 days ago

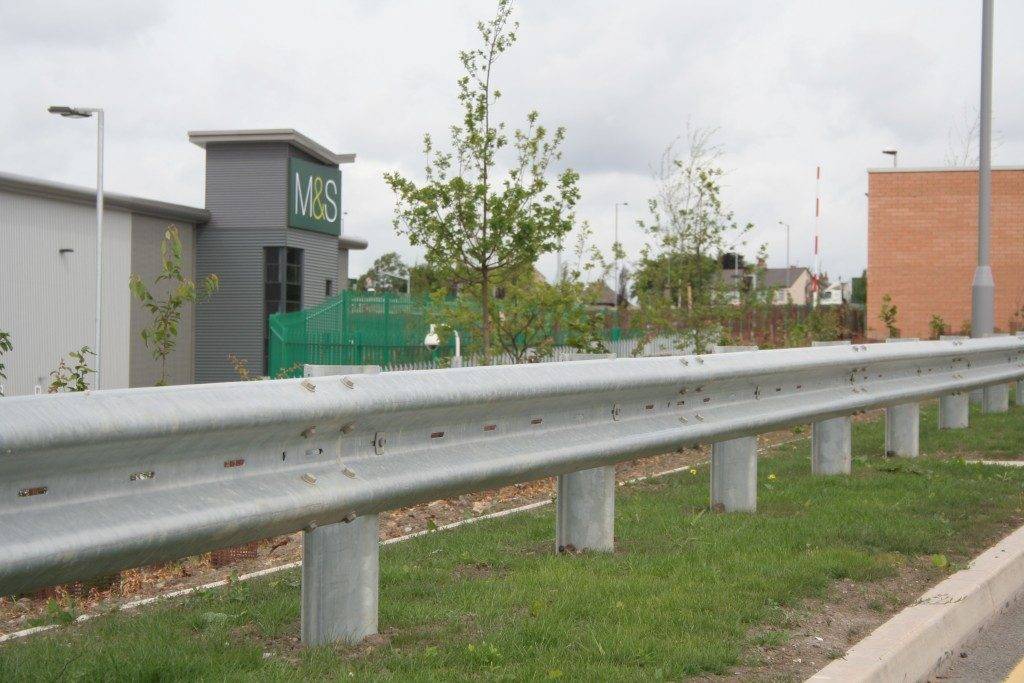

A corrugated steel beam for protecting pedestrians, property and assets in any crash sensitive off-highway environment.
Application
Suitable for:
- Warehousing.
- Factories.
- Goods yards.
- Car parks.
Description

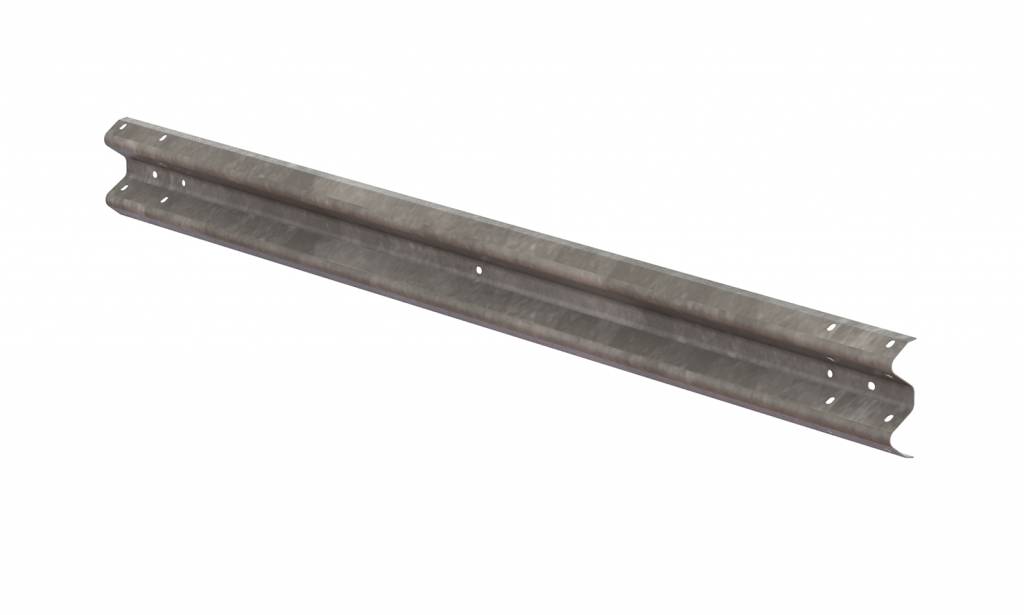

The Armco Crash Barrier is a 3504 mm long, 3 mm thick steel beam with a hot dip galvanized finish.
Beams fixed to posts at 3200 mm or 1600 mm centres, secured with M16 F06 post bolts and up to 8 No. M16 F07 lap bolts.
Also available in a galvanized and polyester powder-coated yellow finish to increase visibility and safety.
Features and benefits:
- Produced in the UK.
- 3200 mm effective length.
- Load tested in accordance with BS EN 1991-1-1:2002, annex B.
- Cost-effective solution for protecting pedestrians, property and assets in any crash-sensitive off-highway environment.
General information
Color | Grey Yellow Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Other |
Length | 3504 mm |
Width | 85 mm |
Height | 310 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q41/170 Vehicle safety fences – metal Q41/170 Vehicle safety fences – metal |
Specification data - Carbon steel safety barrier un-tensioned corrugated beams
Classification data | |
Dimensions | |
Size and profile | Corrugated. |
Length | 3504 mm. Guidance for specification option: 3200 mm effective length. |
Finishes | |
Applied finish | Galvanized. Galvanized and powder-coated, RAL 1021. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % |
Expected Life | Ten year |
