ArmaFlex TuffCoat Pre-Covered Self Adhesive Sheet - Closed-Cell Elastomeric Foam Insulation

Name: ArmaFlex TuffCoat Pre-Covered Self Adhesive Sheet - Closed-Cell Elastomeric Foam Insulation
Brand: Armacell UK Ltd
SKU: pfbrQfU1tyzpiwBgzfGteD

Verified by manufacturer today

Pre-Covered Self Adhesive Sheet 13 mm (Black) - CO-13MM/A-BK

Armacell UK Ltd

Product certifications:

DoP
Certificate type

Flexible, closed-cell elastomeric foam insulation material with built-in Microban® antimicrobial protection.

Jump to:

BOS

+44 (0)161 287 7100 Website

Application

For use on large diameter pipes, ductwork, tanks and vessels in hot and cold water services, chilled water lines, heating systems, air conditioning and refrigeration pipework to provide condensation control, energy conservation and frost protection. Suitable for food manufacturing, hospitals, schools and outdoor use as covering provides protection against UV damage and bird attack. Can be used underground - including mains cold water and ground source heat pump pipes.

Description

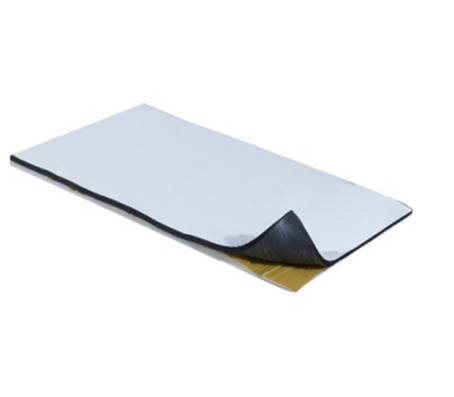

Flexible, closed-cell insulation material with built-in Microban® antimicrobial protection. With polymeric covering for protection against mechanical impact. Manufactured in flat sheet form with a self-adhesive backing.

Features and benefits:

Protection against mechanical impact.
Wash-down waterproof and easy to clean.
In-built Microban® antimicrobial protection.
UV resistant for external use.
No additional painting or covering is required.
Can be used on underground pipework, including mains cold water and ground source heat pumps.

General information

Color	White Black
Finish	Smooth
Material	Foam Rubber Guidance for specification option: Foamed nitrile rubber with polymeric covering.
Shape	Other Guidance for specification option: Sheet.
Length	2000 mm
Width	500 mm
Height	13 mm 19 mm 25 mm
Warranty description	- Manufacturer guidance Please refer to Armacell UK Ltd Terms and Conditions published in the back of the Armacell UK Ltd Product Catalogue.

Uniclass	Pr_80_77_76_58 Nitrile rubber insulationPrimary Pr_80_77_76_29 Flexible elastomeric foam insulation
CAWS	S15/435 Pipeline insulation R11/383 Insulation to internal pipelines R10/39 Insulation to internal pipelines R10/450 Insulation to internal pipelines S90/570 Insulation to pipelines S90/570 Insulation to pipework

SKU Code	CO-13MM/A-BK, CO-19MM/A-BK, CO-25MM/A-BK, CO-13MM/A-WH, CO-19MM/A-WH, CO-25MM/A-WH

Specification data - Nitrile rubber insulation

Standard	To EN 14304.
Form	Duct wrap/ pipe section.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0%.
Thermal conductivity	0.033 W/m·K at 0°C. Guidance for specification option: To EN ISO 8497, EN 12667, EN ISO 13787.
Finish	Smooth.
Fire performance	To EN 13501-1, Class E. Guidance for specification option: EN ISO 11925-2.
Insulation thickness (minimum)	13 mm.
Protection	Polymeric covering.
Accessories	Not required. Loadbearing insulated pipe supports. ArmaFlex adhesive. Tuffcoat tape.
Items to be insulated	Pipework, ductwork and associated equipment.

Service temperature	-50 to 110°C. Guidance for specification option: To EN 14706, EN 14707, EN 14304.
Water vapour diffusion resistance	≥15000. Guidance for specification option: To EN 12086, EN 13469.
Colours	Black.
Tolerances	± 1.5 mm (thickness). ± 1.5–5% (length).
Coverage	9 m².

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Foam Rubber Guidance for specification option: Foamed nitrile rubber with polymeric covering.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
