ArkDeck (Aluminium)
Application

For attaching to roof structures.

Profiles are generally supplied inverted, with the colour side uppermost to protect from scratching during positioning on site.

Manufacturer recommends the provision of layout drawings and loading information prior to specification.

Description

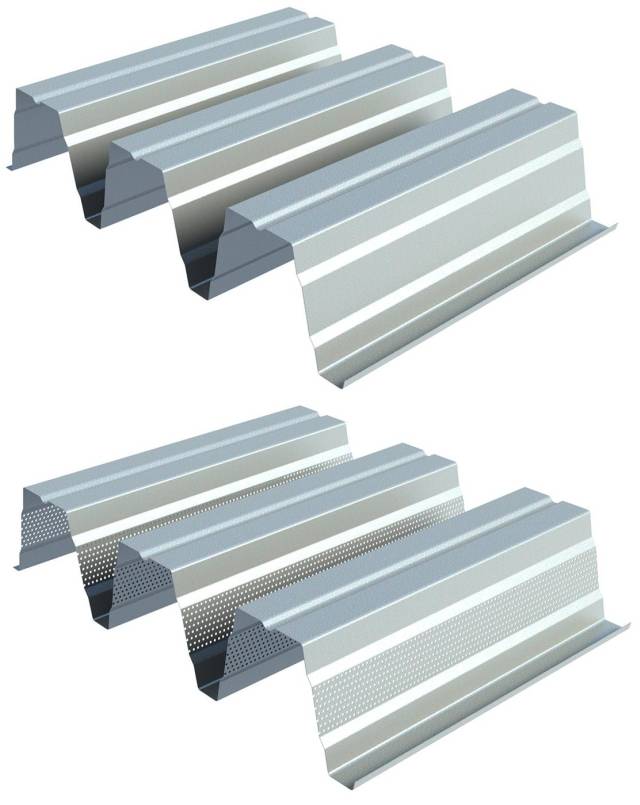

Aluminium structural deck profiles, available perforated or non-perforated.

Features and benefits:

  • Depths range from 32–200 mm.
  • Also available in an steel variant.
  • CE marked, and manufactured in accordance with BS EN 1990, BS EN 1991, BS EN 10346, BS EN 10143 and BS EN 508-1: 2000.

Applications:

For attaching to roof structures.

Profiles are generally supplied inverted, with the colour side uppermost to protect from scratching during positioning on site.

Manufacturer recommends the provision of layout drawings and loading information prior to specification.

General information
Material

Aluminium

Uniclass 2015
Pr_25_71_51_04 Aluminium profiled sheet deckingPrimary
CAWS

G30/110 Metal profiled sheet decking

Specification data - Aluminium profiled sheet decking
Product Reference

ArkDeck (Aluminium)

Type

Non-perforated (solid)

See 'Options' and insert product code.

Perforated (web perforated)

See 'Options' and insert product code.

Length

1.5–13 m. Consult manufacturer and insert requirement.

Thickness

1.25 mm

1.5 mm

Colour/ Finish

Polyester powder-coated, RAL 9010 (bright white)

25 μm.

Curve

Not required

Across profile (nominal), 2 m, site formed

Primary fasteners

A2 stainless steel, 5.5 mm diameter, with 16 mm diameter sealer washer (fastener)

Carbon steel, 5.5 mm diameter, with 16 mm diameter sealer washer (fastener)

Secondary fixings

A2 stainless steel, 5.5 mm diameter, with 16 mm diameter sealer washer (stitcher)

A2 stainless steel, 6.3 mm diameter, with 16 mm diameter sealer washer (stitcher)

Carbon steel, 5.5 mm diameter, with 16 mm diameter sealer washer (stitcher)

Carbon steel, 6.3 mm diameter, with 16 mm diameter sealer washer (stitcher)

Standard product features

Material:

Aluminium.

Technical characteristics:

  • Acoustic performance: BZ: R5T12.5: 15%; DA: R5T8: 35%.
  • Reaction to fire (BS EN 13501-1): Internal surface spread of flame: Class 0 (low risk); reaction to fire classification: A1.
  • Deflection limits: L/200 (positive loads), L/150 (negative loads).

Consult manufacturer for further details.

Product Options

Type:

- Non-perforated (solid):

  • ArkDeck 35.207.1035 - BZ: Depth: 35 mm; pitch: 207 mm; width: 1035 mm.
  • ArkDeck 37.262.1050 - BZ: Depth: 37 mm; pitch: 262 mm; width: 1050 mm.
  • ArkDeck 40.183.915 - BZ: Depth: 40 mm; pitch: 183 mm; width: 915 mm.
  • ArkDeck 42.252.1010 - BZ: Depth: 42 mm; pitch: 252 mm; width: 1010 mm.
  • ArkDeck 50.250.1000 - DA: Depth: 50 mm; pitch: 250 mm; width: 1000 mm.
  • ArkDeck 56.225.900 - BZ: Depth: 56 mm; pitch: 225 mm; width: 900 mm.
  • ArkDeck 73.195.780 - BZ: Depth: 73 mm; pitch: 195 mm; width: 780 mm.
  • ArkDeck 85.280.1120 - BZ: Depth: 85 mm; pitch: 280 mm; width: 1120 mm.
  • ArkDeck 100.275.825 - DA: Depth: 100 mm; pitch: 275 mm; width: 825 mm.
  • ArkDeck 106.250.750 - BZ: Depth: 106 mm; pitch: 250 mm; width: 750 mm.
  • ArkDeck 135.310.930 - BZ: Depth: 135 mm; pitch: 310 mm; width: 930 mm.
  • ArkDeck 153.280.840 - BZ: Depth: 153 mm; pitch: 280 mm; width: 840 mm.
  • ArkDeck 158.250.750 - BZ: Depth: 158 mm; pitch: 250 mm; width: 750 mm.
  • ArkDeck 200.375.750 - DA: Depth: 200 mm; pitch: 375 mm; width: 750 mm.

- Perforated (web perforated):

With perforations to the mid-section of the web of the profile. With tissue faced acoustic batts set within the trough of the deck, the web perforations allow the deck to provide sound absorption. Consult manufacturer for details on perforation pattern availability. The web perforated deck will require filler blocks bedded in sealant to the underside and topside to continue the air barrier/ vapour seal - consult manufacturer for further details.

  • ArkDeck 50.250.1000 PERFO - DA: Depth: 50 mm; pitch: 250 mm; width: 1000 mm.
  • ArkDeck 56.225.900 PERFO - BZ: Depth: 56 mm; pitch: 225 mm; width: 900 mm.
  • ArkDeck 73.195.780 PERFO - BZ: Depth: 73 mm; pitch: 195 mm; width: 780 mm.
  • ArkDeck 85.280.1120 PERFO - BZ: Depth: 85 mm; pitch: 280 mm; width: 1120 mm.
  • ArkDeck 100.275.825 PERFO - DA: Depth: 100 mm; pitch: 275 mm; width: 825 mm.
  • ArkDeck 106.250.750 PERFO - BZ: Depth: 106 mm; pitch: 250 mm; width: 750 mm.
  • ArkDeck 135.310.930 PERFO - BZ: Depth: 135 mm; pitch: 310 mm; width: 930 mm.
  • ArkDeck 153.280.840 PERFO - BZ: Depth: 153 mm; pitch: 280 mm; width: 840 mm.
  • ArkDeck 158.250.750 PERFO - BZ: Depth: 158 mm; pitch: 250 mm; width: 750 mm.
  • ArkDeck 200.375.750 PERFO - DA: Depth: 200 mm; pitch: 375 mm; width: 750 mm.

Primary fasteners:

Rivets may also be specified. End laps of 100 mm. Edge distance of 30 mm (minimum). Side laps of 450 mm centres (nominal).
