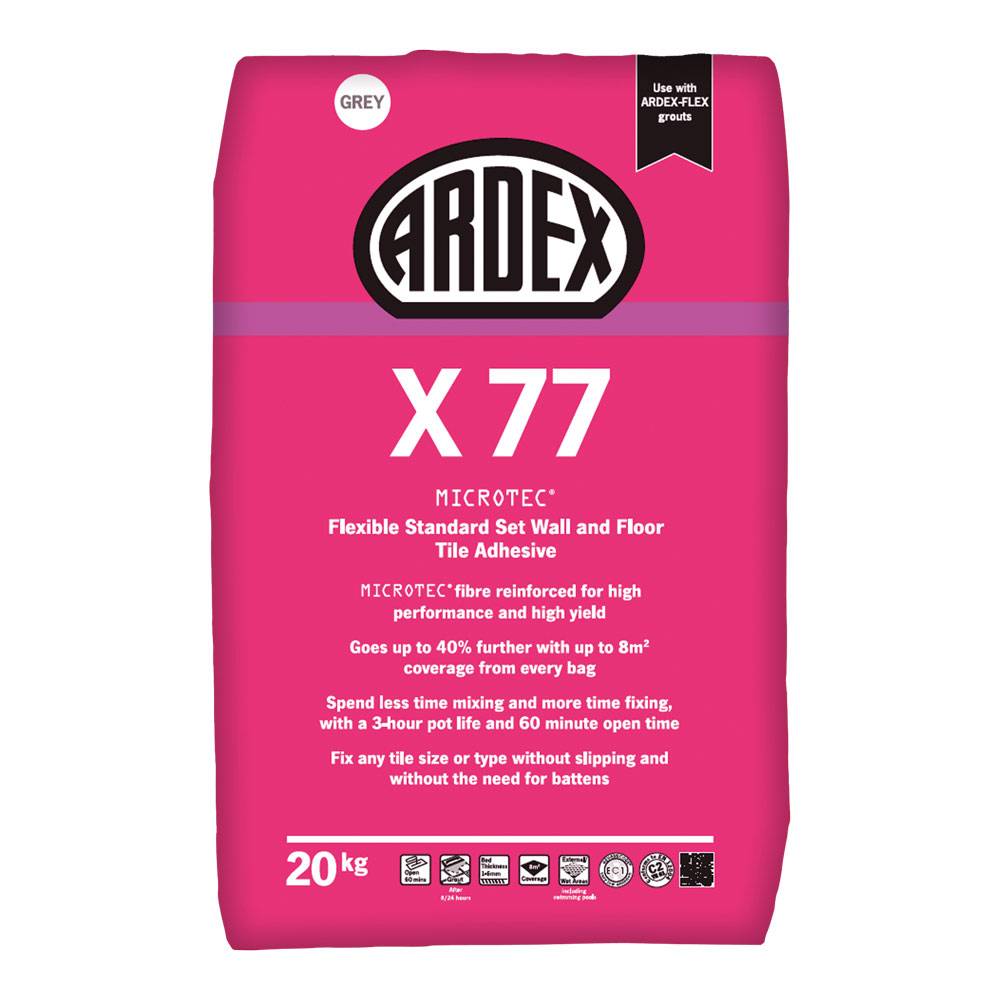

ARDEX X 77 Flexible Wall and Floor Tile Adhesive

Verified by manufacturer 5 months ago

Ardex UK Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

  • EC1plus

    EC1plus

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

MICROTEC Flexible wall and floor tile adhesive with high yield, slump resistant formula.

Jump to:
BOS
+44 (0)1440 714939 Website

Application

Use ARDEX X 77 Flexible Wall and Floor Tile Adhesive for:

  • For fixing ceramic or fully vitrified tiles and other tiles with low porosity, as well as glass and porcelain mosaics, and terrazzo.
  • Suitable for fixing all types of ceramic tiles and mosaics, in internal and external situations, including swimming pools.
  • Adheres strongly to most construction materials such as concrete, cement and sand renders and screeds, heated sub-floors, brickwork and blockwork, gypsum plaster, plasterboard and primed existing ceramic tiled surfaces.

Description

ARDEX X 77 is a cement-based flexible fibre-reinforced adhesive. It has been formulated to allow the fixing of fully vitrified tiles and those with low porosity without the need of an admixture.


The mixed mortar has a slump free consistency with very high initial grab enabling heavy wall tiles to be fixed, thus reducing the need for battens and spacers.


Features and benefits:

  • MICROTEC fibre reinforcement for high performance.
  • Advanced slump resistance, double that of 'T' classified adhesives, ideal for fixing large format wall tiles.
  • Achieves an extended open time of up to 60 minutes, twice the requirement of BS 12004, and double the slump resistance of ‘T’ classified adhesives.
  • Three hour pot life.
  • High yield – 6.3 m² at 3 mm.
  • Suitable for underfloor heating.
  • Will adhere strongly to most construction materials although it must be used with ARDEX P 51 Primer when fixing to plaster and ARDEX P 82 when fixing to smooth impervious surfaces including existing ceramic tiling, internal asphalt, terrazzo, sound and well adhered paint coatings and old adhesive residues. ARDEX P 4 - rapid drying primer, applied to concrete, screeds, terrazzo and ceramic tiles and can be used externally.
  • The BS EN 12004 C2 TE S1 designation classifies the adhesives as an "improved cementitious adhesives with additional characteristics, reduced slip and extended open time."

General information

Color

Grey

White

Material

Cementitious

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_20_31_02_89 Tile adhesivesPrimary

CAWS

M41/110 Terrazzo tiling

M41/110 Terrazzo tiling

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M40/110 Tiling to

Product range

Swimming pool construction, tiling, waterproofing and surrounds.
Tile Adhesives
Swimming Pool Floor and Wall Build-Up / Tile fixing

Specification data - Tile adhesives

Standard

To BS EN 12004-1.

Class

C2 TE S1.

Open time (minimum)

60 minutes.

Guidance for specification option:

Pot life: Three hours.

Adjustment time: 30 minutes.

Grout after: Walls: 8 hours; floors: 24 hours.

Colour

Grey.

White.

Fixing

Consult ARDEX’s technical literature for details and fixing guidance.

Sustainability data

Country of product manufacture

United Kingdom

Material

Cementitious

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.64 kg CO₂ eq/kg

Recyclability

For disposal considerations see Health and Safety Datasheet at www.ardex.co.uk.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC
-

2

Third party certifications

EPD

EPD

ARDEX X 77 EPD

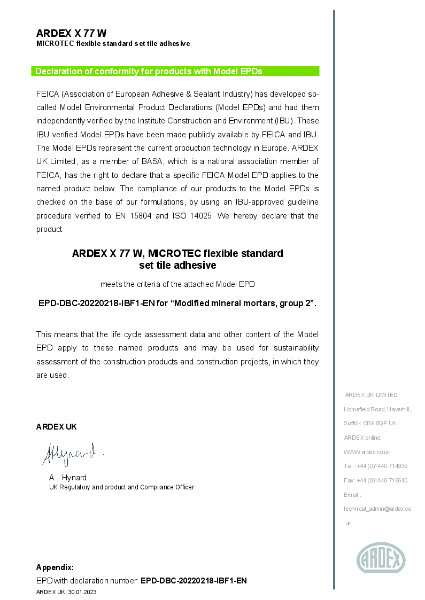

EC1plus
