Application

  • For internal and external use.
  • Suitable for underfloor heating.

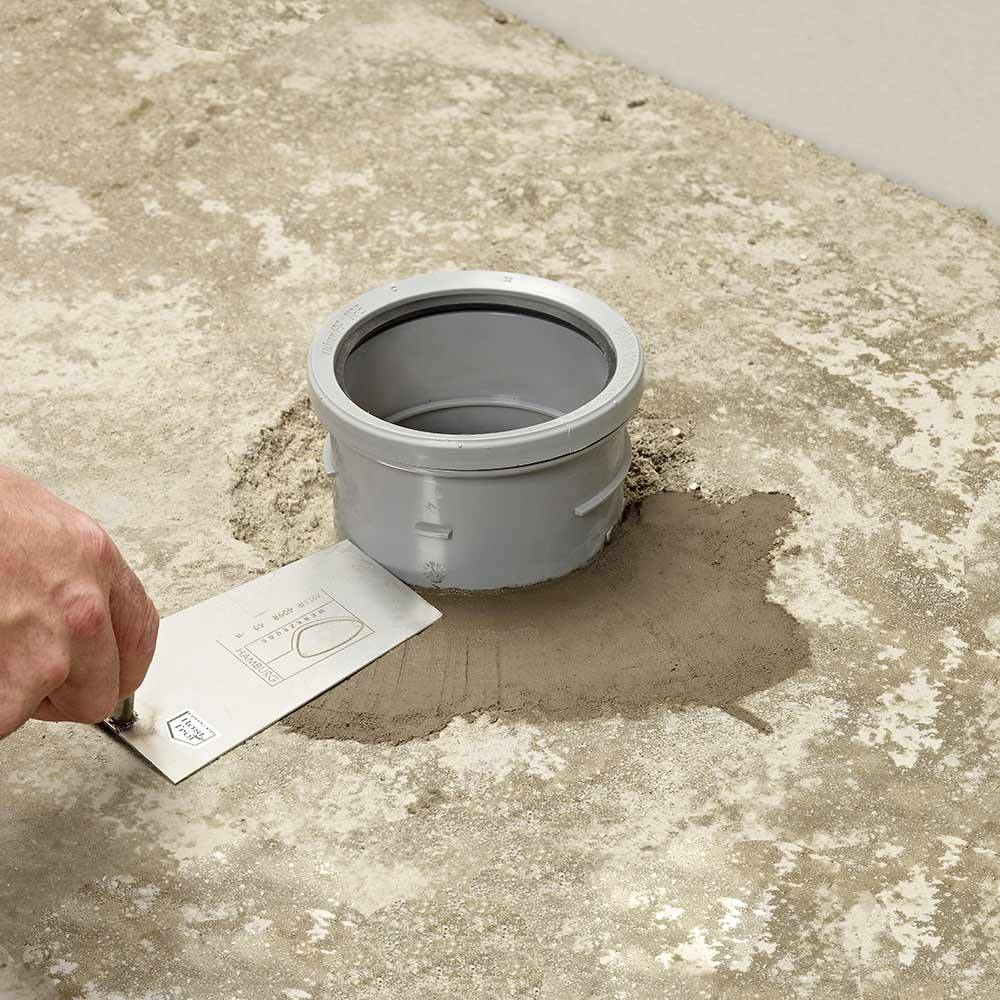

  • For infilling holes around fittings and for patch work on wall and floor areas.
  • For repairing stair treads and risers.
  • Ideal for the rapid repair of damaged concrete.
  • Also suitable for forming ramps, coves patching around fittings/ pipework, and filling cracks and gaps.
  • Ideal for patch repairs prior to the application of suitable damp proof membranes.

Description

A rapid setting and hardening, slump-free mortar. The mortar sets and hardens rapidly to give a repair of exceptional strength and hardness. The mixed mortar sets after 20 minutes and can be trafficked after only two to three hours at 20°C. Ready to receive floor coverings that are not sensitive to moisture, such as ceramic tiles, after 24 hours at 20°C.


Features and benefits:

  • Rapid hardening – walkable in two to three hours.
  • To produce gradients for ramps.
  • To smooth wall and floor areas from 2–30 mm thick.
  • Easy to smooth and float.
  • Stress and crack free.
  • Wearing surface in lightly trafficked areas.
  • Freeze, thaw and salt resistant.
  • Sets within 30 minutes.
  • Slump free – ideal for wall and floor repairs.
  • Apply from 2 mm to 50 mm thick.
  • Easy to smooth and float.
  • Shrinkage compensated, and crack free.


Technical properties:

  • Compressive strength (after one day/ seven days/ 28 days): 10.0/ 15.0/ 20.0 N/mm².
  • Tensile bending strength (after one day/ seven days/ 28 days): 2.0/ 4.0/ 6.0 N/mm².

General information

Material

Cement

Guidance for specification option:

Polymer modified mortar.

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

-

Manufacturer guidance

Apply from 2 to 50mm

Warranty description

Ten year

Uniclass

Pr_20_31_53_15 Concrete repair mortarsPrimary
Pr_20_31_16_80 Small-area repair concretes

CAWS

C42/310 Repair mortar

C41/530 Proprietary mortar repairs

Product range

Concrete Repair Mortar
Levelling Compounds / Refurbishment / Renovation
Swimming Pool Floor and Wall Build-Up / Screed and Render

Specification data - Concrete repair mortars

Standard

To EN 1504-3 R2.

Mortar type

Cement based polymer modified.

Performance requirement class

R2.

Reaction to fire

A1 / A1fl.

Application thickness

2—50 mm.

Coverage

4 m² at 2 mm thickness.

Guidance for specification option:

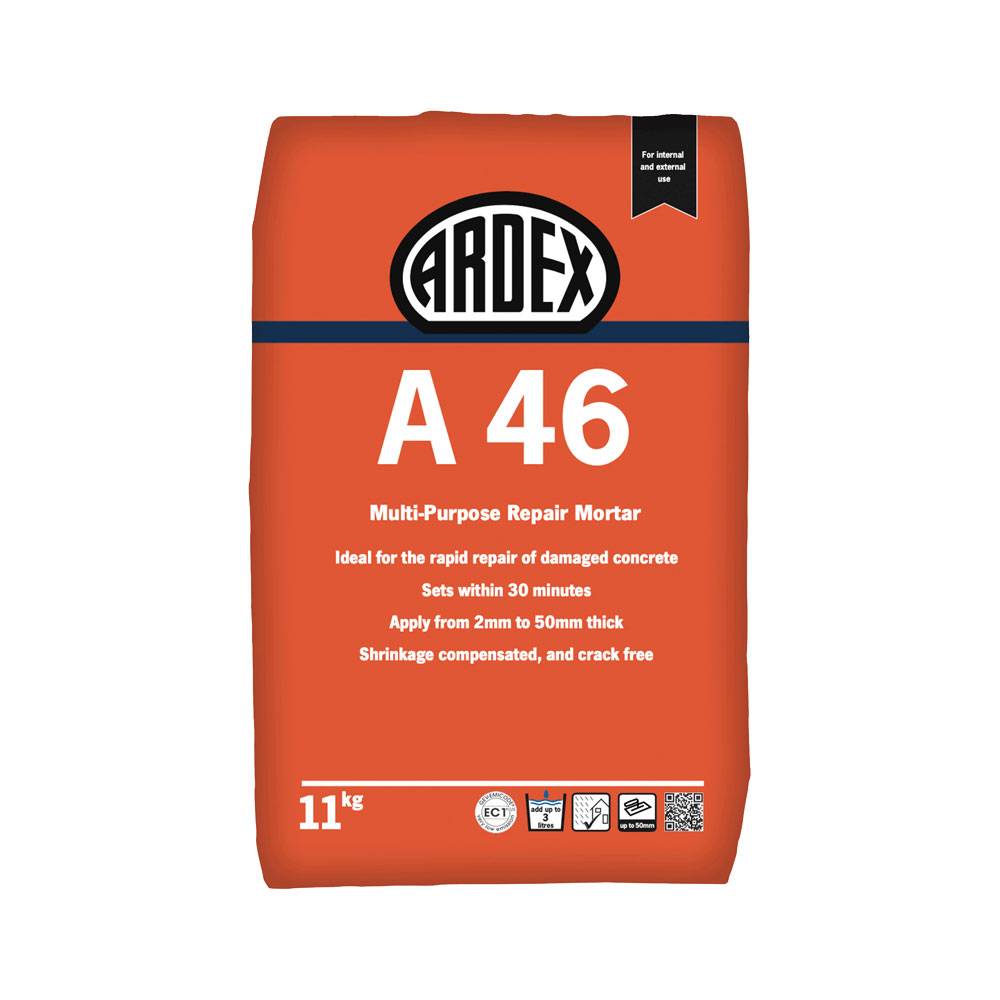

11 kg bag.

Setting time

30 minutes.

Volatile organic compounds (VOC) emission

EMICODE EC1 Plus (Very low Emission).

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.49 kg CO₂ eq/kg

Recyclability

For disposal considerations see Health and Safety Datasheet at www.ardex.co.uk.
