Architectural Style Bottle Filler / Drinking Fountain - Halsey Taylor HTHBWF-OVLEBP-I

MIW Water Cooler Experts

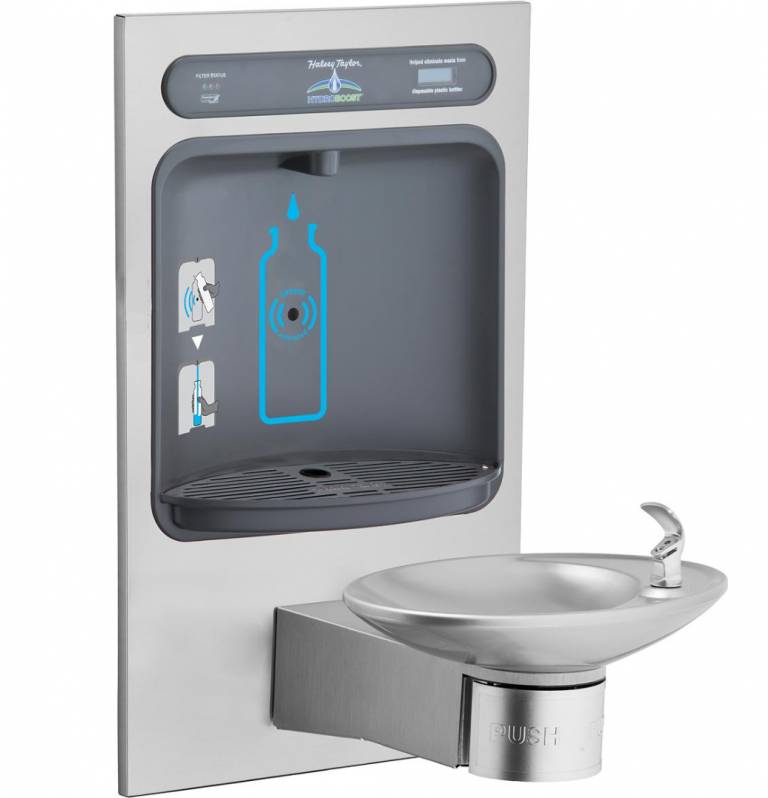

HydroBoost bottle filling station with single architectural drinking fountain, for mounting in the wall (recessed).

Jump to:
+44 (0)1207 572 000 www.miw.co.uk
Application

Suitable for any high traffic indoor areas, including schools, universities, hospitals, gyms, government buildings, airports and hospitality centres.

Description

HydroBoost bottle filling station with single architectural drinking fountain, for mounting in the wall (recessed). Filtered and non-refrigerated.

Provides a low carbon alternative, complete with integrated, built-in rapid automatic bottle refill station and a traditional drinking fountain. The unit takes up minimal space, yet delivers maximum performance, reducing water usage by 40% due to the bubbler tap that allows users to control water flow. The rapid bottle refill will fill up to 680 x 500 ml bottles per hour. A ‘Green Counter™' tracks the unit’s usage to see how many single-use plastic bottles have been prevented being used.

The unit is WRAS-approved, which means that all elements of the HydroBoost adhere to all Government water safety guidelines. The touchless sensor activation provides a user-friendly interface and also reduces the potential for wastewater through user error, as well as removing the opportunity for vandalism - there are no external moving parts to break. The laminar water flow prevents splashback, providing a cleaner user experience. Silver ion antimicrobial protection helps stop the development of mould and mildew on plastic-coated areas of the unit, ensuring a more hygienic drinking area. Real drainage removes the problems associated with a build-up of standing water.

The 3000-gallon filter (with LED filter replacement monitor) is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odour reduction, making sure that water quality is high and that it meets the highest standards of cleanliness. Each unit comes with a 12-month filter pre-installed. Users with limited or different abilities will also use the unit with ease, as it includes an easy to operate push bar mechanism, accredited by the strict standards of the Americans with Disabilities Act (ADA) and is compliant with the Equality Act.

The drinking fountain and bottle filler are both easy to operate, with an automatic start/ stop sensor for filling bottles, and a sensitive self-closing push button that does not need to be twisted or turned. It includes a satin finish non-corrosive stainless steel casing, attached to a corrosion-resistant galvanized steel mounting frame. The high quality of these components not only protects the drinking fountain from everyday wear and tear, but also maintains the unit's stylish and attractive appearance under heavy daily use.

Features and benefits:

  • Mechanically activated bubbler continues to supply water in event of service disruptions.
  • Touchless, sensor-activation, designed for easy use.
  • LED filter status indicator for when filter change is necessary.
  • Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mould and mildew.
  • Real drain system eliminates standing water.
  • Double Bubbler™ which projects two separate streams that converge to form a fuller drink.
  • WRAS and BREEAM approved, and Greenspec® listed.
  • Manufacturer provides a one-year warranty on electrical components and water system.

Applications:

Suitable for any high traffic indoor areas, including schools, universities, hospitals, gyms, government buildings, airports and hospitality centres.

General information
Finish

Satin

Material

60% recycled stainless steel

Uniclass 2015 Water coolers (Pr_40_70_15_96)
Specification data
Product Reference

Halsey Taylor HTHBWF-OVLEBP-I

Accessories

Not required

55898C

WaterSentry® Plus replacement filter (bottle fillers).

HTOVLAPR

Cane apron (grey).

WSF6000R-2PK

WaterSentry® fresh 6000 CTO filter replacement (two pack).

Standard product features

Size (h x w x d):

881 x 502 x 440 mm.

Weight:

54 kg.

Material:

60% recycled stainless steel.

Finish:

Satin.

Fixing:

Wall mounted (in wall frame/ plate). Wall security brackets included.

Water temperature:

Non-refrigerated, ambient.

Drain:

McAlpine 32 mm (1 1/4") drain.

Bubbler:

Double Bubbler™.

Activation:

Electronic bottle filler sensor with mechanical front bubbler button.

Rated power input:

6 W.

Nominal voltage:

230 V (50 Hz).
