Application

Can be customised to suit any project.

Description

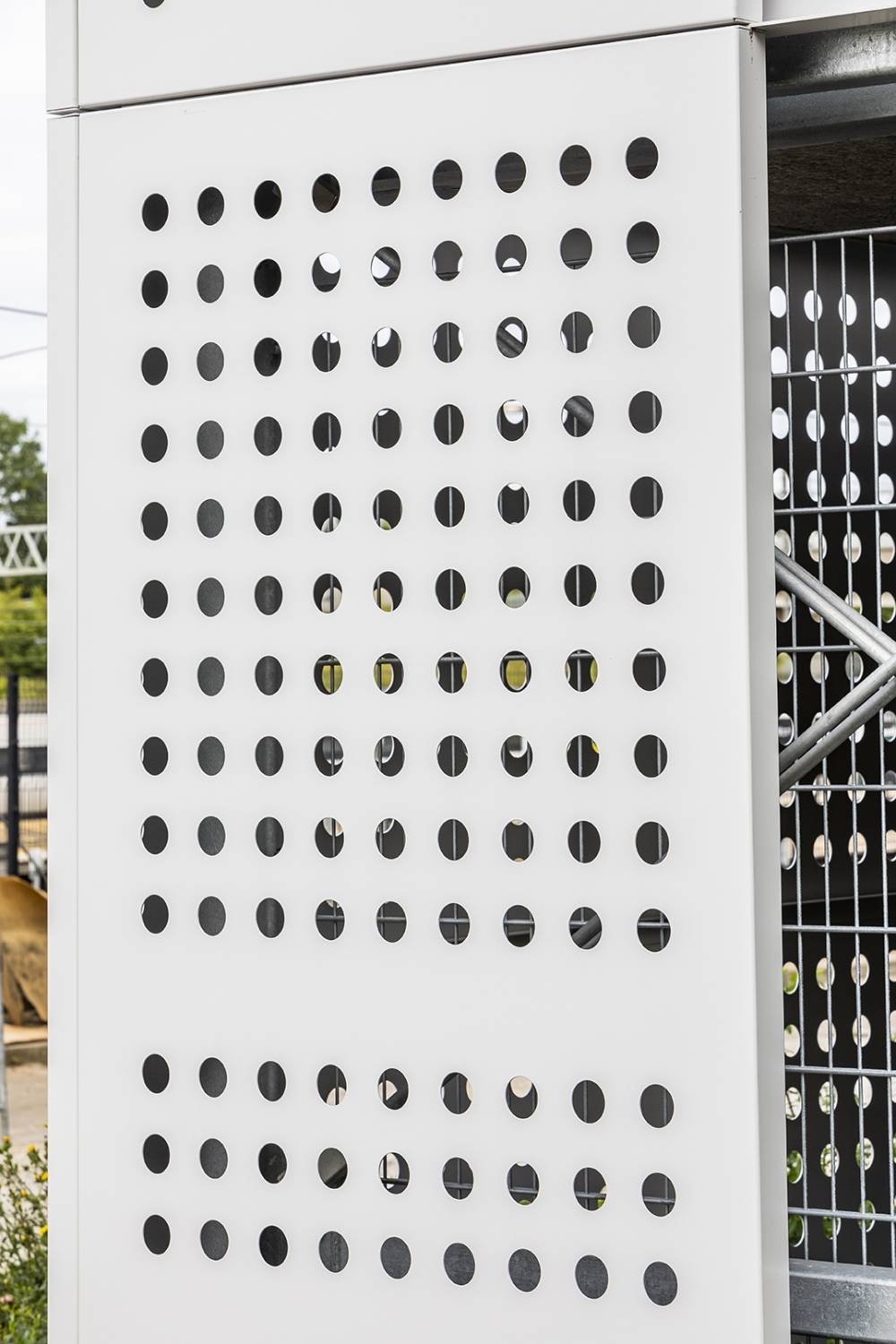

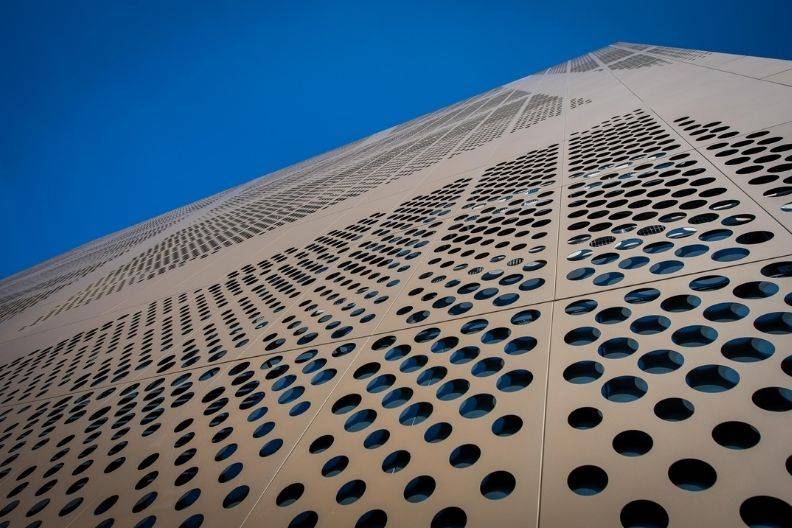

Perforated architectural panels can be created in aluminium or Corten steel. Each aluminium or Corten façade panel is perforated according to the custom design of the façade. Installation is fast and efficient thanks to Maple's engineered bracket design.


Each perforated façade panel can be colour-treated to meet the concept design theme – and all panels are bi-metallic corrosion protected.


Panel Construction:

Aluminium sheet, grade and thickness dependent of project location and wind loadings. Panels have nominal 50mm returns to form the tray. Perforation pattern project specific – manufacturer suggests that hole sizes are at least 10x the thickness of the sheet to reduce the risk of whistling (i.e. 3mm sheet = 30mm min. hole size) – this is an indication only.


Vertical Support Construction:

Façade mullions, made of 6063 T6 extruded aluminium installed to suitable fixing grounds by purpose-designed bracketry.


Bracket Construction:

Laser cut and folded brackets, designed and engineered to suit the project location, wind loadings and tolerances, manufactured from s275 (or superior) mild steel, and installed direct to suitable fixings grounds.


Panel Colour/ Finish:

Specific for each project – polyester powder-coated 60µm or anodized 25µm.


Vertical Support Colour/ Finish:

Specific to each project – polyester powder-coated 60µm or anodized 25µm.


Bracket Colour/ Finish:

Specific to each project – hot dip galvanized or polyester powder-coated 60µm.

General information

Color

Other

Available in RAL / BS standard colour range.

Finish

Powder-coated

Anodized

Material

Aluminium

Grade J57S, 5251 and 1050 aluminium sheet.

Corten

Shape

Bespoke.

Square

Rectangle

Other

Curved.

Length

Various sizes and shapes available, contact manufacturer.

-

Width

Various sizes and shapes available, contact manufacturer.

-

Height

Various sizes and shapes available, contact manufacturer.

-

WarrantyDescription

Three year

Various sizes and shapes available, contact manufacturer.

Uniclass

Pr_25_57_56_61 Perforated metal meshPrimary

CAWS

H20/10 Sheet cladding

H20/150 Sheet cladding

H92/120 Rainscreen cladding

Product range

Architectural Façades

Specification data - Perforated metal mesh

Material

Fin material.

Aluminium.

Stainless steel.

Steel.

Zinc.

Finish

Polyester powder coated.

Colour

Insert requirement. Available in RAL / BS standard colours.

Dimensions

-

Hole size (maximum)

25 mm.

Pitch

50 mm.

Square pitch.

Materials

Façade material.

Grade 6063 T6 folded Aluminium profiles.

Grade 6063 T6 curved and folded Aluminium profiles.

Panel Type

Rectangle.

Material

Brackets material.

Galvanized mild steel spigot bracket.

Fixed directly to the structure with mechanical fixings.

Profiled aluminium bracket.

To be free issued to curtain walling contractor for connection to curtain walling mullions.

Finish

Brackets finish.

Polyester powder coated.

To 40 μm. Available in RAL / BS standard colours.

Fastener

A2 stainless steel, with bi-metallic corrosion protection.

Construction

Grade J57S, 5251 and 1050 aluminium.
