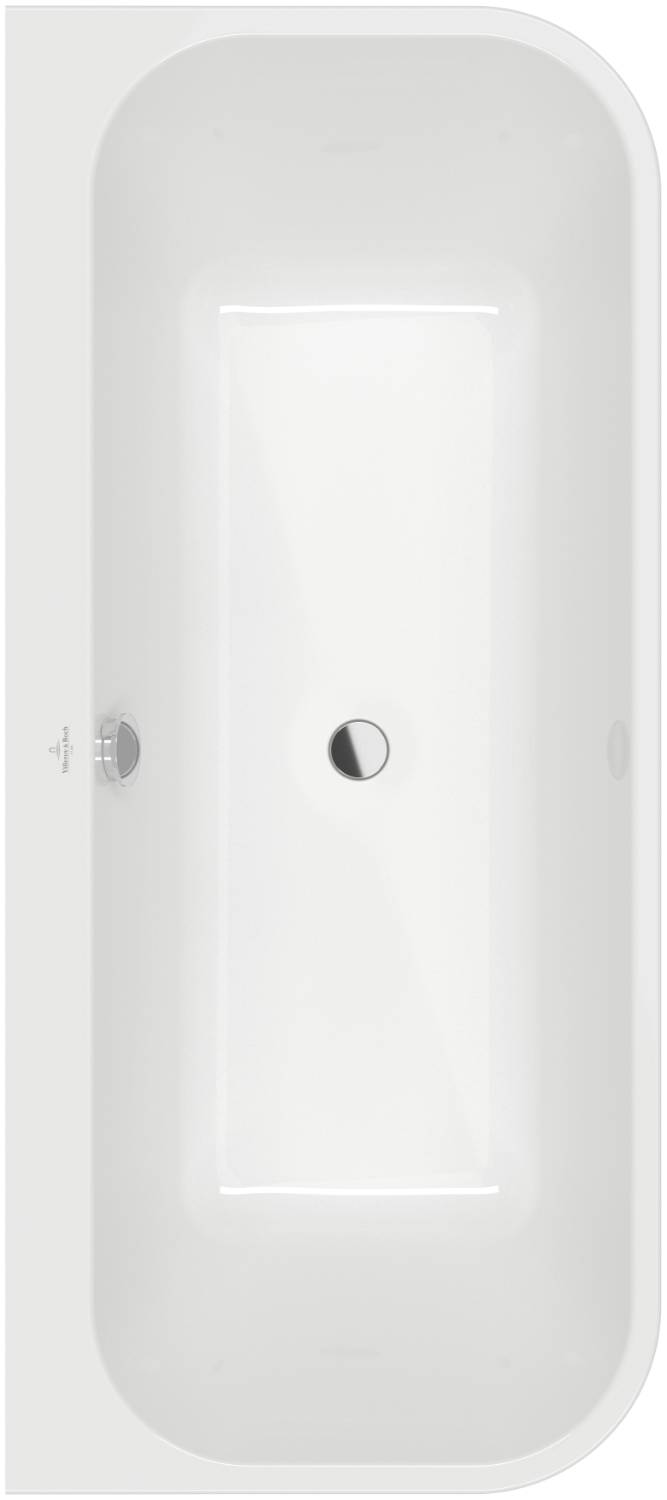

Architectura Wall-Facing Bath UBA170ARE9CS00V
Verified by manufacturer 8 months ago
Wall-facing bath.
Application
For bathrooms.
Description
Wall-facing acrylic bath.
Features and benefits:
- Capacity: 136 L (including one person).
- Diameter: 52 mm.
- Bath panel is the same colour as the bath.
Note: central positioning of the tap fitting is not possible.
General information
Color | White |
Finish | Gloss |
Material | Acrylic |
Shape | Rectangle |
Length | 1700 mm |
Width | 750 mm |
Height | 420 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Materials | Acrylic. |
Colour | White alpin. |
Size | 1700 x 750 mm. |
Volume to overflow (maximum) | 136 L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
