NBS Source
Compare variants

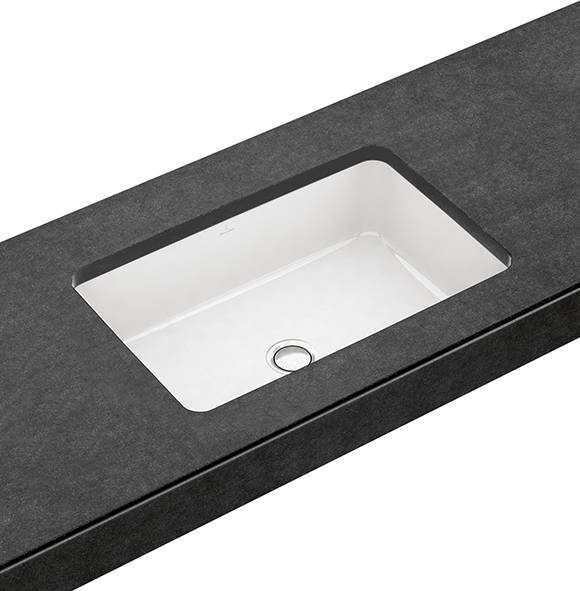

Architectura Undercounter Washbasin 417760

41776001

Villeroy & Boch AG Variant:

Rectangular undercounter washbasin.

Jump to:
+49 (0) 6864 81 1500 Website

Application

For mounting under countertops.

Description

Rectangular, undercounter washbasin.


Features and benefits:

  • Outside surface glazed.
  • Sanitary ceramics.
  • The hole for the washbasin can only be cut out using the original washbasin because tolerances of several millimetres are possible.
  • Fastening set included.
  • Complies with EN 31 and EN 14688.
  • Optionally available: Outlet valve with ceramic cover.

General information

Color

White

Finish

Gloss

Material

Ceramic

Shape

Rectangle

Length

540 mm

Width

340 mm

Uniclass

Pr_40_20_96_18 Countertop washbasinsPrimary

CAWS

N13/30 Washbasins

N13/335 Washbasins

Specification data - Countertop washbasins

Standard

To EN 14688 and EN 31.

Form

Vanity top (under-mounted).

Materials

-

Body

Ceramic.

Finish and colour

White alpin, gloss.

Size

540 x 340 mm.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Rear overflow hole.

Waste

Bottom waste outlet. No chainstay hole.

Integral accessories

Closable valve 6806 00, Closable valve 6810 00, Push-to-open valve 8L03 34; Easy Access siphon 9219 88.

Weight

21.2 kg.

Accessories

None.

Outlet valve with ceramic cover.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
OBJ
-

1

1

SketchUp
-

1

1

3Ds Max
-

1

1

Download now from NBS National BIM Library

Similar products from Villeroy & Boch AG

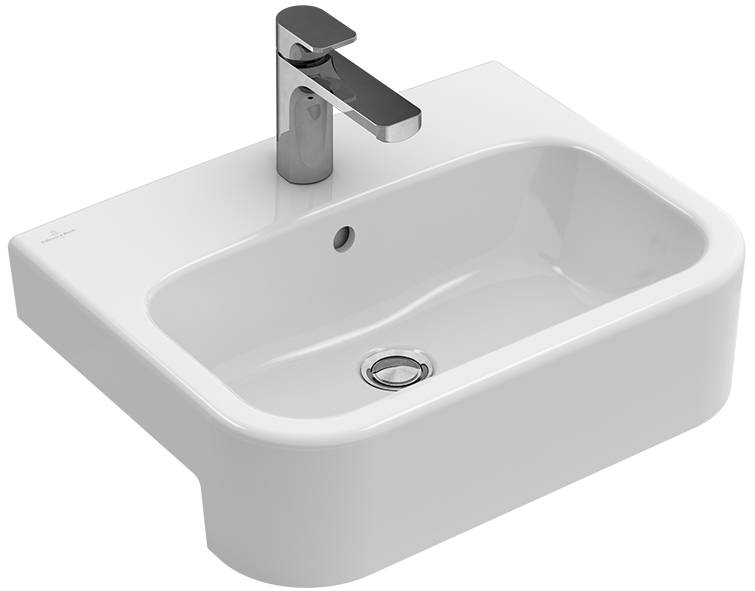

Architectura Semi-recessed Washbasin 419055
