Architectura Three-hole Basin Mixer TVW103108110
Verified by manufacturer 9 months ago

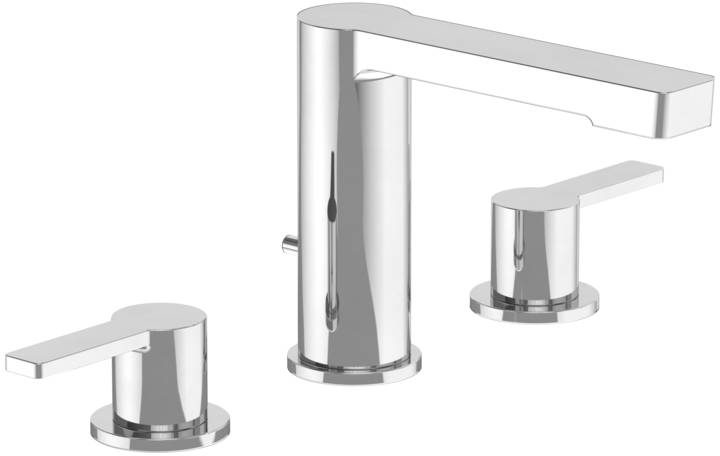

Three-hole, single lever basin mixer.
Application
For basins.
Description
Surface-mounted, three -hole single lever basin mixer. Includes pop up waste and cartridge with ceramic discs.
Features and benefits:
- Air Plus - An aerator enriches the water with air for a particularly soft, water-saving jet.
- Aqua Smart - Sustainable, limited water flow: saving water without sacrificing on performance.
- Smart Pressure - Constant water flow rate for washbasin mixers regardless of pressure fluctuations in the piping system.
- Easy Clean - Longer service life: optimum limescale removal by simply rubbing nozzles and aerators clean.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Length | 182 mm |
Width | 134 mm |
Height | 50 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Mixer taps
Form | Mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 4.1 L/ min. |
Integral accessories | Pop-up waste. |
Spout length | 182 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 Revit | - | 1 |
 3Ds Max | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 ARCHICAD | - | 1 |
