Arche Granite Setts
Application

Suitable for vehicular trafficked and pedestrian areas.

Please note that colour variations and markings are characteristic of natural stone.

Description

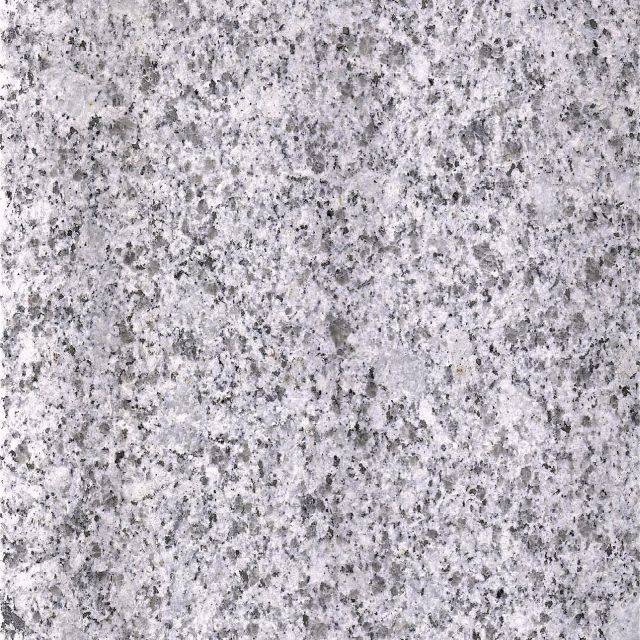

Sawn granite paving setts from Portugal, with a grey and white background and black inclusions.

Features and benefits:

  • Hard-wearing, strong and durable.
  • Attractive appearance.
  • Available in three finishes.
  • Has non-slip/ skid properties.
  • Can be used as a standalone product, or mixed with other colours/ products from the Marshalls range.
  • CE marked, and manufactured in accordance with BS EN 1342: 2012.

Also available as standard paving, tactile paving, bespoke masonry and street furniture – consult manufacturer for details.

Applications:

Suitable for vehicular trafficked and pedestrian areas.

Please note that colour variations and markings are characteristic of natural stone.

General information

Size

50 x 100 x 50 mm

80 x 160 x 80 mm

100 x 200 x 100 mm

150 x 300 x 150 mm

Finish

Blasted

Flamed

For improved slip resistance.

Polished/ honed

Uniclass 2015

Pr_25_93_60_57 Natural stone settsPrimary

CAWS

Q24/132 Natural stone sett paving with bound base

Q24/133 Natural stone sett paving overlay

Q25/330 Natural stone setts

Q25/51 Stone cobble paving

Specification data - Natural stone setts

Product Reference

Arche Granite Setts

Size

50 x 100 x 50 mm

80 x 160 x 80 mm

100 x 200 x 100 mm

150 x 300 x 150 mm

Finish

Blasted

Flamed

For improved slip resistance.

Polished/ honed

Standard product features

Technical characteristics:

  • Tolerances (to BS EN 1342): Class 2.
  • Abrasion resistance (to EN 14157): 17.1 mm.
  • Density (to EN 1936: 2006): 2627 kg/m³.
  • Open porosity (to EN 1936: 2006): 0.8%.
  • Compressive strength (to EN 1926: 2006): 198 MPa.
  • Water absorption (to EN 13755: 2008): 0.27%.
  • Flexural split/ breaking (to EN 12372: 2006): 14.50 MPa.

Product Options

Size:

Bespoke sizes can be accommodated on request - consult manufacturer for details.
