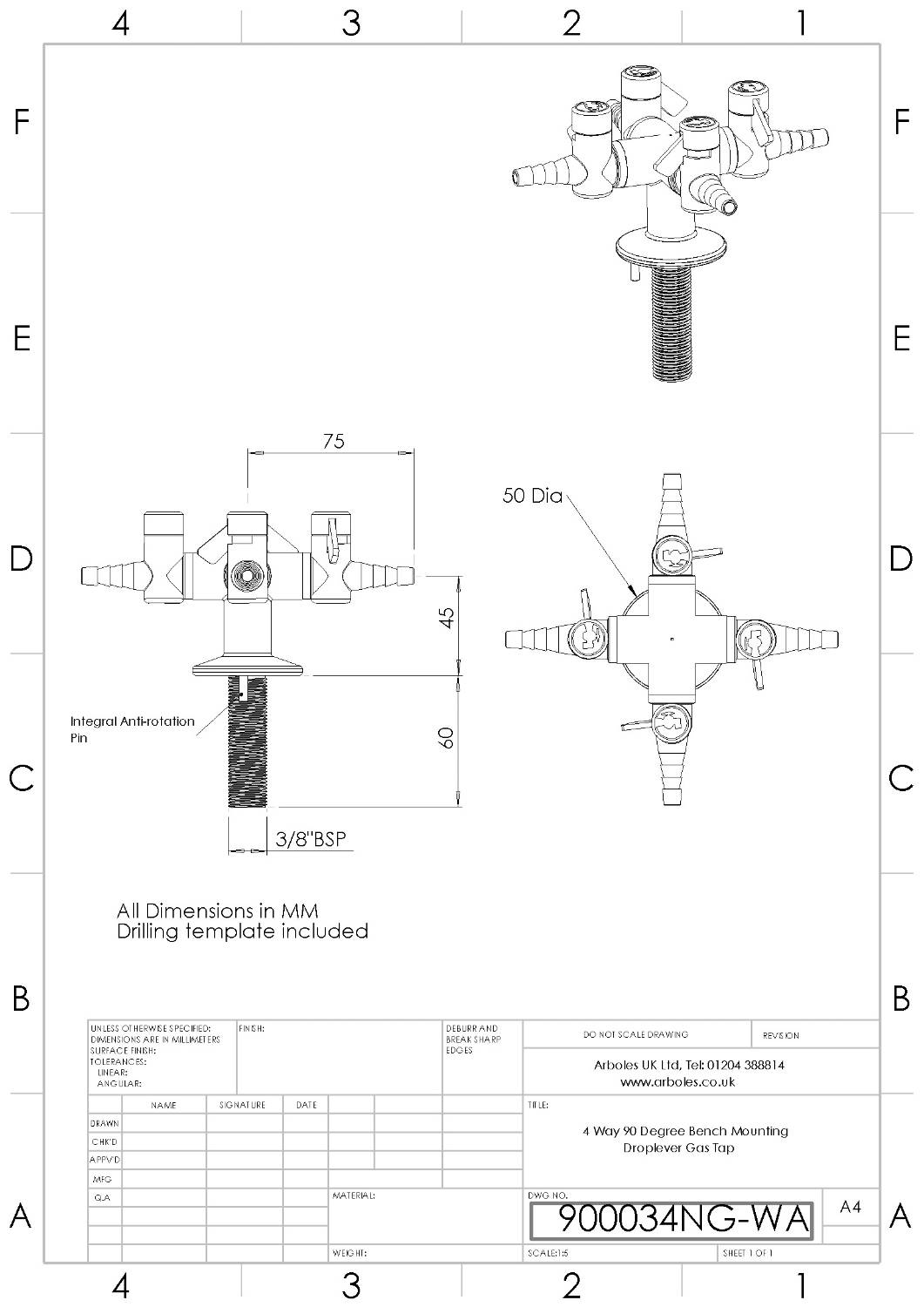

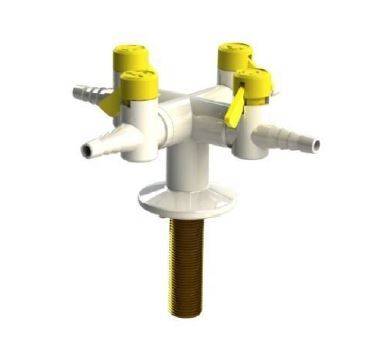

Arboles UK Four Way Bench Mounted Drop Lever Gas Tap
Verified by manufacturer 7 months ago

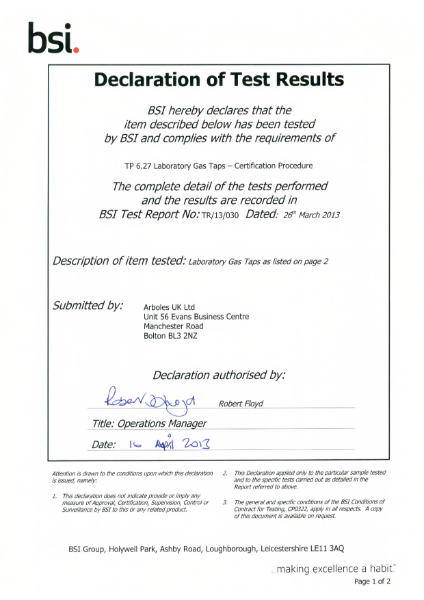

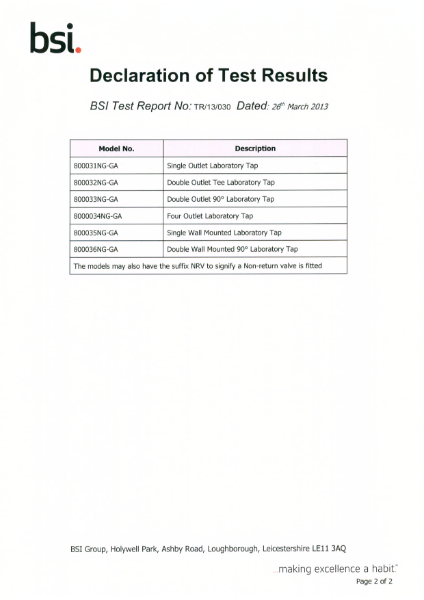

BSI Kitemark
Certificate type
Four-way high visibility drop lever gas tap fixed serrated nozzle and integral anti-rotation pin.
Application
Standard drop lever laboratory gas tap for bunsen burner type applications. Suitable for both natural and LPG gas applications.
Description
Four-way high visibility drop lever gas tap fixed serrated nozzle. Integral anti-rotation pin.
The drop lever allows for easy visual indicator as to whether the tap has
been left in the 'on' position.
Features and benefits:
- Construction: All brass body, Rilsan plastic coated, white (RAL 9016). Identification coding to DIN 13792.
- Connection and mounting: 3/8” BSP male flat ended shank x 60 mm long with back nut.
- Standard anti-rotation base with location pin. Two mounting holes 17 mm and 5 mm diameter are required through the work surface, template enclosed.
- Service: Natural or LPG gases.
- Pressure and Flow: Maximum work pressure 20—25 Mbar.
- Flow Rate @ 20 Mbar = 1 Cubic metre/hour per nozzle.
- British Gas/BSI certified.
General information
Color | White Guidance for specification option: RAL 9016. |
Finish | Coated Guidance for specification option: Rilsan plastic coated. |
Material | Brass |
Shape | Other |
Width | 150 mm |
Height | 75 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture |
Specification data - Laboratory gas taps
Mounting | Bench. |
Number of outlets | Four. |
Nozzles | Fixed. |
Operation | Lever. |
Colour coding | To BS EN 13792. |
Inlet connection | 3/8” BSP male flat ended shank x 60 mm long with back nut. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirement or omit. |
Mounting | Standard anti-rotation base with location pin. Guidance for specification option: Two mounting holes 17 mm and 5 mm diameter are required through the work surface, template enclosed. |
Base | ∅50 mm. |
Pressure | 20—25 Mbar. |
Flowrate | 1 cubic metre/ hour per nozzle. |
Height | 75 mm (overall); 45 mm (nozzle). |
Projection | 150 mm. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature

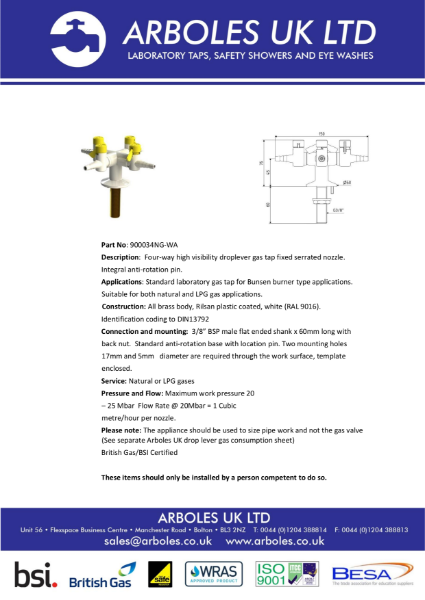

Arboles UK Four Way Bench Mounted Drop Lever Gas Tap
