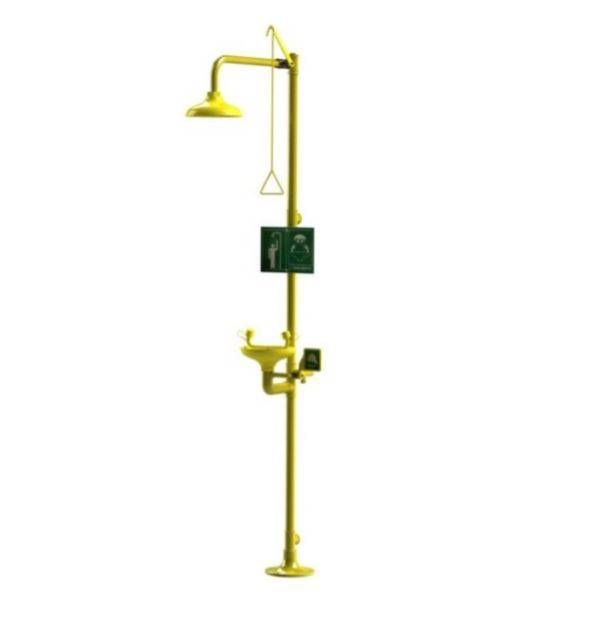

Arboles UK Floor Mounted Emergency Combination Shower & Eyewash

Verified by manufacturer 4 months ago

Arboles UK Ltd

Floor mounting combination emergency drench shower and eyewash.

Jump to:
+44 (0)1204 388814 Website

Application

Emergency drench shower and eye wash suitable for floor mounting.

Description

Floor mounting combination emergency drench shower and eyewash.


Features and benefits:

  • Galvanized steel piping, brass valves plated with ABS plastic shower head and bowl assy.
  • Robust rilsan plastic coating in yellow (RAL 1016)
  • Water Inlet: G1 1/4” BSP female.
  • Inlet pressure: Recommended 2 bar/ minimum 1.5 bar/ maximum 8 bar. Flow rate: Shower 110 L/min, Eyewash 22 L/min regulated.
  • Conforming and certified to ANSI/ SEA Z358.1-2009, DIN 12899-3-2007 and EN15154-1-2006.

General information

Color

Yellow

Guidance for specification option:

RAL 1016.

Finish

Coated

Guidance for specification option:

Rilsan plastic coating.

Manufacturer guidance

As per manufacturer.

Material

Steel

Brass

Acrylonitrile butadiene styrene (ABS)

Shape

Other

Width

605 mm

Height

2515 mm

Warranty description

Five year

Uniclass

Pr_40_20_27_28 Eye-wash fountainsPrimary

CAWS

N10/130 Laboratory furniture

N13/351 Wash fountains

N13/375 Shower units

N13/41 Shower heads

N13/40 Shower units

Specification data - Eye-wash fountains

Units

-

Form

Floor mounting combination emergency drench shower and eyewash.

Stations

Single user.

Water supply

Umbrella spray.

Operation

Manual.

Materials

-

Body

Galvanized steel piping, brass valves plated with ABS plastic shower head and bowl assy.

Finish and colour

Rilsan plastic coating, yellow (RAL1016).

Size

2515 x 605 mm.

Guidance for specification option:

  • Shower head height: 2100 mm.
  • Eyewash height: 1135 mm.

Manufacturer guidance

Total height x projection.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert rewuirement.

Shower head

∅250 mm.

Water inlet

G1 1/4” BSP female..

Pressure

2 bar.

Guidance for specification option:

Minimum 1.5 bar/ maximum 8 bar.

Flowrate

110 L/min (shower), 22 L/min regulated (eyewash).

Base

∅228 mm.
