Aragon Suspended Feature Lighting
Application

For enhancing interior design in workplaces or architectural spaces (particularly suitable for CAT A and CAT B office fit-out and flexible co-working spaces). It’s ideal as a premium suspended linear workspace fitting, or in breakout areas, and reception areas.

Description

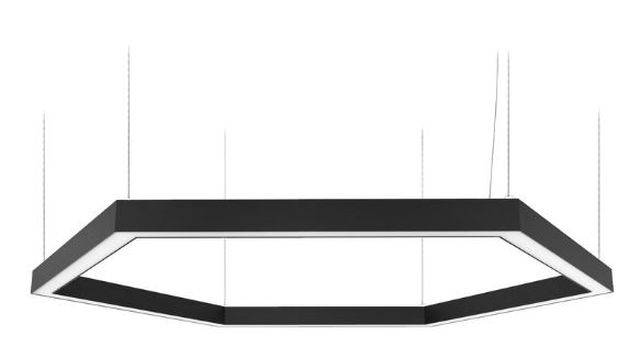

Suspended linear feature LED lighting in a hexagonal shape, part of our geometric range.

Features and benefits:

  • Contemporary, symmetrical design for a pleasing aesthetic appearance.
  • A range of size and colour variations are possible.
  • Easy to install; variants up to 1200 mm are supplied pre-assembled as one unit. The larger sizes benefit from the plug and play system, also allowing for shorter installation time.
  • Can be specified with LED Tunable White technology for the selection of a range of colour temperatures dependent on project requirements, to help aid health and well-being.
  • Can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control.
  • Internal drivers are supplied.

Also available as surface, wall and recessed mounting (specified separately).

Application:

For enhancing interior design in workplaces or architectural spaces (particularly suitable for CAT A and CAT B office fit-out and flexible co-working spaces). It’s ideal as a premium suspended linear workspace fitting, or in breakout areas, and reception areas.

General information

Size

566 mm

636 mm

706 mm

776 mm

846 mm

916 mm

986 mm

1056 mm

1126 mm

1336 mm

1406 mm

1476 mm

1546 mm

1616 mm

1686 mm

1756 mm

1826 mm

1896 mm

1966 mm

2036 mm

2106 mm

2176 mm

2246 mm

Custom

Insert requirements.

Features

Seamless welding, contemporary design, supplied pre-assembled

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Geometric

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Product Reference

Aragon Suspended

Standards

IEC 60596 -2-1 and IEC 60596-2-2

Third-party certification

Measurement Certificate 0342/2018 and LM-79-08 Photometrics

Luminaire description

Suspended, hexagon-shaped, symmetric, linear

Classification

-

Electric shock

Low Voltage (<1000V)

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Push

Screw

Nominal voltage

220-240 V

Luminaire power factor

0.98 at full load

LED luminaires

-

Performance standards

EN 13032-1

Safety standard

IEC-EN 60598-1

Initial LED luminaire efficacy (minimum)

102 lm/W

Wattage

Direct: 50 W/ 5232 lm up to 166 W/ 16 653 lm; direct/ indirect: 79 W/ 8731 lm up to 303 W/ 30 529 lm

Colour temperature

2700K

3000K

4000K

5000K

Tunable White (TW) 2700-6500K

Insert requirements.

Colour rendering index (Ra)

80

90

97

Beam angle

30-100°

Useful life

100 000 hours (L80B20)

Dimming protocol

DALI Dimming

Touch-Dimmable

Non-dimming

Standard.

Emergency version

-

Standard

Tridonic

Classification mode of operation

Maintained

Duration of emergency mode (minimum)

No emergency

0 hours.

3 hours

Integral sensors

Not required

Philips EasyAir

PIR/ Daylight

Helvar Active Plus

Micro Standalone Sensor

Accessories

Suspension cable

Insert size requirements.

Size

566 mm

636 mm

706 mm

776 mm

846 mm

916 mm

986 mm

1056 mm

1126 mm

1336 mm

1406 mm

1476 mm

1546 mm

1616 mm

1686 mm

1756 mm

1826 mm

1896 mm

1966 mm

2036 mm

2106 mm

2176 mm

2246 mm

Custom

Insert requirements.

Optics

Microprismatic Diffuser

Opal Diffuser

Asymmetric Reflector

Black Opal

Modular Optics

Colour

Black

Grey

White

RAL

Insert requirements.

Unified glare rating

-

Transverse

<20.7, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<22.7

Driver

-

Efficiency

94%

Frequency

50-60 Hz

Emergency output

200 lm

Macadams

Three-step

Direct/Indirect ULOR (Upward light Output Ratio)

47%

Direct/Indirect DLOR (Downward Light Output Ratio)

53%

Output direction

Direct/ indirect

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

Seamless welding, contemporary design, supplied pre-assembled.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Geometric.

Size:

25 sizes ranging from ranging from 566-2246 mm, and made to measure available.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
