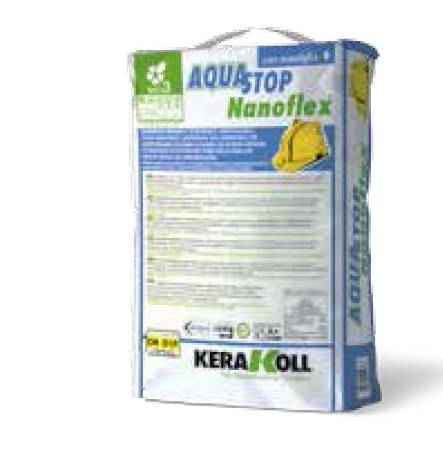

Aquastop Nanoflex®
Application

Suitable for use on terraces, balconies, horizontal surfaces and swimming pools.

Description

A single component, certified, eco-friendly, breathable, anti-alkali and chlorine-resistant, mineral membrane for the flexible waterproofing with high levels of adhesion and durability of substrates before laying with adhesives, suitable for use with EMICODE® Green Building. It has low CO2 emissions, very low volatile organic compound emissions and is recyclable as an inert material.

Aquastop Nanoflex® develops a smooth, fluid mixture that can be adjusted by varying the amount of water to obtain optimal workability for the site conditions, guaranteeing maximum adhesion of the bonded system.

Features and benefits:

  • Suitable for internal and external use on floors and walls.
  • Breathable.
  • Crack bridging ability.
  • Specifically intended for laying ceramic tiles, natural stone and glass mosaic using adhesives from the H40® range.
  • Suitable for overlaying.
  • 30% better coverage than two-component systems.
  • Includes Nanotech technology which makes it completely water repellent and gives high chemical stability.
  • EMICODE® Green Building rating: Eco 3.
  • CE marked to BS EN 14891, contributes to LEED points.

Applications:

Suitable for use on terraces, balconies, horizontal surfaces and swimming pools.

– Suitable substrates:

Mineral screeds, monolithic cement-based screeds, existing floors covered with ceramic and marble tiles, dimensionally stable natural stone well-anchored to the substrate and clean, cement-based plasters/ renders and cementitious mortars, aged concrete.

Consult manufacturer for recommended substrate preparation and substrates not suitable for the application of this product.

General information

Uniclass 2015

Pr_35_31_68_70 Resin floor coatingsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

Specification data - Resin floor coatings

Product Reference

Aquastop Nanoflex®

Standard product features

Coverage per mm of thickness:

≈1.15 kg/m².

Application thickness:

  • Minimum total thickness: ≥2 mm.
  • Maximum thickness per layer: ≤1.5 mm.

Technical properties (23°C, 50% R.H):

  • Appearance: Pre-mixed, light grey colour.
  • Apparent volumetric mass: ≈1 kg/dm³.
  • Mineralogical nature of inert material: Silicate - crystalline carbonate.
  • Viscosity: ≈60 000 MPa·s.
  • Specific weight: ≈1.5 kg/dm³.
  • Application temperature: 5–35°C.
  • Substrate residual humidity: ≤4%.
  • Waiting time between first and second coat: ≥6 hours.
  • Waiting time before laying: ≥24 hours.
  • Interval before normal use: ≈7 days (≈14 days when used with permanent water).
  • Initial adhesion (to BS EN 14891–A.6.2): ≥2 N/mm².
  • Adhesion after contact with water (to BS EN 14891–A.6.3): ≥1 N/mm².
  • Adhesion after heat ageing (to BS EN 14891–A.6.5): ≥2 N/mm².
  • Adhesion after freeze-thaw cycles (to BS EN 14891–A.6.6): ≥1 N/mm².
  • Adhesion on contact with lime water (to BS EN 14891–A.6.9): ≥1.5 N/mm².
  • Adhesion on contact with chlorinated water (to BS EN 14891–A.6.7): ≥0.8 N/mm².
  • Water-resistance (to BS EN 14891–A.7): No penetration.
  • Breathability (number of nanopores, to ASTM E12): ≥1 billion/cm².
  • Crack bridging (to BS EN 14891–A.8.2): In standard conditions: ≥0.75 mm; at low temperatures (-5 °C): ≥0.75 mm.
  • Conformity (to BS EN 14891): CM O1P.

Third party certifications
  • GEV: 2353/11.01.02 : Certified
  • GEV-Emicode: EC1-R PLUS
