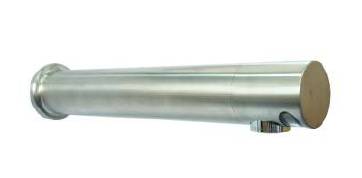

Aquarius A45 Doc M Basin Mounted Sensor Tap with Copper Tails/PEX Hose
Verified by manufacturer 5 months ago
AT03-021 - PEX Hose
AT03-021 - PEX Hose
Document M compliant basin mounted sensor tap with copper tails or PEX hose.
Application
Basin mounted.
Description
Brushed stainless steel, sensor operated Aquarius A45 DOC M basin mounted tap with copper tails.
Features and benefits:
- Simple and modern design.
- Latest electronic functionality.
- Brushed finish.
- Separate sensor operated for maximum hygiene and efficiency.
- 5 litres per minute integrated flow control.
- Automatic purge function.
- Sensor range adjustment.
- Wave on/ wave off function.
- Anti vandal and lock out functions.
- Chlorination function.
- AT03-022 - Single mixed feed connection by copper tail (10 mm).
- AT03-021 - Single mixed feed connection by PEX lined hose (15 mm connection).
- External TMV required.
- Water Regulations Approval Scheme (WRAS)-approved.
- Document (Doc M) compliant.
- HBN 00-10 Part C compliant ref: TP6 healthcare tap.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Other |
Length | 165 mm |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N13/335 Washbasins N13/30 Washbasins |
Specification data - Mixer taps
Approvals | Water Regulations Approval Scheme (WRAS)-approved. |
Form | Mixer taps. |
Materials | |
Body | Stainless steel (316). |
Finish and colour | Brushed. |
Flow rate (maximum) | 5 L/ min at 3 bar. |
Water supply temperature (maximum) | 60°C.Manufacturer guidanceMaximum working temperature. |
Integral accessories | Station kit.Guidance for specification option: Required to operate. Available in Single Station Battery or Mains Single Station, 2 Station or 3 Station for multiple connections. Consult manufacturer for details and insert requirements. |
WorkingPressure | 1–10 bar. Guidance for specification option: Consult manufacturer for details. |
Weight | 1 kg. Manufacturer guidanceGross weight. |
Operation | No touch sensor. |
Mounting | Deck mounted. |
Spout projection | 97 mm. |
Overall length | 165 mm. |
Connection | 15 mm PEX hose. Manufacturer guidanceWater connection. |
Fixing | ¾” BSP. Guidance for specification option: Fixing length: up to 50 mm with flange nut. |
