Aqua illi - Chilled & Sparkling Water Tap - Chilled/ Sparkling Water Dispenser Tap
Verified by manufacturer 5 months ago
KIWA BDA
Certificate type
Instant filtered chilled and sparkling water tap available in Chrome and Satin Black.
Application
Suitable for a variety of environments including workplace & offices, education, healthcare and hospitality.
Particularly suitable for glasses, cups and short bottles in the following applications:
- Office/workplace breakout rooms.
- Executive lounges.
- Staff rooms.
- Wellness and spa areas.
Description
THE WORLD'S SMARTEST TOUCH TAP. Innovative design, cutting-edge technology, and premium aesthetics.
The highest performing tap on the market today. A multi-function water system that can dispense chilled and sparkling water from a single tap.
- Touch tap = simple touch dispense. Touch or touchless modules available for increased accessibility.
- Energy Efficient = innovative boiling and cooling technologies for maximum performance and high energy-efficiency.
Features and benefits:
- Perfect water flow with zero splash.
- Removable dispense nozzle for improved hygiene.
- Plumbed-to-waste flush-fitting drip tray.
- Equality Act compliant controls available.
- Installed in modular form to fit into the tightest of spaces.
General information
Color | Black Silver |
Finish | Chrome Matt |
Material | Steel |
Shape | Other |
Length | 575 mm |
Width | 565 mm |
Height | 685 mm |
Warranty description | One year |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Water coolers
Third-party certification | ISO 14001. |
Flow rate | 300 L/h. |
Temperature of delivered water | Manufacturer’s standard.Guidance for specification option: Consult manufacturer for details. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve. |
Power supply | 1 No. 50 Hz twin switched 13 A power socket, 220–240 V. |
Colour/ Finish | Chrome. Satin black. |
Extension | Not required. 60 mm height. Guidance for specification option: 293 mm dispense height. 110 mm height. Guidance for specification option: 343 mm dispense height. |
Water pressure | 2.5 bar (minimum). |
Ventilation | Required. Guidance for specification option: Please visit www.aqualibra.com/resources for all ventilation options, insert requirements. |
Water | Chilled/ sparkling, 180 cups per hour at 250 mL. |
Tank capacity | Up to 45 litres. |
Dimensions | 685 x 565 x 575 mm. Guidance for specification option: Internal cabinet space required. |
Safety features | Base cabinet leak detector. |
Components | Watercooler-carbonator, tap. |
Sustainability data
Contains Red List materials | No |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature

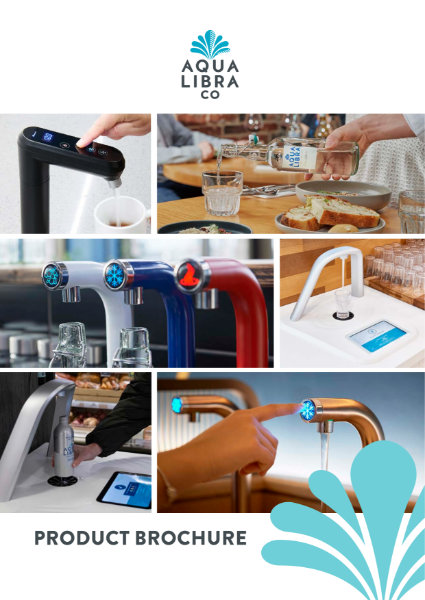

Aqua Libra - Product Brochure - 2023

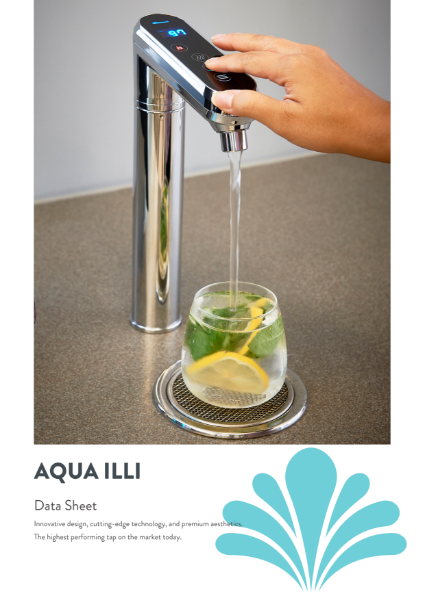

Aqua illi - Data Sheet
