Aqua illi - Boiling, Chilled & Sparkling (BCS) Water Tap - Fully Integrated Water Tap System
Verified by manufacturer 24 hours ago
Polished Chrome
Polished Chrome
KIWA BDA
Certificate type
KIWA BDA
Certificate type
Fully integrated water tap system delivering purified hot, chilled still, and sparkling water; available in polished and matte black as standard.
Application
Suitable for a variety of environments including workplace & offices, education, healthcare and hospitality.
Particularly suitable for glasses, cups and short bottles in the following applications:
- Office/workplace breakout rooms.
- Executive lounges.
- Staff rooms.
- Wellness and spa areas.
Description
The Aqua illi is a fully integrated tap system for modern workplaces, delivering purified hot, chilled, sparkling, and ambient water in a sleek design that seamlessly complements any interior for effortless, dependable hydration.
Features and benefits:
- Robust; intuitive; beautifully minimal.
- Designed to withstand high daily use.
- Engineered for teams who value form and function.
- Less visual clutter - more clarity.
- Patented boiler design gives high volumes of boiling water
- Featuring Aqua Purifier four-stage + PFAS/microplastic filtration
- Installed in modular form
- Perfect water flow
- Continuous and timed dispensing modes to accommodate precise fill volumes
- Tap height extensions are available for dispensing into a variety of vessel sizes
- Plumbed-to-waste
- Flush-fitting drip tray
- Safe hot dispense with a touch padlock feature
- Removable dispense nozzle for improved hygiene
- Equality Act - Compliant options available
- Regulation 4 Certified
General information
Color | Black Silver Other Beige Blue |
Finish | Matt Polished Coated Chrome Electro polished |
Material | Steel |
Shape | Other |
Length | 155 mm Manufacturer guidanceSpout depth (overall). |
Width | 45 mm Manufacturer guidanceSpout diameter. |
Height | 298 mm 358 mm 408 mm Manufacturer guidanceSpout height (overall). |
Warranty description | One year |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes |
Specification data - Instant boiling and cold water taps
Classification data | |
Water | Boiling, chilled, sparkling. |
Duty | |
Tank capacity | Up to 45 litres. |
Hot cups | 180 per hour at 250 mL. Guidance for specification option: Glasses for chilled or sparkling water. |
Cold cups | 180 per hour at 250 mL. Guidance for specification option: Glasses for chilled or sparkling water. |
Dimensions | Tap: 298 mm high; 155 mm deep; 45 mm diameter column. Cabinet: 900 x 600 x 600 mm. Guidance for specification option:
|
Electrical connection | |
Power | 3 No. 50 Hz single switched 13 A power sockets. |
Voltage | 220–240 V. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve - compression connection. |
Safety features | Touch operated. |
Components | Touch tap; flush-fitting round drip tray; CTO filter; purifier storage tank; purifier; dry sparkling cooler; standard boiler. · CO₂ bottle to be supplied by others. Guidance for specification option: The manufacturer asks that customers order gas cylinders in advance.
Consult manufacturer for recommendations and related technical requirements. |
Colour/ Finish | Polished chrome. |
Extension | Not required. Guidance for specification option: 234 mm dispense height; 298 overall visible height. Additional 60 mm height. Guidance for specification option: 294 mm dispense height; 358 overall visible height. Additional 110 mm height. Guidance for specification option: 344 mm dispense height; 408 overall visible height. |
Accessories | Cover plate. Guidance for specification option: Cover plate options available for replacing existing fixtures. Colour/ finish to match tap unless specified otherwise. Not required. |
Water pressure | 2.5 bar (minimum). |
Flowrate | 300 L/h (minimum). |
Ventilation | Required. Guidance for specification option:
|
Power consumption | Peak: 1750 W. |
Current | Peak: 8 A. |
Waste | Requires 40 mm upstand trapped waste pipe, 500 mm high. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel |
Expected Life | Five year |
Product certifications
Literature
Literature type

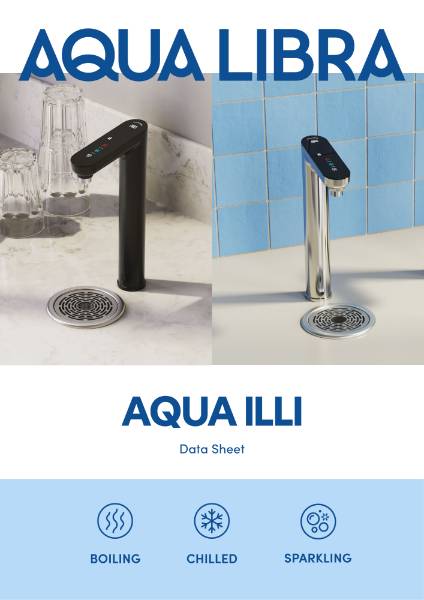

Aqua illi Boiling, Chilled & Sparkling Data Sheet

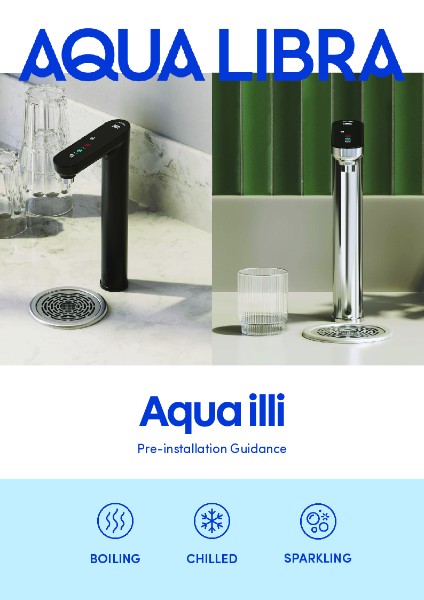

Aqua illi Pre-installation Guidance - BCS (Boiling/ Chilled/ Sparkling)
CPD materials
How to Specify Sustainable, Innovative Drinking Water Systems
