Aqua Brilliant - Shower drain
Application

New construction or renovation.

Description

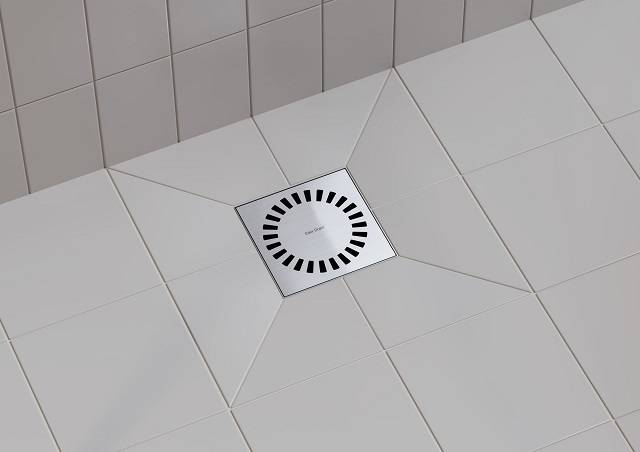

Extremely flat, square shower drain, with premium technology. It is supplied with the patented Water Protection System (WPS) and has a variable connection for horizontal or vertical installation. With an installation depth starting from 65 mm and 50 mm adjustable water seals, Aqua Brilliant is especially suited to renovation projects.

Features and benefits:

  • Suitable for every installation depth: trap body and grate are height-adjustable.
  • Extremely low installation depth.
  • High drainage capacity: 39 L/m.
  • Glueable acrylonitrile butadiene styrene (ABS) trap body, according to DIN-EN-ISO 2580-1:2002.
  • Easy-to-clean siphon.
  • WPS technology: ten-year warranty.
  • Patented flexible flange technology: WPS ensures 100% watertight, perfect adhesion and no pressure load on the edge, in comparison to a fixed flange.
  • Soundproofing mat is included in the packing.
  • Variable connection, for vertical or horizontal application.
  • Self-explanatory shower drain for professionals (smooth transition from installation to tiling).
  • ETAG - 022-certified.
  • EN 1253-certified.

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

65x146x146mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

Specification data - Floor gullies

Product Reference

Aqua Brilliant - Shower drain

Standard

To EN 1253 + ETAG - 022

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)

Cover or grating

-

Type

Open grating

Tile

For 130 x 130 x 7-18 mm (l x w x d) tile.

Material

Not applicable

For tile.

Stainless steel

Finish

Not applicable

For tile.

Brushed

Outlet

360° rotatable for vertical or horizontal application

Installation depth (minimum)

65-103 mm

Drainage capacity

39 L/m

Water seal height

50 mm

Connection

Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Glass mosaic, thin tiles, tiles/ mosaic

Total installation height

75-112 mm

Standard product features

Features:

Extremely flat.

Shape:

Square.

Size:

146 x 146 mm.

Warranty description:

Ten years.

Country of origin:

The Netherlands.

Country of manufacture:

Germany.
