Aqua Alto - Chilled & Sparkling Water Taps - Chilled/ Sparkling Water Dispenser Taps
Verified by manufacturer 4 months ago
KIWA BDA
Certificate type

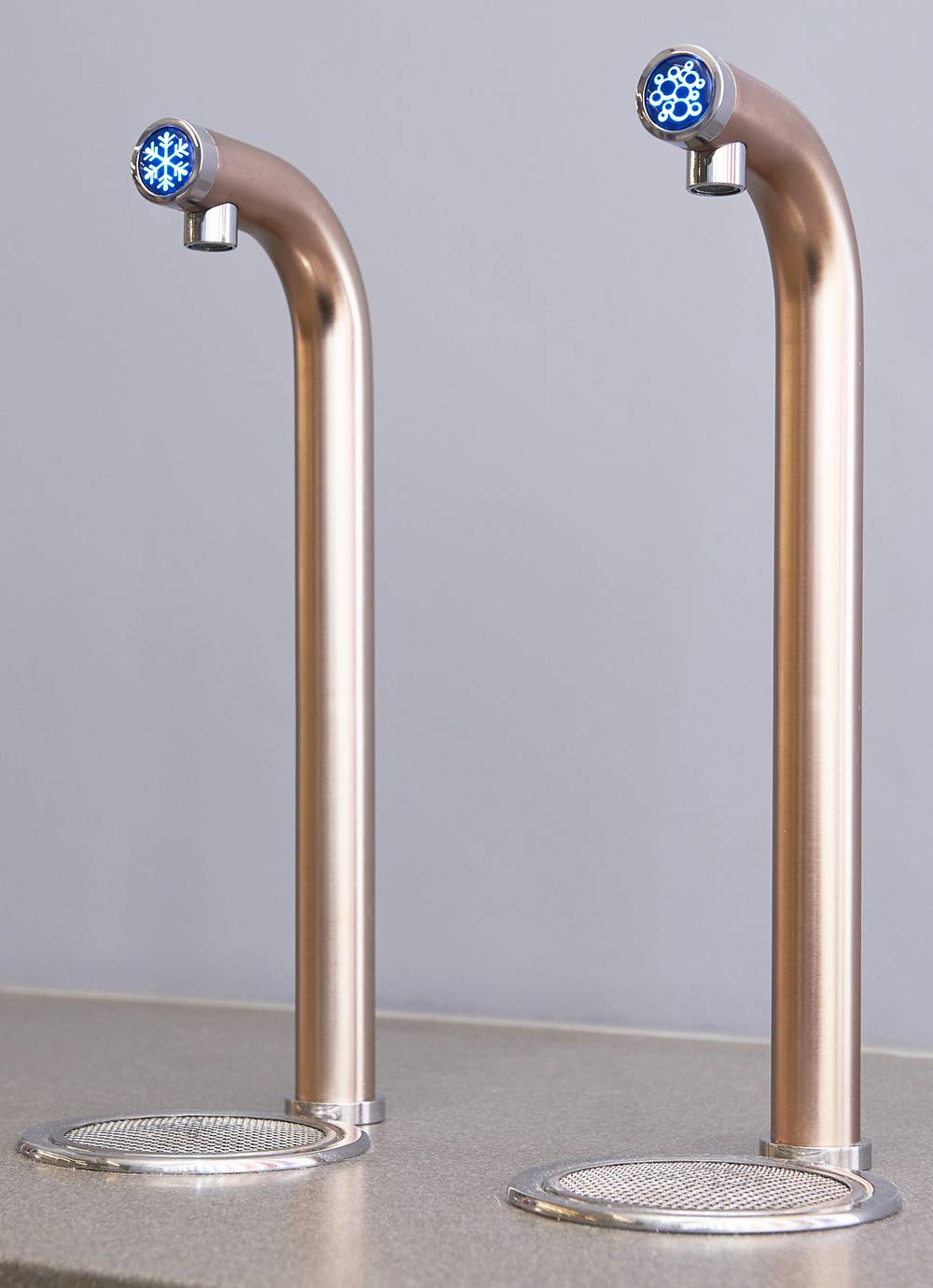

Chilled and sparkling water tap. Two taps. One base unit. Aqua Aqua Alto is a perfect combination of innovative technology, high-capacity dispense and infinite choice of colour.
Application
Suitable for a variety of environments including workplace & offices, education, healthcare and hospitality.
Particularly suitable for glasses and bottles in the following applications:
- Office/workplace breakout rooms.
- Executive lounges.
- Staff rooms.
- Gyms
- Bars/restaurants
- Wellness and spa areas.
Description
This innovative yet simple tap comes in any colour you like, to match, complement, or contrast with, your brand colours or décor.
Great look. No queues.
Features and benefits:
- Multiple taps can be used on one system to reduce queues
- Sleek design available in any colour
- Patented boiler design gives high volumes of boiling water
- Installed in modular form to fit into the tightest of spaces
- Perfect water flow with zero splash
- Plumbed-to-waste flush-fitting drip tray
- Pre-set fill volumes for any vessel and free flow options available
- Designed to fill water bottles without the need for font extension
- Equality Act compliant controls available
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceAvailable in any RAL colour. |
Finish | Matt |
Material | Steel |
Shape | Other |
Length | 575 mm |
Width | 565 mm |
Height | 685 mm |
Warranty description | One year Guidance for specification option: 12 months on parts and labour. |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Water coolers
Third-party certification | ISO 14001. |
Flow rate | 300 L/h. |
Temperature of delivered water | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve. |
Power supply | 1 No. 50 Hz twin switched 13 A power socket, 220–240 V. |
Colour/ Finish | Manufacturer guidanceAvailable in any RAL colour; insert requirements. |
Water pressure | 2.5 bar (minimum). |
Ventilation | Required. Guidance for specification option: Please visit www.aqualibra.com/resources for all ventilation options and insert requirements. Manufacturer guidance(cabinet) |
Tank capacity | Up to 45 litres. |
Water | Chilled, sparkling, 180 cups per hour at 250 mL. |
Dimensions | 685 x 565 x 575 mm. Guidance for specification option: Required internal cabinet space, H x W x D. |
Safety features | Base cabinet leak detector. |
Components | Watercooler-carbonator, tap. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Literature
Aqua Libra - Product Brochure - 2023
Aqua Alto - Data Sheet
Case studies
Aqua Libra x Rhubarb
