Natural smoke extract and day to day ventilator with weathered ventilation facility.

Jump to:
+44 (0)23 9245 1111 www.coltinfo.co.uk
Description

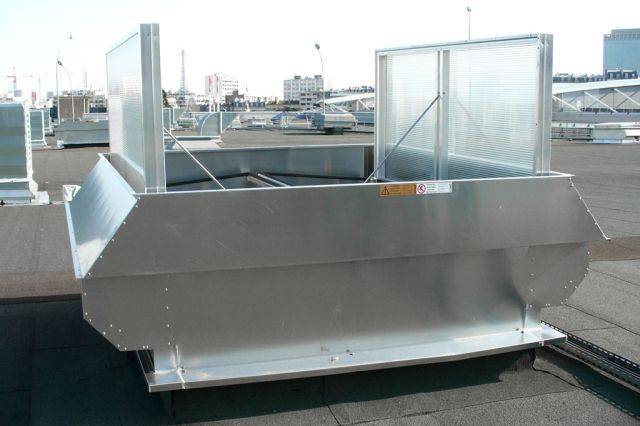

Apollo ATI is a natural flap ventilator that can provide both full extraction through its top flaps and weathered ventilation via longitudinal side flaps. It is a dual purpose ventilator, providing both day to day and smoke control ventilation and is generally installed onto roofs, providing high level extract to most kinds of industrial buildings. Polycarbonate versions allow the entry of natural daylight. It is tested to and in compliance with EN 12101-2 and is CE marked. It is made from tough, corrosion resistant aluminium alloy and is manufactured under the ISO 9001 quality and ISO 14001 environmental management standards.

Features:

  • Certified performance.
  • Cost effective.
  • Durable.
  • Easy to install.
  • Energy efficient - highly insulated and air tight, meeting or exceeding today’s energy savings regulations.
  • Low maintenance.
  • Allows weathered ventilation.
  • A wide range of applications.
  • Tested and certified as fall-through-proof in 300J and 1200J tests by an external test house.

General information

Features

Certified performance

Cost effective

Durable

Easy to install

Energy efficient - highly insulated and air tight, meeting or exceeding today’s energy savings regulations

Show more

Uniclass 2015

Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary

CAWS

L10/490 Roof ventilators

Specification data - Natural smoke and heat exhaust ventilators

Product Reference

Apollo ATI natural ventilator for weathered ventilation

Size

-

Throat width

1000–1900 mm in 1 mm increments.

Throat length

1000–3000 mm in 1 mm increments.

Fixing type

-

Aluminium base profile to suit

Curb

Glazing

Sheeting

Frame finish

Mill aluminium

Polyester powder coating, RAL

Insert colour requirement.

Top flaps

16 mm clear polycarbonate, 7 skins, 6 chambers

16 mm opaque polycarbonate, 7 skins, 6 chambers

16 mm opaque polycarbonate, external and internal sheet, single chamber

Double skin Insulated aluminium infill panel

Controls

-

Type

24 V DC

Pneumatic

Operation

Double locking

Failsafe closed

Failsafe open

Standard product features

Base:

Uninsulated.

Frame:

Manufactured from corrosion resistant aluminium alloy grade 3005 in accordance with EN 573-3, with stainless steel fixings.

Seals:

Used to reduce air leakage when closed.

Side flaps:

Side flaps and aerodynamic deflectors are set within a wind baffle to provide weathered ventilation.

Performance:

  • Aerodynamic coefficient (Cv): Up to 0.69.
  • Reliability: RE 1000 (10,000 cycles).
  • Wind load class: Up to 1500 N/m².
  • Snow load class: Up to 5700 N/m² (electric), 1500 N/m² (pneumatic).
  • Resistance to heat: B 300.
  • Low ambient temperature operation: T(-15).
  • Materials resistance to fire: E (to EN 13501-1).
  • U value: Up to 3.4 W/m²K.
  • Air permeability: Class 3 (to EN 12207:2000).
  • Sound insulation: 26 dB R’w.

Product Options

Suitable for fixing either onto a curb, into glazing, into curtain walling, or into roof sheeting.

Literature
Third party certifications
  • CE Mark / compliance with EN 12101-2: EN 12101-2. : Declaration of Performance according to EU-CPR-305/2011 referencing EC Certificate of Conformity No. 1396-CPD-0004
  • SGS: SK11/1243 - Manufactured to ISO 9001:2008 Quality Standard
  • SGS: SK14/2096 - Manufactured to ISO 14001:2004 Environmental Standard
  • Quality Assurance - certficate : Tested and certified as fall-through-proof in 300J and 1200J tests by an external test house
