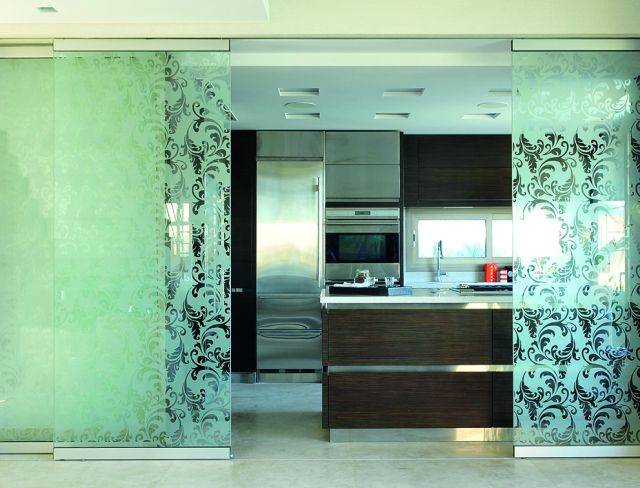

Aperto 40 F (Sliding wall partition gear hardware)

Verified by manufacturer 26 days ago

17797

Furniture hardware for sliding cabinet doors with a maximum panel weight of 40 kg.

Features and benefits:

• Maximum height: 2600 mm.
• Door width: 400–900 mm.
• Suitable for door panel thickness of 19–25 mm.
• Suitable for use with multi-door cabinet fronts (the stacking area accommodates up to seven door panels).
• Provides space-saving door opening, as panels can be stacked out of sight within a cabinet compartment or hinged door.
• Can also be used as visual design elements whilst parked if preferred.
• When closed, the cabinet front is flush, with uniform gaps between panels if required, even in combination with hinged doors on upper and lower cabinets.
• The same components can be used for both right and left-hand stacking.
• Provides flexibility on the number and width of door panels to be used.
• Minimum axis radius 2000 mm for curved applications.
• Includes centre-stop with adjustable friction.
• Plastic cover caps with buffer rollers provide extensive protection to cabinet fronts as they slide into the stacking area.
• Provides unrestricted access to the entire cabinet width while the front is open.
• Locking the hinged door secures the entire cabinet front.
• Easy sliding action with the forced guiding system, plastic rollers and anodized aluminium top tracks for light and quiet running.
• Height adjustable (±2 mm).

Components (Panel set 17797):

• Two-wheeled trolley M8, set of two pieces.
• Fixing cup, screw fitting.
• Suspension bolts and mounting screws.
• Guide pin and mounting screws, set for one fixing cup.
• Plastic panel surface equalizer (black).
• Plastic cover cap (black), for fixing cup.
• Spacers for panel clearance, 2 mm plastic (black).
• Spacers for panel clearance, 3 mm plastic (black).

Components (Stacking area set 17798):

• Single top track curved segment, 75° inside, length of leg: 580 mm.
• Single top track curved segment, 75° outside, length of leg: 580 mm.
• Curved bottom guide channel 75°, plastic (black).
• Top fixing plate for two single top tracks, aluminium.
• Top fixing plate for single top track, aluminium.
• Connecting bolts.
• Top track end stops.
• Bumpers/ end stoppers, plastic (black).
• Centre stop with progressively adjustable retention spring catch.
• Fork spanner SW 15/7.
• Hex key, 4 mm (length 160 mm).
• Concealed hinges for pivot doors are not included.
