Antiguan External Blind - External Roller Blind
Verified by manufacturer 5 months ago
The Antiguan Blind is a windproof external roller blind that offers optimum solar heat & light control to vertical glazing. Available upto 6m wide x 6m high, with slim face / side fix side guides.
Application

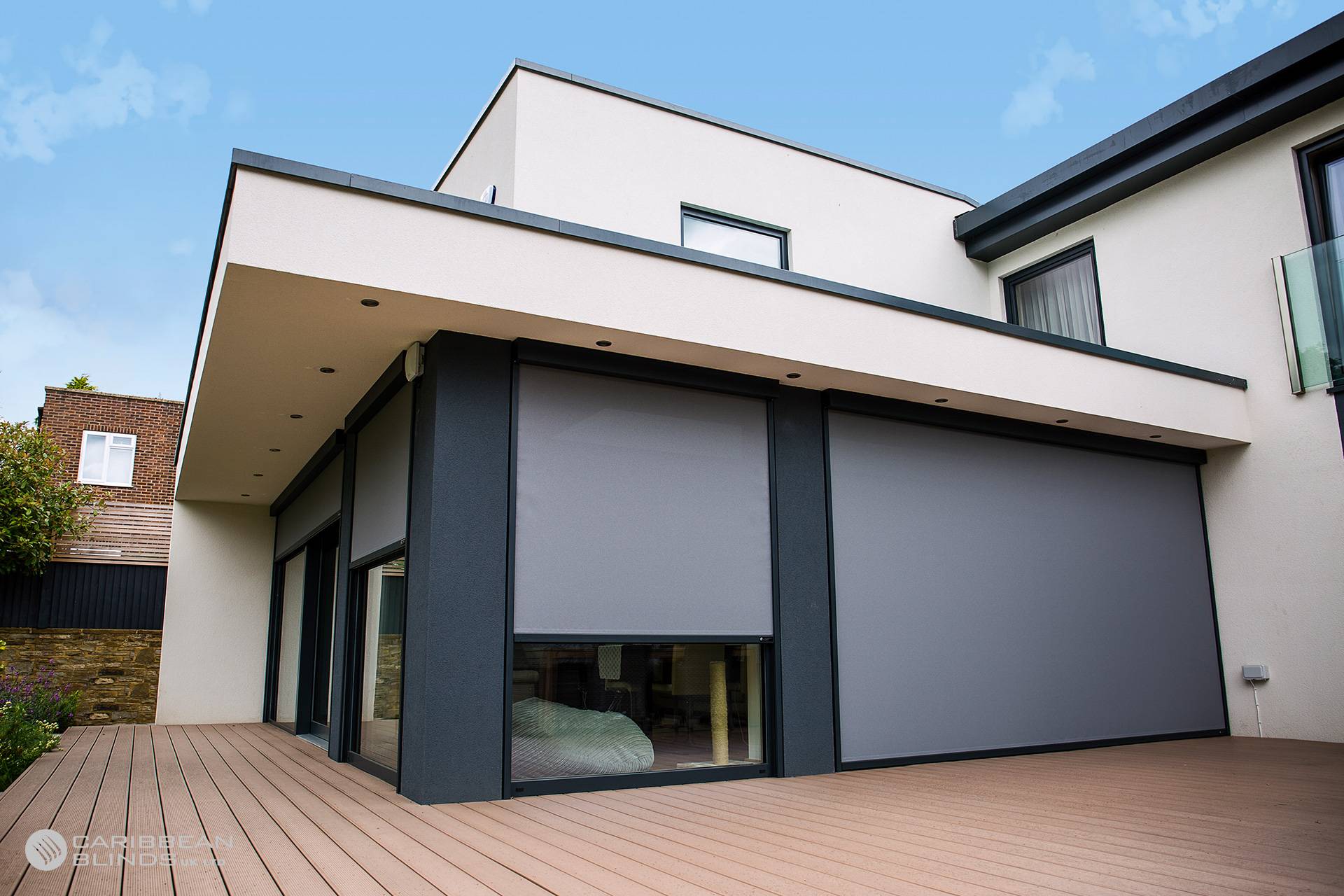

Suitable for residential and commercial, outside in front of windows, sliding / folding doors and on pergolas and verandas.
Description
The Antiguan blind offers solar heat and light control to sliding / folding doors and windows along with weather protection to the exposed openings on pergolas and verandas. Ziplock technology physically seals the fabric within the side guides, rendering the blind windproof along with preventing any light leakage. A weighted leadrail ensures the fabric stays under optimum tension at every position, whilst the full cassette headbox protects the fabric and mechanism when not in use.
Features and benefits:
- Full cassette headbox (135 mm square).

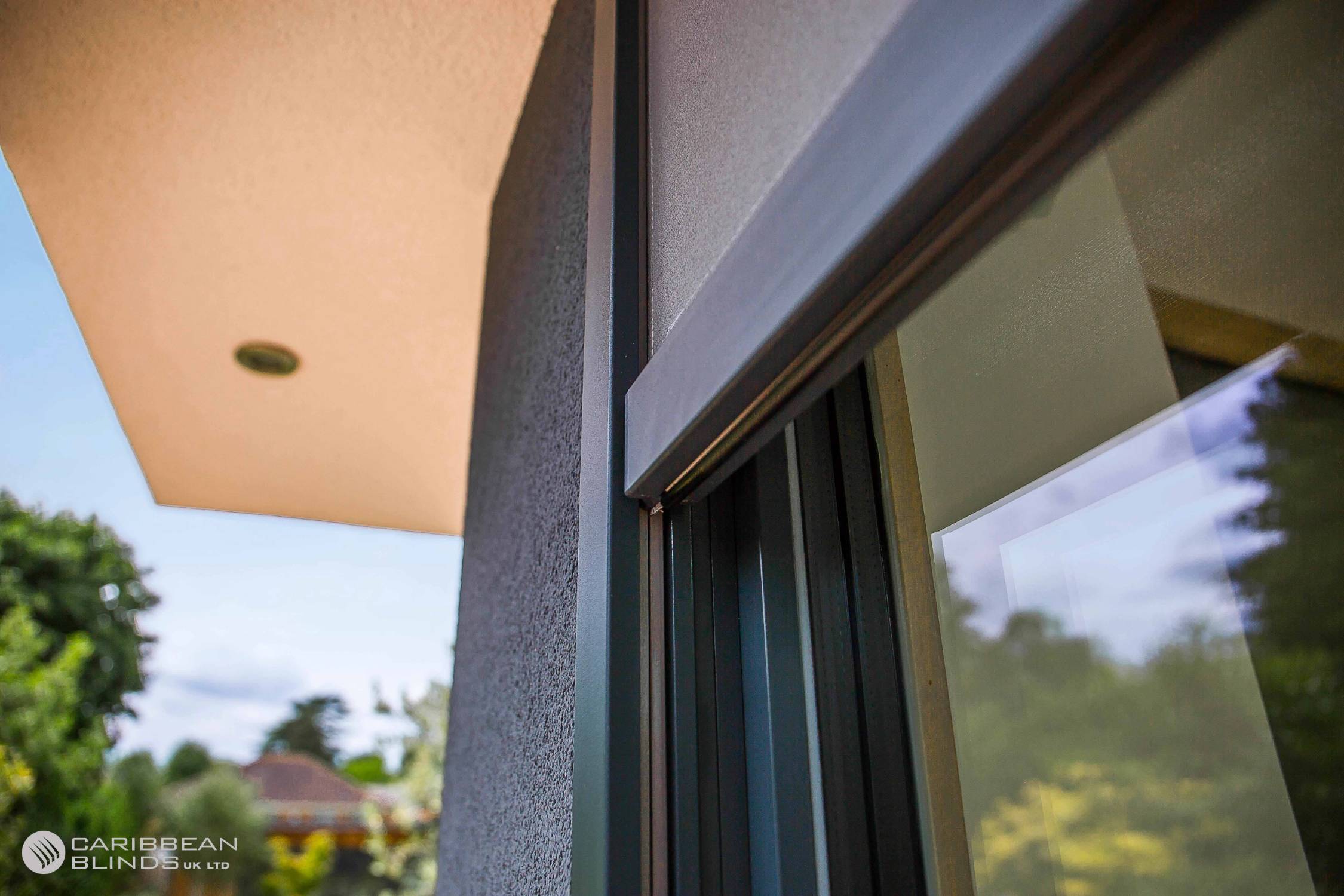

- Slim side guides with windproof ziplock technology.
- 100’s of hardware (RAL) colours & of solar control fabrics.
- Motorized remote / app control with obstacle detection.
- Optional automatic weather sensors (light and wind).
- Face or side fix mounting inside or outside reveal.
- Up to 6 m wide x 6 m high (max 18 m/² surface area).
General information
Color | Manufacturer guidanceAnthracite Grey RAL 7016ST. White RAL 9016. Custom RAL. |
Finish | Powder-coated |
Material | Aluminium Fabric |
Shape | Rectangle Square |
Width | Bespoke Guidance for specification option: Up to 6m width |
Height | Bespoke Guidance for specification option: Up to 3m height |
Warranty description | Five year |
Uniclass | |
CAWS | L10/680 Solar shading system N10/240 Blinds L10/59 Solar shading system |
Specification data - External roller blinds
Standards | To BS EN 13561. |
Dimensions (minimum width x depth) | Guidance for specification option: Insert requirements, up to 6 m x 6 m (max 18 m/² surface area). |
Headrail | |
Material | Powder coated, extruded aluminium.Guidance for specification option: Headbox: 135 x 135 mm (h x d). Side Guides: 36 x 42 mm (w x d). |
Colour | Anthracite Grey RAL 7016ST.White RAL 9016.Custom RAL.Guidance for specification option: Insert colour code requirement. |
Blinds | |
Material | Twilight Comfort solar control mesh dimout fabric (code 262).Lumera solar control solid blockout fabric (338 code). |
Finish | TEXgard easy clean coating. |
Colour | Guidance for specification option: Insert colour code requirement. |
Tube | |
Material | Galvanized steel. |
Diameter | 78 mm.85 mm.100 mm. |
Operation | Integrated radio controlled motor and remote controlGuidance for specification option: Somfy IO with obstacle detection, 240 v AC, power draw circa 1.1amps. |
Operating effort | To BS EN 13561, class 3. |
Mechanism endurance | To BS EN 13561, class 3. |
Wind resistance | To BS EN 13561, class 3.Guidance for specification option: Beaufort 6 – 31 mph strong breeze. |
Total solar energy transmission (maximum) | To BS EN 14501. |
Accessories | None.Wind sensor (Eolis wired io).Sun & Wind sensor (Soliris wired io).App control (Tahoma switch). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | United Kingdom |
Recyclability | Aluminium is recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
CB - Antiguan Blind | General Arrangement & Mounting | External Roller Blind
