Expansion tank.
Suitable for constant pressure water systems seeking to store water without the risk of stagnation.

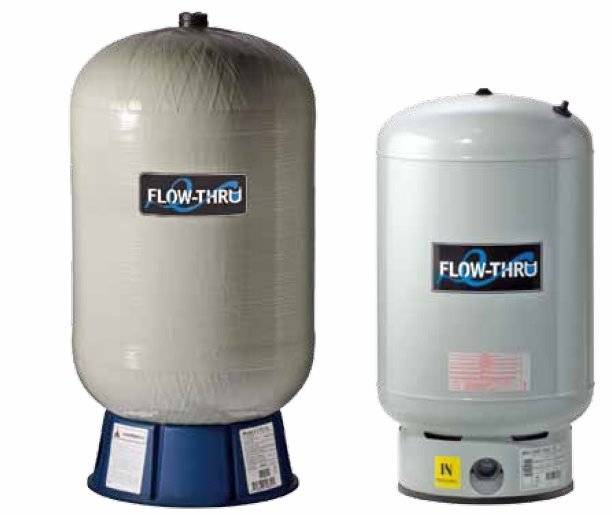

Anti-legionella expansion tank, available in both composite material and steel. All tanks feature Flow-Thru™ technology which assures that the system will provide the freshest water quality possible by simply eliminating stagnation.
The Flow-Thru™ connection diverts system water into, and more importantly out of the tank while the pump is running. This constant flushing action assures that the water in the tank remains as fresh as possible and eliminates the possibility of stagnant water during normal system operation.
All tanks incorporate proven patented controlled action diaphragm (CAD-2). CAD-2’s steel clench ring regulates movement and prevents the diaphragm from rubbing against the tank wall. The tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank.
Features and benefits:
Application:
Suitable for constant pressure water systems seeking to store water without the risk of stagnation.
Uniclass 2015 |
Product Reference | Anti-Legionella Flow Thru Expansion Tank |
Sub-sink system | CFB-60LVComposite. Nominal volume: 60 L. Size: 65 x 42.13 cm. CFB-80LVComposite. Nominal volume: 80 L. Size: 86.51 x 42.13 cm. CFB-150LVComposite. Nominal volume: 150 L. Size: 77.44 x 61.77 cm. CFB-200LVComposite. Nominal volume: 200 L. Size: 109.91 x 54.56 cm. GFU-80LVSteel. Nominal volume: 80 L. Size: 73.56 x 40.69 cm. GFU-170LVSteel. Nominal volume: 170 L. Size: 94.33 x 52.96 cm. GFU-325LVSteel. Nominal volume: 325 L. Size: 114.94x 66.03 cm. GFU-450LVSteel. Nominal volume: 450 L. Size: 150.49 x 66.03 cm. |
Standard product features | Technical characteristics:
|
