Antao Vanity Washbasin 4A77LB
Verified by manufacturer 9 months ago
4A77LBR1
4A77LBR1

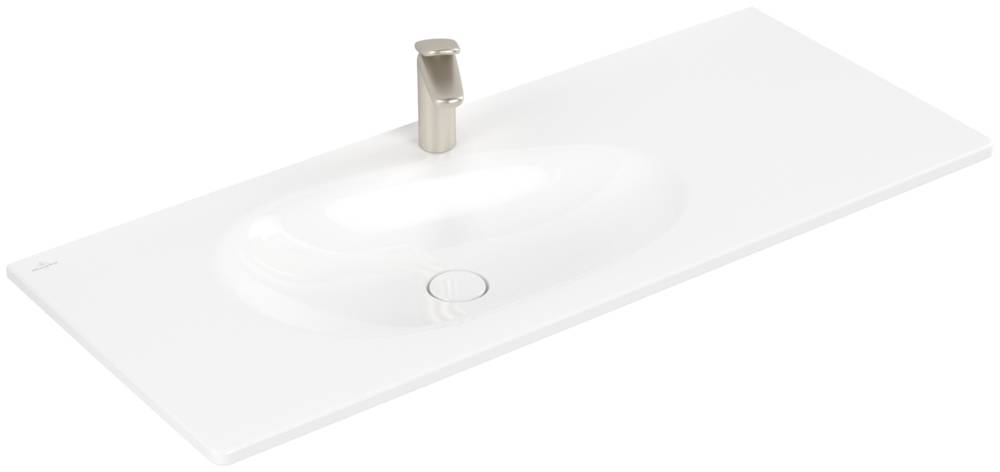

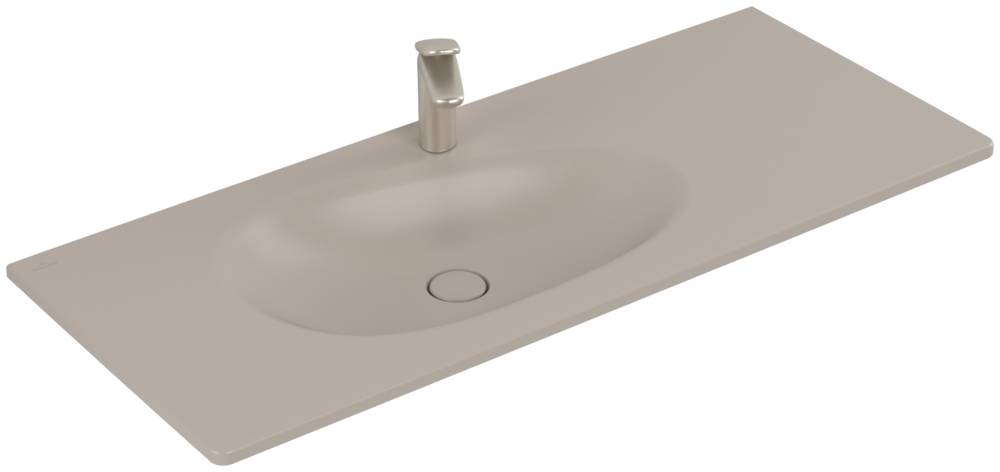

Rectangular vanity washbasin.
Description
Rectangular washbasin.
Features and benefits:
- TitanCeram.
- Left basin.
- Includes concealed ViFlow overflow with ceramic valve cover.
General information
Color | White Beige Black Green |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 500 mm |
Width | 1200 mm |
Height | 150 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Form | Vanity top (inset). |
Materials | |
Body | TitanCeram. |
Finish and colour | White alpin ceramic plus, gloss. |
Size | 1200 x 500 x 150 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 1-hole mixer tap, central tap hole punched out. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Concealed ViFlow overflow with ceramic valve cover. |
Weight | 34 kg. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
