Description

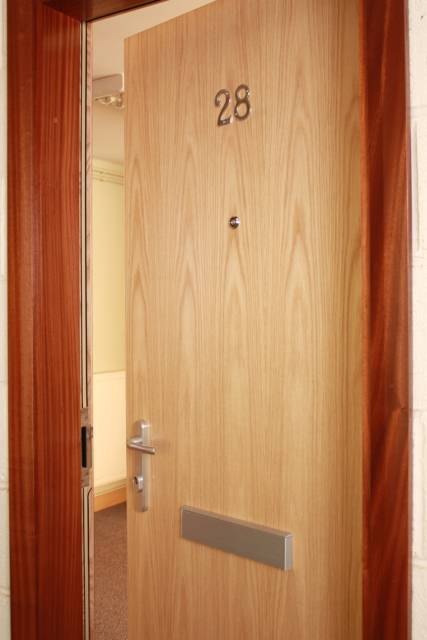

Anosecure FD30 Secure by Design doorset is specifically developed to meet the complex performance demands of social and private new build apartment entrance locations. Manufactured to the police preferred specification recommended by ACPO (Association of Chief Police Officers) and complete with PAS 23 and PAS 24 test evidence.

Features:

  • Secured by Design accredited with heavy-duty construction and performance tested ironmongery.
  • Fire door and intumescent seals ensure that the doorset meets the Fire resistance and escape requirements specified by Building Regulations (E&W) Approved Document B and relation national standards.
  • Thermal U-value properties assist in meeting the requirements of Building Regulations (E&W) Approved Document L and related national standards.
  • Doorset widths suitable for mobility access and low-level threshold assist in meeting the requirements of Building regulations (E&W) Approved Document M and related national standards.
  • Supplied as a complete assembled unit ready for site installation.
  • Door leaf sizes (h x w) up to 2100 x 1050 mm available.
  • SC certified product.
  • Engineered and recycled components used to improve material strength and reduce waste, along with the materials being suitable for recycling at the end of product lifecycle.

General information
Features

Secured by Design accredited with heavy-duty construction and performance tested ironmongery

Fire door and intumescent seals ensure that the doorset meets the Fire resistance and escape requirements specified by Building Regulations (E&W) Approved Document B and relation national standards

Thermal U-value properties assist in meeting the requirements of Building Regulations (E&W) Approved Document L and related national standards

Doorset widths suitable for mobility access and low-level threshold assist in meeting the requirements of Building regulations (E&W) Approved Document M and related national standards

Supplied as a complete assembled unit ready for site installation

Door leaf sizes (h x w) up to 2100 x 1050 mm available

SC certified product

Engineered and recycled components used to improve material strength and reduce waste, along with the materials being suitable for recycling at the end of product lifecycle

Uniclass 2015
Wood doorsets (Pr_30_59_24_97)Primary
Specification data - Wood doorsets
Product Reference

Anosecure Doorsets

FireResistanceRating

Non fire rated

FD30

FD30S

FD60

FD60S

As schedule

Insert details.

Mechanical strength

DD171 Severe duty

Door leaf -
Core size

Maximum: 2344 x 1050 x 45 mm (h x w x t), having a graduated density particleboard of 570–630 kg/m³, weighing 27 kg/m².

Facings

Laminate finish

Insert requirements, various options available, consult manufacturer for details.

Primed paint finish on 'Kraft' foil face paper

Veneer with factory applied 20% clear sheen UV lacquer

Insert requirements, various species available, consult manufacturer for details.

As schedule

Insert details.

Lippings

Concealed lipping to all four edges, 45 x 12 mm with 3 mm radius and factory applied clear lacquer

Insert species requirements.

Exposed lipping to all four edges, 45 x 12 mm with 3 mm radius and factory applied clear lacquer

Insert species requirements.

Door frame -
Type

Single rebated, single action frame with 35 mm integrated factory machined stop

Size: 80 mm wide (minimum) x 54 mm thick.

As schedule

Insert details.

Timber species

Sapele hardwood

Softwood

Consult manufacturer and insert requirements.

As schedule

Insert details.

Colour/ Finish

Factory applied clear lacquer

Primed paint finish

Architraves -
Type

Not required

AR-T-301, 45 x 18 mm with square edges

AR-TO-02, 45 x 18 mm with single pencil round edge

AR-TO-03, 45 x 18 mm with single chamfered edge

AR-TO-04, 69 x 19 mm with square edges

AR-TO-05, 69 x 19 mm with single pencil round edge

AR-TO-06, 69 x 19 mm with single chamfered edge

Timber species

Hardwood, factory applied UV clear lacquered finish

Insert species.

MDF, primed paint finish

As schedule

Insert details.

Ironmongery

Not required

1½ pairs of AR8182-SSS hinges

Fitted at Hanson and Beards standard hinge positions and seated on interdent.

80 x 18 mm hardwood timber with satin silver aluminium strip

80 x 18 mm hardwood timber with satin gold aluminium strip

100 x 30 mm stainless steel (grade 13) butt hinges with radiused corners

Approved FD 30 advantage plus letter plate

Glutz AG Lock- MINT 1893 Europrofile key operated 4 point lock/ latch, key/ thumb turn

Glutz AG Lock- MINT 1893 Europrofile key operated 4 point lock/ latch, key/ key configuration

Mobility height eye viewer

Multi point Fullex lock

SBD handle, 1710RH3369N-ZA 3360N, F1 Silver

SBD handle, 1710RH3369N-ZA 3360N, F2 Gold

SBD handle, 1710RH3369N-ZA 3360N, RAL 9016 Traffic white powder coated

SBD handle, 1710RH3369N-ZA 3360N, RAL 9714 Matt black powder coated

Standard product features

Fire resistance rating:

Tested in accordance with BS 476–22:1987, in accordance with manufacturers certified tested dimension and published technical manual.

Moisture content on delivery:

6% for door cores with hardwood lippings 10% (±2%).

Timber Chain of Custody:

Forestry Stewardship Council (FSC) mixed sources.

Door leaf threshold:

Door leaf to have a factory fitted approved drop seal.

Preservative treatment:

External doors only.

Product Options

Door frame:

All FD30S frames to have approved 15 mm wide x 4 mm thick intumescent strip fitted to all vertical and horizontal sections that meet the door leaf edges and an approved acoustic seal to head and jambs.
