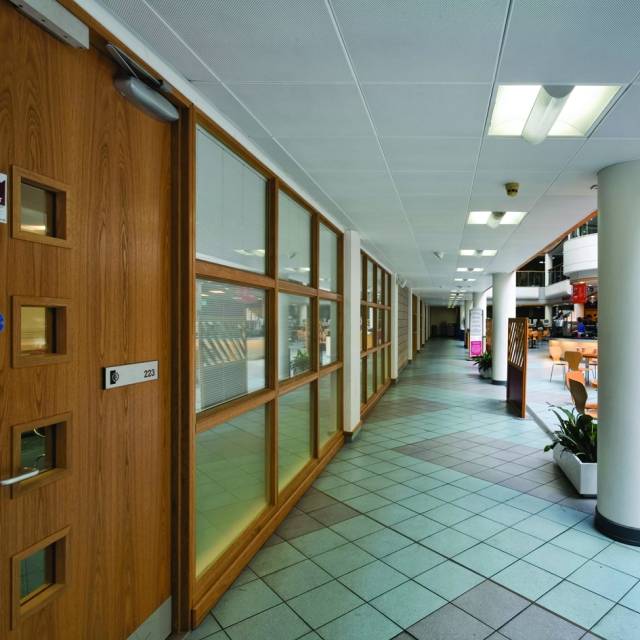

Timber glazed screens provide excellent fire and acoustic performance without compromising design or aesthetic requirements.

The timber screens are both aesthetically pleasing and fully compliant with current regulations for fire and acoustic applications.

Frame sections can be supplied in softwood, a wide range of decorative hardwoods and veneered MDF. Glazing can be single or double glazed in a variety of thicknesses to suit fire and acoustic requirements.

Can be supplied for the following applications:

  • Internal and external non-fire rated and 30 or 60-minute fire rated.
  • Internal and external acoustic rated.

General information

Uniclass 2015

Ss_25_30_20_25 Doorset systemsPrimary


L10/56 Glazed screen system

L10/560 Glazed screen system

Specification data - Doorset systems

Product Reference



Not required

FD30/0 integrity and insulation

FD30/30 integrity and insulation

FD60/0 integrity and insulation

FD60/30 integrity and insulation

FD60/60 integrity and insulation

As schedule

Insert details.

Sound insulation rating

Not required

30 dB Rw

35 dB Rw

40 dB Rw

45 dB Rw

50 dB Rw

As schedule

Insert details.



Timber species


Minimum density 450 kg/m³, insert species.


Minimum density 450 kg/m³.

As schedule

Insert details.

Frame finish

Factory primed

Factory finished lacquered

As schedule

Insert details.


As per architects schedule but also in accordance with Hanson and Beards performance certification.

Vertical joint detail

Silicon jointed

Timber framed

Junctions and corners

Silicon jointed

Timber vertical sections

Glazing bead

Factory applied clear lacquer

Factory applied primed finish for onsite top coat application





Insert glass requirements.


Insert glass requirements.


Design in accordance with Building Regulations (E&W) Approved Document N2.

Venetian blinds

Not required

As schedule

Standard product features

Fire resistance rating:

Tested in accordance with BS 476–22:1987 and BS EN 13501-2, in accordance with manufacturers certified tested dimension and published technical manual.

Timber Chain of Custody:

Forestry Stewardship Council (FSC) mixed sources.
