Angled Standing Seam (Roofing)
Verified by manufacturer 3 months ago
Cradle to Cradle Certified
Certificate type
EPD
Certificate type
EPD
Certificate type

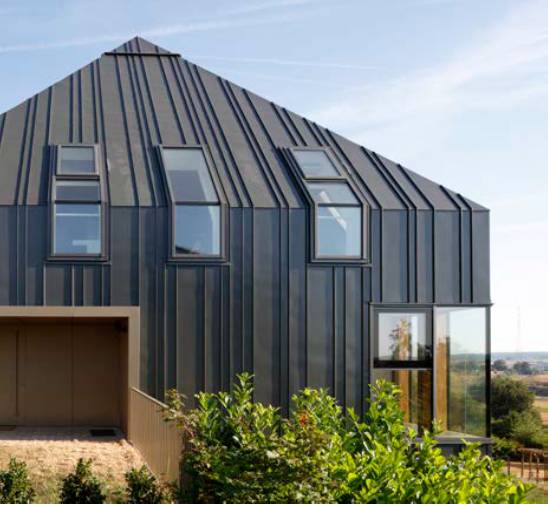

Angled standing seam zinc for roofing.
Application
Particularly suitable for visible design areas on metal roofs where the pitch is greater than 25°.
Description
Within conventional sheet metal techniques, the angled standing seam is a relatively new development; it has only been referenced in technical literature since the beginning of the 20th Century. Closing the seam of a pre-profiled panel is very easy compared with the double standing seam. The angled standing seam is completed simply by folding in one leg. As the angled standing seam looks wider than the double standing seam, it lends a vibrant, distinctive structure to large surface projects.
Features and benefits:
- Easy to install and suitable for all roof types.
- Distinctive design through the wider seam.
- Can be used for steep-sloped roofing >25°.
- Panel lengths up to 16 m.
- Durable and environmentally-friendly roofing material.
- Cradle to Cradle Certified® Bronze (CLASSIC and prePATINA).
- EN 15804 EPD (CLASSIC and prePATINA).
General information
Color | Black Blue Brown Gold Green |
Finish | Natural Pre-weathered Manufacturer guidancePre-PATINA, GRANUM, PRISMO and CLASSIC surfaces. |
Material | Zinc |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Maximum. |
Width | 430 mm 500 mm 600 mm Bespoke |
Height | 25 mm |
Warranty description | 30 year Guidance for specification option: 30-year guarantee. |
Uniclass | |
CAWS | H74/110 Zinc sheet fully supported roof covering |
Specification data - Zinc standard temper alloy strips
Classification data | |
Alloy | Zinc-titanium-copper. |
Standards | |
Sheet, strip and plate | To EN 988. |
Width | 430 mm. 500 mm. |
Finish | CLASSIC® bright-rolled. prePATINA blue-grey. prePATINA graphite - grey. Rheinzink - PRISMO Blue. Rheinzink - PRISMO Red. Rheinzink - PRISMO Green. Rheinzink - PRISMO Gold. Rheinzink - PRISMO Brown. Rheinzink - PRISMO black. Rheinzink - PRISMO brushed white. Rheinzink - GRANUM extra granite. Rheinzink - GRANUM extra basalte. |
Thickness | 0.7 mm. 0.8 mm. |
Reaction to fire | |
External face | To EN 13501-1, Class A1. Guidance for specification option: CLASSIC, GRANUM and prePATINA finishes. To EN 13501-1, Class A2. Guidance for specification option: PRISMO finishes. |
Preformed components | Eaves. Hip. Ridge. Verge. Vertical joint. Valley. |
Third-party certification | Cradle to Cradle Certified® Bronze and EN 15804 EPD (CLASSIC and prePATINA). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Zinc |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 1.85 kg CO₂ eq/kg |
Declared unit | 1.85 kg CO₂ eq/kg Certified Lower emissions |
Recyclability | 100% |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
