Angle Fillet For Flat Roofing

Verified by manufacturer 5 months ago

AIM

Thermal insulation materials cut as an angle fillet for flat roofing.

Jump to:
+44 (0)1293 582400 Website

Application

Suitable for flat roofing.

Description

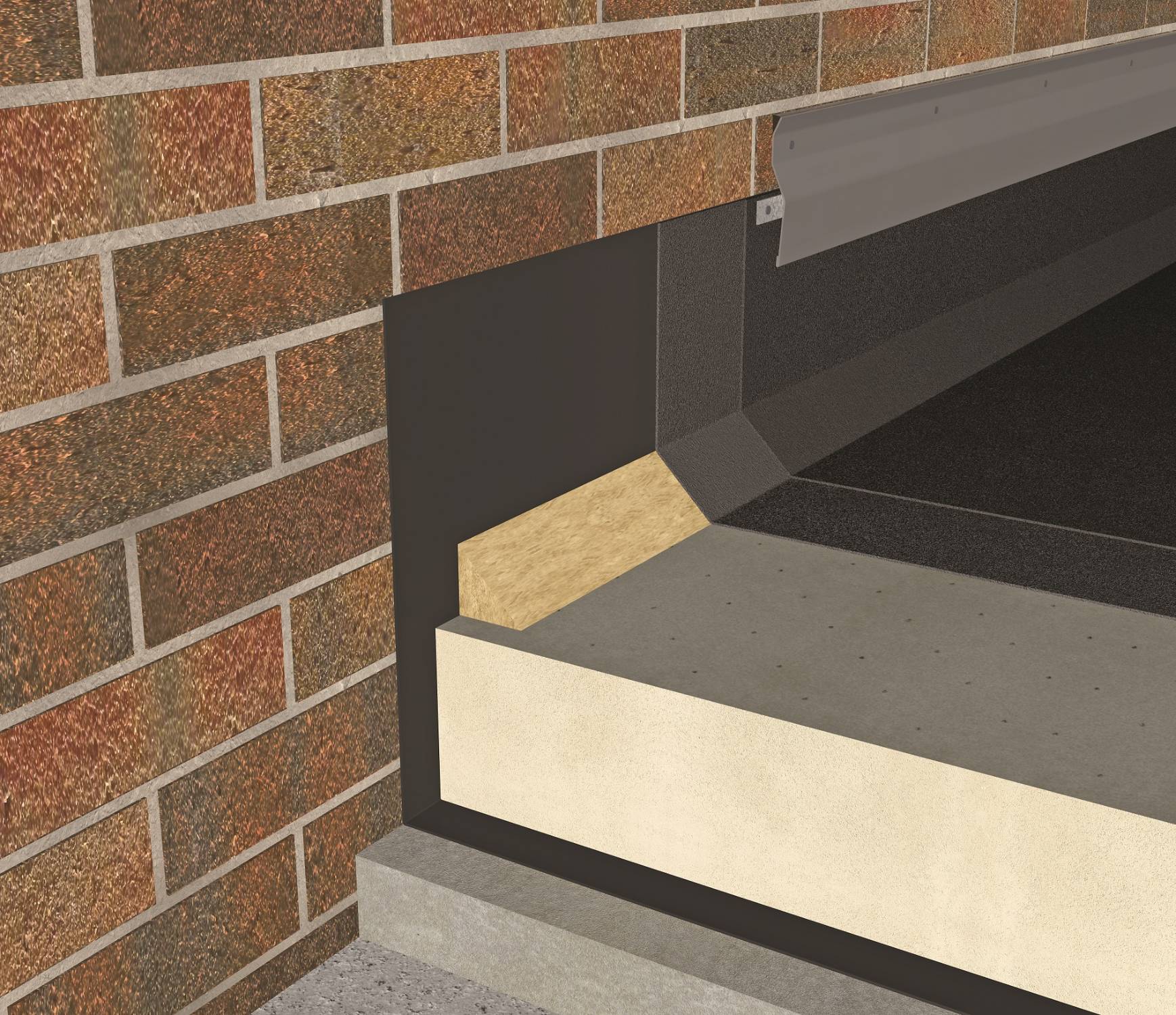

AIM Angle Fillets are designed to reduce the corner angle from 90° to 45° where there are horizontal and vertical abutments on a flat roof which is being waterproofed with a membrane system.


Features and benefits:

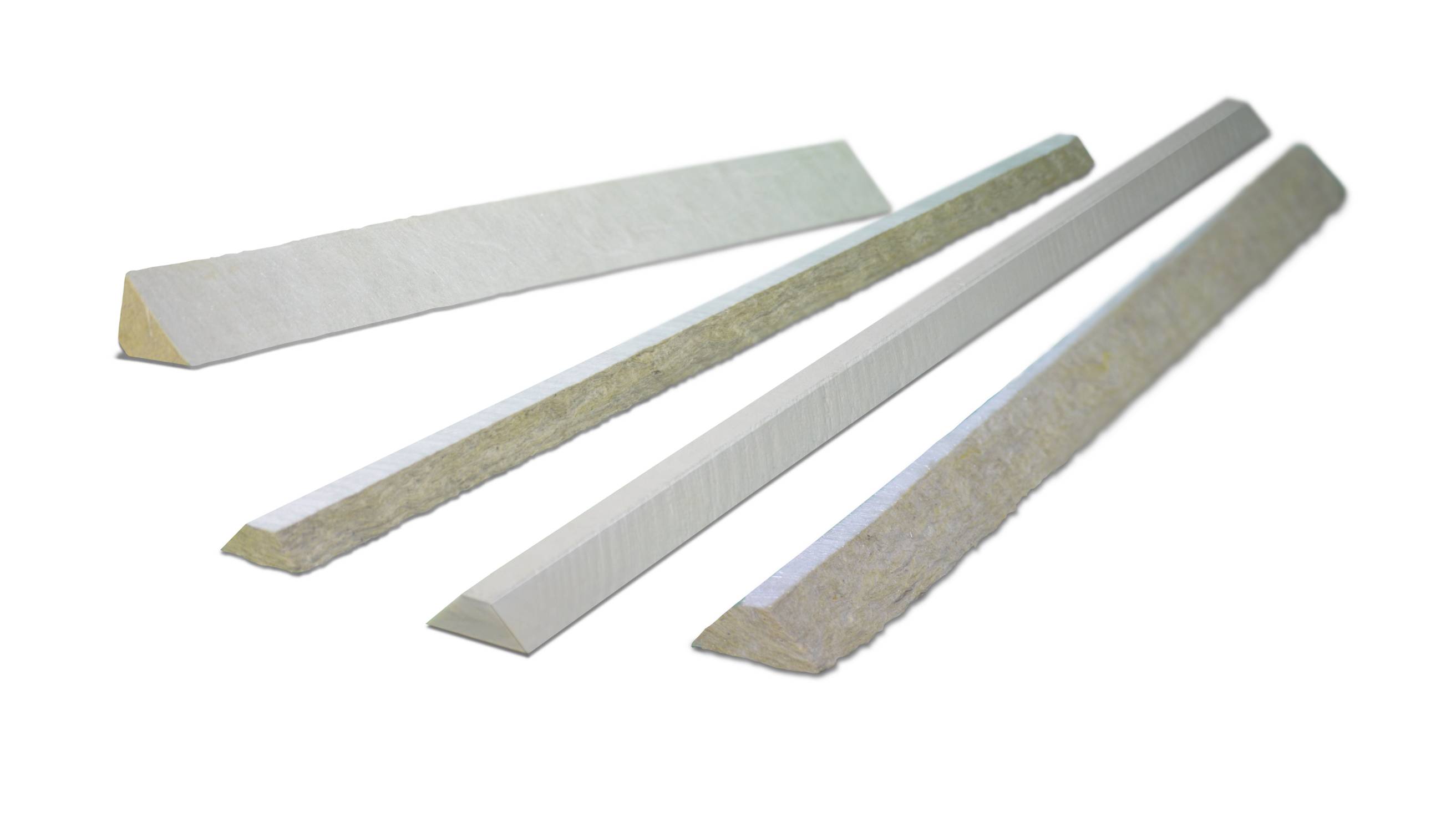

  • Available in mineral wool, PIR, XPS and EPS insulation materials.
  • Triangular or truncated profiles.
  • Standard size: 50 x 50 mm (triangular or truncated).
  • 108 linear metres/ lengths to a standard carton.
  • Mineral wool variants are fire resistant with a Euroclass A1 rating.
  • Mineral wool variants available either plain finished or tissue faced.
  • PIR variants available with a paper facing (truncated profile only).
  • XPS and EPS supplied without facings.
  • Any size fillet can be cut to order.
  • Mineral wool, PIR, XPS and EPS variants are deemed to be rot resistant.
  • Reduces the angle between horizontal and vertical for ease of installation of the waterproofing membrane.
  • Choice of insulation materials to suit the waterproofing system being used.

General information

Material

Polyisocyanurate (PIR)

Guidance for specification option:

PIR only available in the truncated profile.

Expanded polystyrene (EPS)

High density extruded polystyrene (XPS)

Mineral wool

Manufacturer guidance

Stone wool is standard. PIR option is available.

Shape

Triangle

Trapezium

Length

1000 mm

Width

50 mm

Bespoke

Manufacturer guidance

50 mm is standard. Bespoke sizes are available.

Height

50 mm

Bespoke

Manufacturer guidance

50 mm is standard. Bespoke sizes are available.

Uniclass

Pr_35_90_07_04 Angle filletsPrimary

CAWS

J21/10 Warm deck roof coating

J21/425 Mineral wool insulation

J31/10 Warm deck roof coating

J31/334 Mineral wool insulation

J41/10 Reinforced bitumen membrane warm deck roof covering

J41/425 Mineral wool (MW) insulation

J42/10 Warm deck roof covering

J42/425 Mineral wool (MW) insulation

Product range

Thermal And Acoustic Insulation

Specification data - Angle fillets

Material

Polyisocyanurate (PIR).

Guidance for specification option:

PIR only available in the truncated profile.

Expanded polystyrene (EPS).

High density extruded polystyrene (XPS).

Mineral wool.

Size (minimum)

1000 x 50 x 50 mm.

Profile

Triangular.

Truncated.

Durability

AIM Angle Fillets are chemically inert, will not sustain vermin and do not encourage the growth of rot, fungi, moulds or bacteria. They do not degrade under the usual conditions found in buildings and will perform effectively for the life of the building.

Environmental

Global warming potential = zero.

Guidance for specification option:

AIM Angle Fillets manufactured from stone wool insulation is universally recognised as being a sustainable and environmentally friendly material.

Compatibility

Compatible with all normal building materials.
