Ancon Teplo-BFL Wall Tie
Verified by manufacturer 1 day ago
Low thermal conductivity wall tie.
Application
Suitable when a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure.
Description

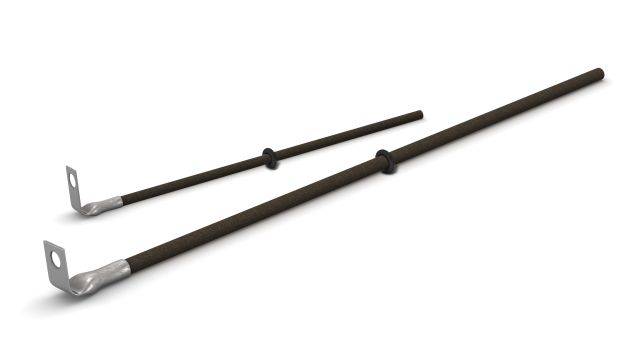

A wall tie that offers all the same benefits as the original Teplo basalt fibre cavity wall tie, with an additional stainless steel upstand which is mechanically and chemically bonded to one end of the tie to allow for a secondary fixing.
Features:
- 7 mm diameter hole in the upstand suits a variety of fixings, typically an M6 single expansion bolt for concrete, a plug and screw for either masonry or concrete, and either an M6 set screw or SDTSS-38-5PT self-drilling screw for steelwork.
- Suitable for cavities from 76mm to 400mm.
- Can be fixed to concrete, masonry, steel and timber.
- Can be used with the black Teplo-Clip where insulation is to be retained.
- The body is manufactured from basalt fibres set in a resin matrix and features a stainless steel upstand at one end with a 7 mm diameter fixing hole.
- The Teplo-BFL has been independently tested, has BBA Approval and can be used in line with NHBC standards.
General information
Color | Black |
Material | Other |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F30/214 Cavity wall ties F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties F30/24 Cavity wall ties F30/25 Cavity wall ties used with partial fill insulation F30/26 Wall ties |
Product range |
Specification data - Cavity wall ties
Classification data | |
Tie type | TEPLO-BFL-5-155 TEPLO-BFL-5-180 TEPLO-BFL-5-205 TEPLO-BFL-5-230 TEPLO-BFL-5-255 TEPLO-BFL-7-280 TEPLO-BFL-7-305 TEPLO-BFL-7-330 TEPLO-BFL-7-355 TEPLO-BFL-7-380 TEPLO-BFL-7-405 TEPLO-BFL-7-430 TEPLO-BFL-7-455 |
Material | Basalt fibre. |
Length | Manufacturer guidanceVarious lengths available; consult manufacturer for more details and insert requirements. |
ThermalConductivity | 0.7 W/mK |
Sustainability data
Material | Other |
