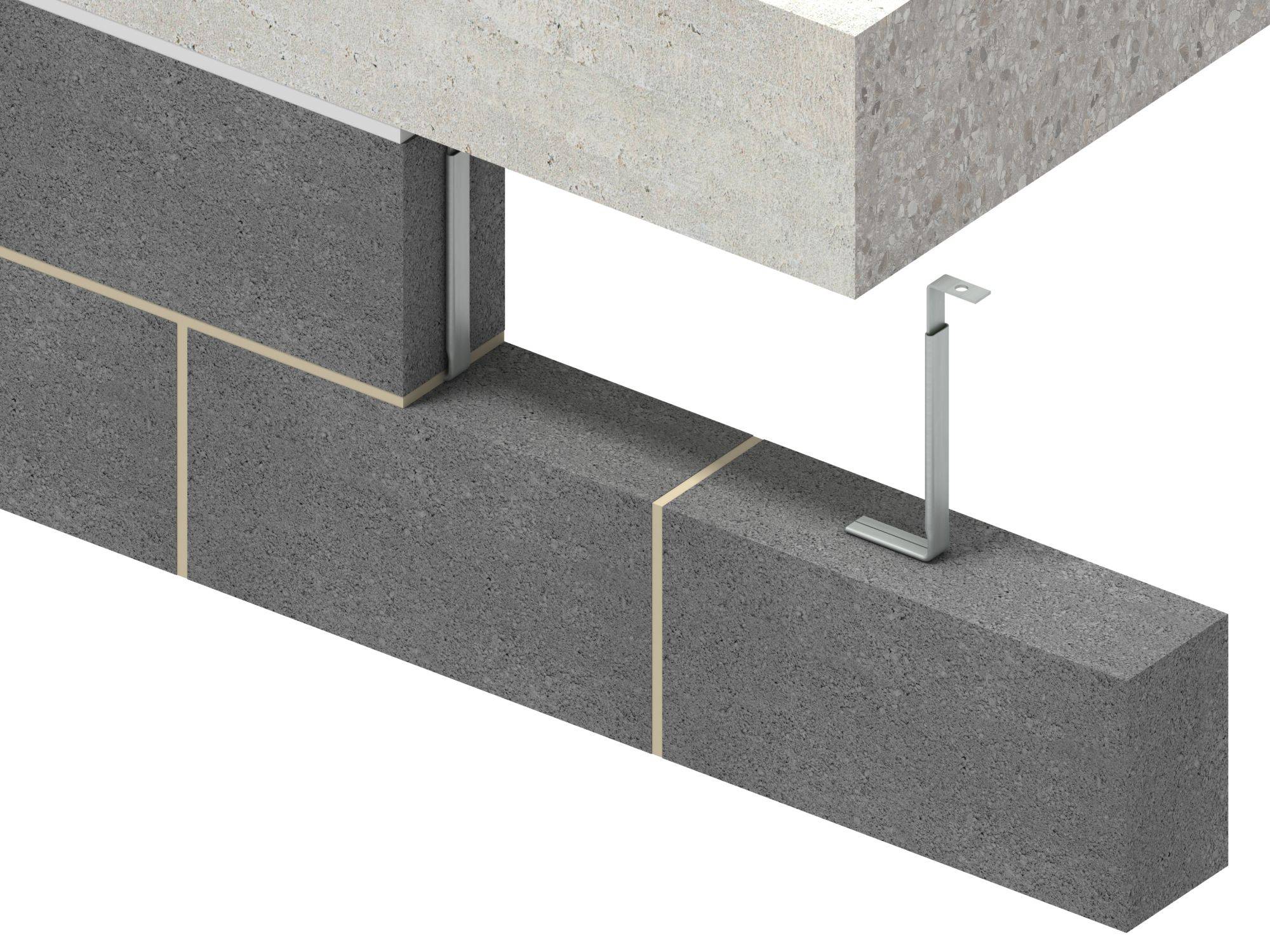

Ancon IHR-B Head Restraint - 2D Detail
Verified by manufacturer 3 months ago
FHR Head Restraint
FHR Head Restraint
Stainless steel head restraints for the top of masonry walls.
Application
Suitable to provide the necessary restraint to the top of masonry walls and accommodates vertical movement.
Description
Stainless steel head restraints designed to allow vertical movement to accommodate shrinkage or thermal movement of the wall or structural frame, whilst restraining wind loads.
Important:
Head restraint requirements/ spacing to be determined by Structural Engineer and Contractor to be informed.
General information
Color | Silver |
Material | Stainless steel |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 Vectorworks | - | 1 |
 AECOsim | - | 1 |
 ARCHICAD | - | 1 |
