Ancon 25/14 Channel & SD25 Tie - 2D Detail

Ancon 25/14 Channel & SD25 Tie - 2D Detail

Verified by manufacturer 2 months ago

Leviat

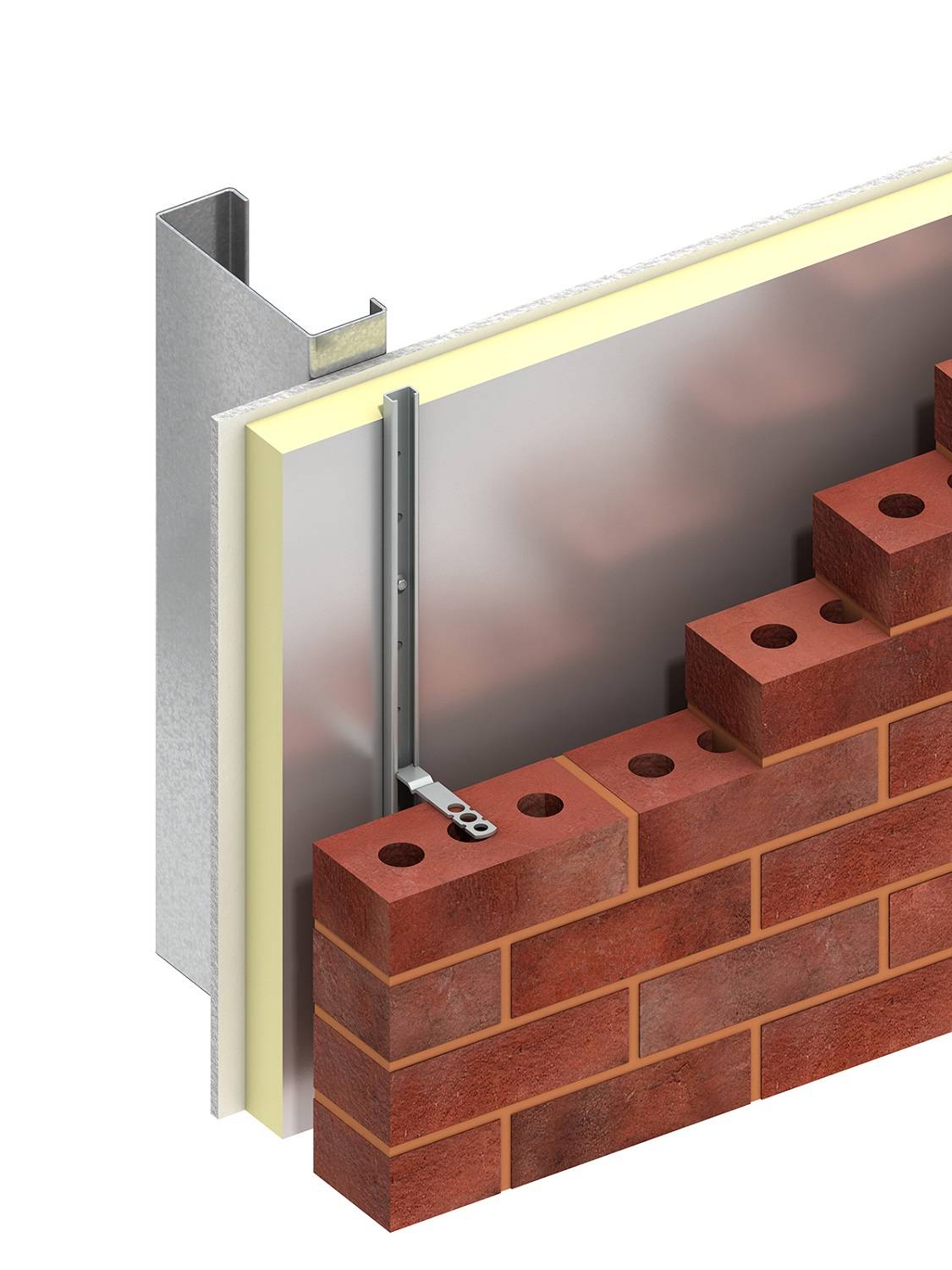

Channel and tie system for connecting masonry cladding to steel stud framing through insulation board.

Jump to:
+44 (0) 114 275 5224 www.leviat.com

Application

  • Suitable for fixing to steel and concrete.
  • Suitable for use with all insulation types.
  • Suitable for use with a maximum combined insulation and backing board thickness of 220 mm.


Description

Stainless steel slot tie channel for use with partial fill insulation, designed to tie brickwork external walling to a light steel or concrete frame.


System components:

  • 25/14 Channel;
  • High-Thread Fixing Screws;
  • SD25 Wall Ties (specified separately).


Features and benefits:

  • Self-drilling, high-thread screws fix through the channel and the insulation into the steel.
  • Wall ties are located within the channel and built into the joints of the outer leaf brickwork.
  • Vertical channels are fixed to the steel studs through insulation boards placed in the cavity.
  • Pre-punched holes are positioned at close centres to ensure a fixing position is always located near the end, even when the channel is cut on site.
  • The channel has a 16 mm opening to easily accommodate a drive socket and washer for the fixing of screws
  • Alternate 5.3 mm and 9.5 mm diameter holes allow different fixings. The smaller holes should be used when fixing to steel or timber with Ancon High-Thread Screws and the larger holes accommodate fixings for concrete.
  • Ancon SD25 ties are available in various lengths and are located in the channel by rotating through 90º and can be positioned at any point along the channel length and are built into the masonry bed joints of the outer leaf of brickwork.
  • CE marked.

General information

Material

Stainless steel

WarrantyDescription

25 year

When using zinc plated fixing screws.

60 year

Uniclass

Pr_20_85_84_87 Surface-mounted channelsPrimary

CAWS

F30/245 Channel/ slot ties

Product range

Channel and Bolt Fixings

Specification data - Surface-mounted channels

Standard

CE marked.

Material

Stainless steel.

Accessories

Not required.

Ancon compression sleeves.

For use with more flexible insulations.

Ancon concrete fixing screws.

To accommodate a combined backing board and insulation thickness of up to 267 mm. Consult manufacturer's literature and insert product code.

Ancon high-thread fixing screws.

  • HTSS-65-2PT-W – Length: 65 mm. Insulation/ backing material thickness: 27–46 mm.
  • HTSS-82-2PT-W – Length: 82 mm. Insulation/ backing material thickness: 35–61 mm
  • HTSS-100-2PT-W – Length: 100 mm. Insulation/ backing material thickness: 43–79 mm.
  • HTSS-115-2PT-W – Length: 115 mm. Insulation/ backing material thickness: 60–94 mm.
  • HTSS-135-2PT-W – Length: 135 mm. Insulation/ backing material thickness: 65–114 mm.
  • HTSS-150-2PT-W – Length: 150 mm. Insulation/ backing material thickness: 80–129 mm.
  • HTSS-180-2PT-W – Length: 180 mm. Insulation/ backing material thickness: 110–159 mm.
  • HTSS-240-2PT-W – Length: 240 mm. Insulation/ backing material thickness: 165–220 mm.

Carbon steel screws.

Channel

Vertical.

Fixings

Self-drilling, high-thread screws fix through the channel and the insulation into the steel. Vertical channels are fixed to the steel studs through insulation boards placed in the cavity.

Clips

High-thread fixing screws.

Digital objects

Platform Compatible Version Certified to
ARCHICAD
-

1.0

1.0

Vectorworks
-

1.0

1.0

AECOsim
-

1.0

1.0

Revit

Revit 2016

4

2.0
Download now from NBS National BIM Library

Literature

Ancon 25/14 Restraint System

Ancon 25/14 Restraint System
