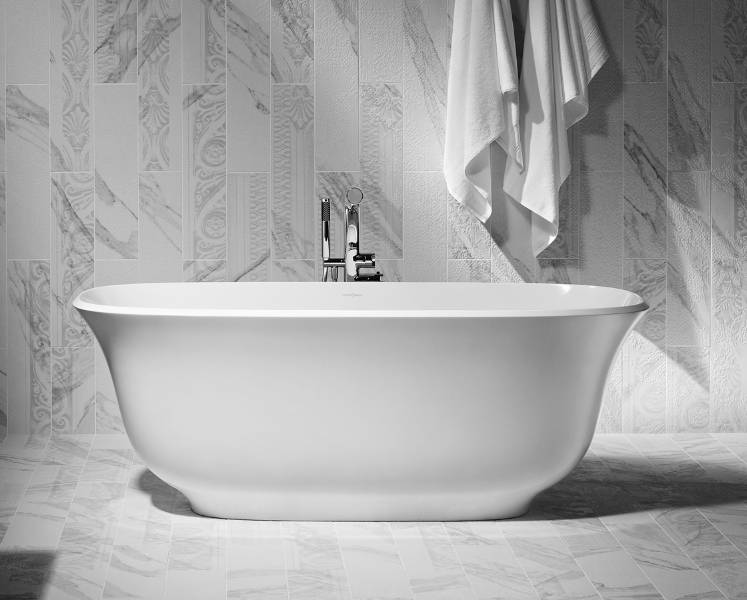

Amiata - Freestanding Bath

Verified by manufacturer 3 months ago

Amiata 1500 QUARRYCAST™ White AMT1-N-SW-NO

Victoria + Albert Baths Variant:

Freestanding bath, two sizes. 152 L and 154 L capacity

Jump to:
07443186488 Website

Application

Luxury freestanding bath suitable for domestic and hospitality settings.

Description

Freestanding, double-ended QUARRYCAST™ bath available in two sizes.


Features and benefits:

  • Compact footprint.
  • Amiata 1500 features a void space underneath for waste plumbing.
  • Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
  • Delivers unrivalled strength, durability, and beauty.
  • Available in a gloss or matt finish.
  • Available in a range of RAL colours.

General information

Color

White

Other

Finish

Gloss

Matt

Material

Stone

Limestone

Shape

Oval

Length

1519 mm

1645 mm

Width

726 mm

800 mm

Height

550 mm

611 mm

Warranty description

Eight year

Guidance for specification option:

Commercial use.

25 year

Guidance for specification option:

Residential use.

Two year

Guidance for specification option:

Paint finish exterior.

Manufacturer guidance

Note: Commercial and residential warranties indicated are for QUARRYCAST™ white products only. Paint finish exterior guaranteed for two years.

Uniclass

Pr_40_20_06_08 BathsPrimary

CAWS

N13/355 Baths

N13/35 Baths

Specification data - Baths

Form

Free-standing.

Materials

QUARRYCAST™ volcanic limestone.

Colour

White.

Size

1519 x 729 mm.

Volume to overflow (maximum)

237 L.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

No overflow hole.

Guidance for specification option:

Drill as required.

Weight

73 kg.

Dimensions – height

550 mm.

Material Finish

QUARRYCAST™ white (gloss).

Recommended discharge pipe

Not required.

K-12-xx.

K-17-xx.

K-36-xx.

Manufacturer guidance

(Recommended wastes):

BIM objects

Platform Compatible Version
Revit
-

1

Literature

EU_Amiata_1500_2022

EU_Amiata_1500_2022

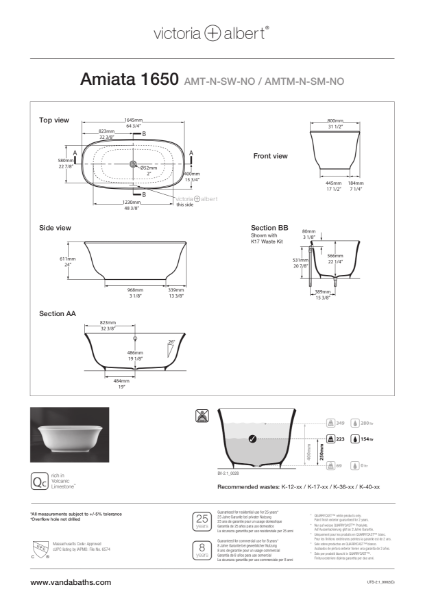

EU_Amiata_1650_2022

EU_Amiata_1650_2022

Case studies

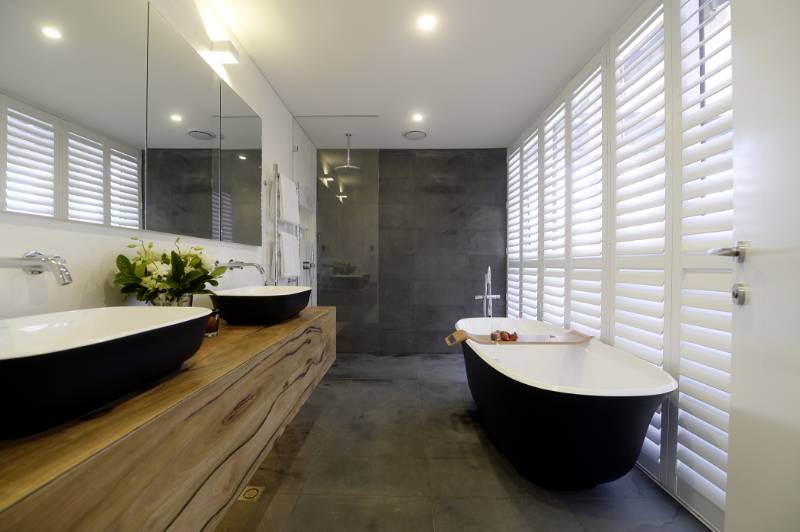

Halcyon House New South Wales, Australia (Amiata)

Halcyon House New South Wales, Australia (Amiata)

The Dark Side Melbourne, Australia ( Amiata, Amiata 60)

The Dark Side Melbourne, Australia ( Amiata, Amiata 60)
