AMF THERMATEX® Alpha Colour - Exposed Grid Ceiling System

Name: AMF THERMATEX® Alpha Colour - Exposed Grid Ceiling System
Brand: Knauf Ceiling Solutions Limited
SKU: epm2VWJCJ5Tdw3A9dwwRE5

Verified by manufacturer 2 days ago

Black

Product certifications:

High performance mineral coloured ceiling tile with Class A sound absorption.

Jump to:

Application

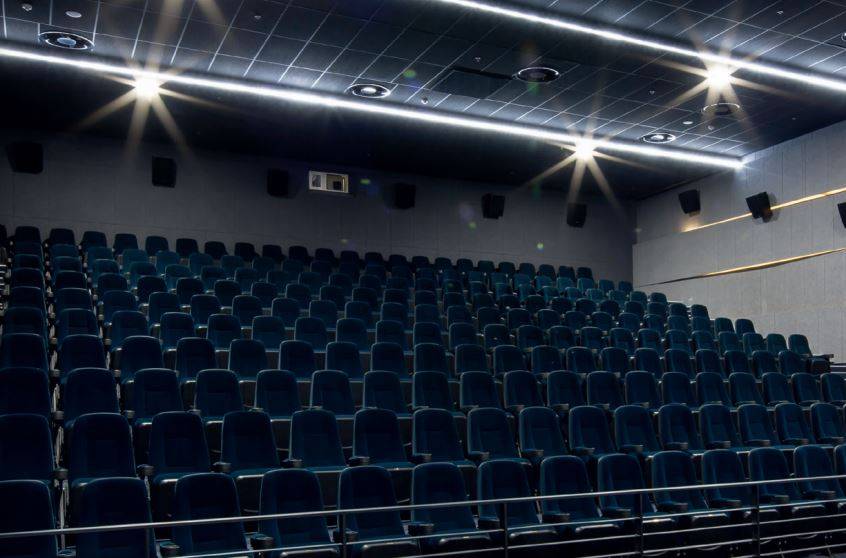

Can be applied in offices, restaurants, cinemas, classrooms and learning applications.

AMF THERMATEX® Alpha Colour provides a modern appearance and is a good solution for spaces that require sound absorption qualities.

Features and benefits:

Color	Blue Grey Black Silver Green Cream Yellow Orange Other White Show more
Finish	Smooth
Material	Mineral wool
Shape	Square Rectangle
Length	600 mm 1200 mm
Width	600 mm
Height	19 mm
Warranty description	- Manufacturer guidance please see EPD

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings

Classification data
System performance	- Manufacturer guidance Insert requirements.
Ceiling support	Exposed demountable - System C. DONN® DX3-24 \| SG exposed 24 mm grid - System C. Manufacturer guidance Consult manufacturer's literature for more details.
Support fasteners	Manufacturer's standard.
Ceiling units	Board edge mineral fibre infill units 600 x 600 x 19 mm. Board edge mineral fibre infill units 1200 x 600 x 19 mm.
Samples required	Product samples. Demountable suspended ceiling prototypes. Not required. Manufacturer guidance Consult manufacturer for options.
Weight	3.3 kg/m².
Constant humidity resistance	95% RH.
Third-party certification	Indoor Air Quality Rating A+.
Reaction to fire	To EN 13501-1, Euroclass A2-s1, d0.
Colour	Black.
Sound absorption	To BS EN ISO 354 and EN ISO 11654, αw = 1.00 (Class A).
Sound attenuation	To EN ISO 10848-2 and EN ISO 717-1, Dn,f,w = 28 dB. Guidance for specification option: CAC = 29 dB as per ASTM E 413-10.
Sound reduction	To EN ISO 10140-2 and EN ISO 717-1, Rw = 14 dB.
Surface texture	Wet felt.
Air permeability	To DIN 18177, PM1 (≤ 30 m³/hm²).
ThermalConductivity	To EN 12667, λ = 0.040 W/m·K.
Recycled content (minimum)	43%.

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Mineral wool
Recyclability	- Manufacturer guidance Please see EPD
Recycled content As defined in clause 7.8 of BS EN ISO 14021	43 %
