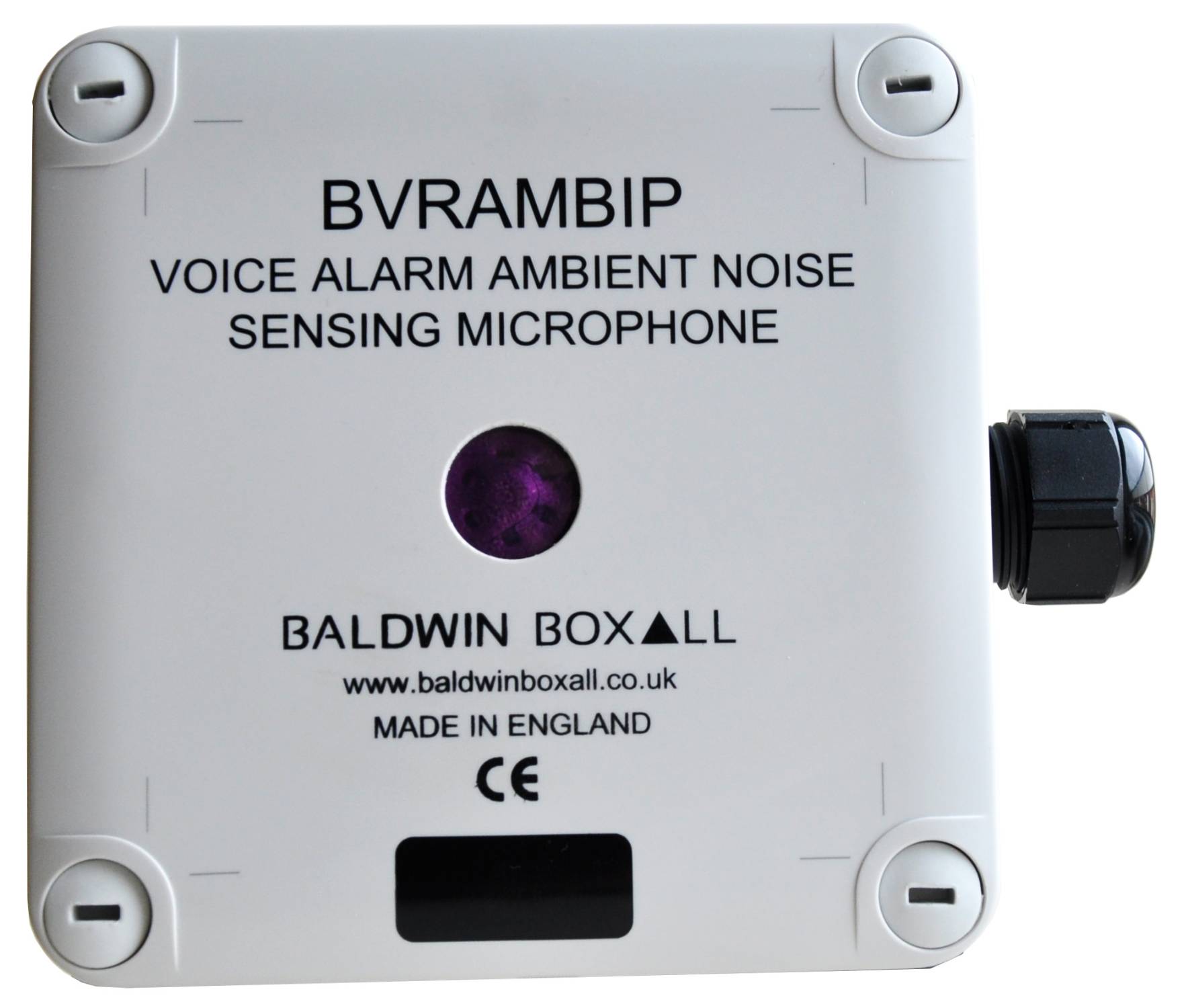

Ambient Noise Sensing (BVRAMBIP)

Verified by manufacturer 3 months ago

Baldwin Boxall Communications Ltd

The BVRAMBIP is an IP65 rated ambient noise level monitor for installation where moisture may be present.

Jump to:
BOS
+44 (0)1892 664422 Website

Application

Suitable for areas where moisture may be present.

Description

During noisy or busy periods, the volume levels automatically adjusts the power of the amplifiers to suit the environment. The unit uses a dynamic microphone capsule, the output of which is amplified and converted to produce a variable current.


Features and benefits:

  • Volume and amplifiers able to self adjust.
  • Monitors ambient noise and multiple response speeds.
  • CE certified.

General information

Color

Grey

Material

Plastic

Shape

Square

Length

60 mm

Width

116 mm

Height

116 mm

Warranty description

Seven year

Guidance for specification option:

Baldwin Boxall warrants all products manufactured by itself for a period of seven years from date of invoice.

Uniclass

Pr_75_75_94_03 Ambient noise sensing controllersPrimary

Specification data - Ambient noise sensing controllers

Standard

To BS EN 54, BS 5839, EN 55103-1, EN 55103-2, and EN 60065.

Rated voltage

Nominal 24 V d.c. at 20 mA.

Control range

10 or 20 dB attenuation.

Ingress protection (minimum)

IP65.

Sensitivity

One.

Manufacturer guidance

Input sensitivity.

Output

13 V d.c.

Manufacturer guidance

Maximum output.

Setting time

Slow, medium and fast.

Manufacturer guidance

Sample time setting.

Total weight:

0.4 kg.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
