Aluprof MB-SR50N - 50 mm wide Curtain Wall System

Aluprof MB-SR50N - 50 mm wide Curtain Wall System

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aluprof UK

High performance aluminium mullion-transom curtain wall facade systems with mullion/ transom construction and end caps, available in standard or thermally enhanced variants.

Jump to:
+44 (0)161 9414005 www.aluprof.co.uk
Application

Designed to fabricate lightweight curtain walling. Can also be used for roofs, skylights and other spatial structures.

Description

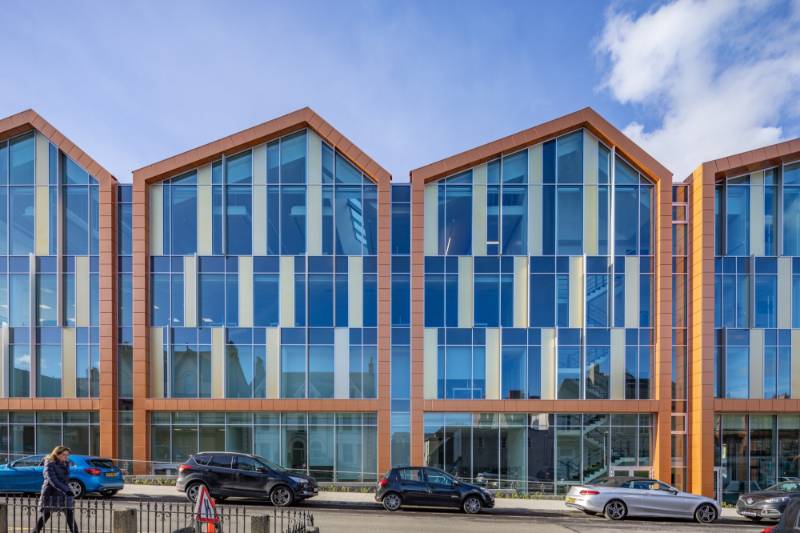

High performance aluminium mullion-transom curtain wall facade systems, available in standard or thermally enhanced variants, with or without capping. The system is designed for creating lightweight curtain walls of hanging and filling type, as well as roofs, skylights and other structures. The shape of mullions and transoms allows for construction of aesthetic facades with visible narrow dividing lines, providing the structure with durability and resistance at the same time. The profiles have rounded external edges, giving the 'soft-line' effect.

Features and benefits:

  • Angle joints enabling the free shaping of aluminium structures.
  • Posts and beams with ‘sharp’ edges allowing construction of curtain wall supporting structures with the appearance of a uniform truss.
  • Aesthetic curtain wall varieties and a number of lining profiles of various shapes providing multiple curtain wall appearances.
  • A large choice of complementary curtain wall opening accessories are available: windows and doors of various types, including skylight windows and windows integrated with the curtain wall, as well as tilt and parallel opening MB-SR50N OW windows.
  • A wide glazing range along with the availability of insulators and accessories allowing a high level of curtain wall thermal insulation.
  • The possibility of bending profiles and creating use curved structures.

Application:

Designed to fabricate lightweight curtain walling. Can also be used for roofs, skylights and other spatial structures.

General information

Features

Range of colours; range of curtain wall opening accessories

Finish

Anodized or polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard)

Material

Aluminium/ glass

Shape

Rectangular; shaped; faceted; raked; bespoke

Size

Bespoke

WarrantyDescription

Finish: Up to 25 years polyester powder coating, 10 years anodized. Consult manufacturer for details of marine and industrial environments

Uniclass 2015

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems Enhanced data

Product Reference

Aluprof MB-SR50N Facade

Standard capped system.

Aluprof MB-SR50N HI Facade

Enhanced insulation variant of the standard framed system.

Aluprof MB-SR50N HI+ Facade

High insulation capped system.

Aluprof MB-SR50N Passiv Haus Certified

Capped system.

Aluprof MB-SR50N EFEKT

Silicone glazed capless system.

Aluprof MB-SR50N PL

Standard horizontally capped system.

Aluprof MB-SR50N PL HI+

High insulation horizontally capped system.

Aluprof MB-SR50N IW

Capped system with concealed opening vents.

Framing

-

Frame members

See Aluminium curtain wall frame sections below

Frame accessories

Cover caps as manufacturer's standard

See 'Aluminium curtain wall frame sections' below for colour and finish details. Not applicable for EFEKT variant.

Fasteners

Manufacturer's standard

Cladding units

-

Glass units

Annealed glass

Specify details in the relevant product clause.

Heat strengthened glass

Specify details in the relevant product clause.

Laminated glass

Specify details in the relevant product clause.

Thermally toughened glass

Specify details in the relevant product clause.

Insulating glass units (IGUs)

Specify details in the relevant product clause.

Panels and facings

-

Material

Not required

Aluminium faced sandwich panels, colour matched to framing

External cover plate fixed, with two skins of a minimum 2 mm-thick aluminium sheet. Panels are to be finished in a polyester powder coat to match the framing with a non-combustible core insulation to achieve a maximum U-value of 0.97 W/m²k.

Fasteners

Manufacturer's standard

Perimeter seals

Ethylene propylene diene monomer (EPDM) rubber

Samples required

Consult manufacturer if required

System accessories

None

Aluprof MB-SR50N OW facade window

Specified separately.

Aluprof MB-RW facade roof window

Specified separately.

Aluminium curtain wall frame sections

-

Standard

Consult manufacturer

Alloy, temper and thickness

Manufacturer's standard

Structural members

To BS EN 1999-1-1, BS EN 1999-1-3 and BS EN 1999-1-4, EN 13830: 2005

Profile

Aluprof K Range suitable for the project

Consult manufacturer for details and insert requirements.

Finish

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness

Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness

Colour

RAL, Matt

Polyester powder coated coatings only; insert colour requirements.

RAL, Satin Gloss

Polyester powder coated coatings only; insert colour requirements.

RAL, High Gloss

Polyester powder coated coatings only; insert colour requirements.

RAL, Structure

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized

Polyester powder coated coatings only; insert colour requirements.

NCS

Polyester powder coated coatings only; insert colour requirements.

Special effects

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements.

Decoral (wood grain effect)

Polyester powder coated coatings only; insert colour requirements.

Natural silver

Anodized only.

Coloured anodized to Aluprof 'C' range

Anodized only; insert colour requirements.

Brushed silver anodized

Anodized only.

Heavy brushed silver anodized

Anodized only.

Texture

Dependent on coating specified

Accessories

Consult manufacturer for details and insert requirements.

Size

-

Width

50 mm

Cover caps

-

Material

Manufacturer's standard (not applicable for Aluprof MB-SR50N EFEKT)

Profile

Aluprof K Range suitable for the project

Consult manufacturer for details and insert requirements.

Purpose

Mullions and transoms

Mullions only

Transoms only

Size

Manufacturer's standard

Dependent on variant selected. Not applicable for Aluprof MB-SR50N EFEKT.).

Finish

Anodized by Aluprof to Qualanod standard, 25 µm film thickness

Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness

Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness

Film thickness (minimum)

25 or 60 µm, dependent on finish specified

Colour

To match Aluminium curtain wall frame sections

RAL, Matt

Polyester powder coated coatings only; insert colour requirements.

RAL, Satin Gloss

Polyester powder coated coatings only; insert colour requirements.

RAL, High Gloss

Polyester powder coated coatings only; insert colour requirements.

RAL, Structure

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized

Polyester powder coated coatings only; insert colour requirements.

NCS

Polyester powder coated coatings only; insert colour requirements.

Special effects

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements.

Decoral (wood grain effect)

Polyester powder coated coatings only; insert colour requirements.

Natural silver

Anodized only.

Coloured anodized to Aluprof 'C' range

Anodized only; insert colour requirements.

Brushed silver anodized

Anodized only.

Heavy brushed silver anodized

Anodized only.

Sheen

Dependent on coating specified

Fixing

Manufacturer's standard

Performance

-

Air permeability

Dependent on variant specified

Consult manufacturer for details.

Watertightness

Class RE 1200 (1200 Pa) or RE 1500 (1500 Pa)

Dependent on variant specified; consult manufacturer for details.

Wind load resistance

Dependent on variant specified

Consult manufacturer for details.

Impact resistance

I5/E5

To EN 14019.

Thermal insulation

From 0.7–1.6 W/m²K

Dependent on variant specified; consult manufacturer for details.

Environmental Product Declaration (EPD)

Cradle to Cradle

Installation

The MB-SR50N facade system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd

Standard product features

Colour:

Anodized; RAL; NCS; special effects.

Features:

Range of colours; range of curtain wall opening accessories.

Finish:

Anodized or polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard).

Material:

Aluminium/ glass.

Shape:

Rectangular; shaped; faceted; raked; bespoke.

Size:

Bespoke.

Warranty description:

Finish: Up to 25 years polyester powder coating, 10 years anodized. Consult manufacturer for details of marine and industrial environments.

Recycled content:

67.10 %.

Country of origin:

Poland.

Country of manufacture:

United Kingdom/ Poland.

Environmental information

Recycled content

67.10 %
