Aluprof MB-79N Door System

Verified by manufacturer 3 days ago

Aluprof MB-79N ST - Standard Framed System

Aluprof UK Variant:
Product certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

High performance, thermally broken aluminium swing door system to meet the latest standards and regulations.

Jump to:
+44 (0)161 9414005 Website

Application

Suitable for application as:

  • Single doors or double doors.
  • Glazed, panelled doors.
  • Fire escape doors.
  • Panic escape doors.
  • Automatic doors.
  • French doors.

Suitable for application in:

  • New build projects.
  • Refurbishment projects.
  • All building types: residential, education, commercial, leisure, hospitality, public buildings, low-rise and high-rise etc.
  • Entrances.

Description

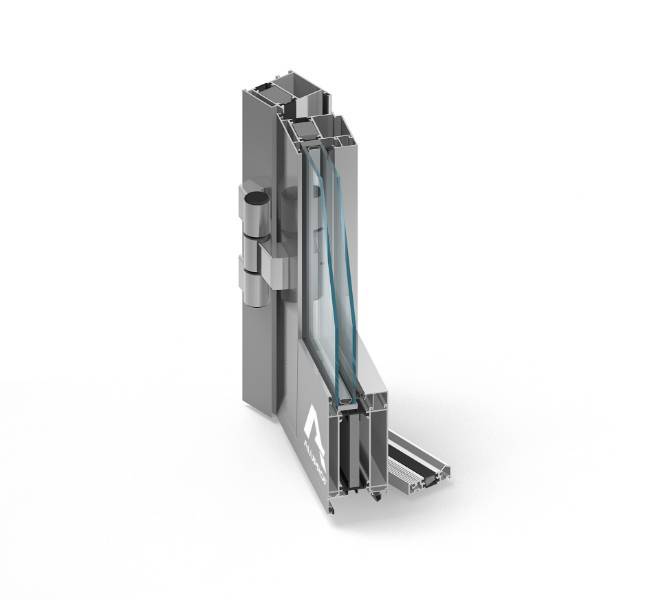

High performance aluminium doors, which form part of the MB-79N suite of window and door systems.

The MB-79N is a modern aluminium system intended for the exterior glazing and façade of architectural buildings which require effective security, high thermal and acoustic insulation performances in conjunction with aesthetics and cost efficient solutions.

Features and benefits:

  • Available in four levels of thermal performance for the most cost efficient project solution doors (MB-79N E, MB-79N ST, MB-79N SI and MB-79N SI+).
  • Range of configurations and colours, including interior and exterior dual colour options.
  • Secure, multi-point safety locking.
  • System profiles have a three-chamber structure.
  • Compatible with Aluprof MB-79N windows and can be specified as part of a fully integrated window and door system.
  • Compatible with Aluprof curtain wall systems including the MB-SR50N and MBSR60N, and can be specified as part of a fully integrated façade solution.
  • Structural depth of the window sections is equal to 70 mm (frames) and 79 mm (casement), giving the effect of one surface from the exterior side after closing.
  • Profile shapes allow slender and resistant window structures.
  • Glazing thickness of up to 54mm.
  • Eurogroove compatible (broadens the choice of hardware available).
  • Compliance with CE marking requirements.
  • PAS 24 and secured by design certified solutions available.

General information

Color

Other

Guidance for specification option:

Many coatings/ colours are possible.

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

(Up to 25 year.)

Polyester powder coating finish. Consult manufacturer for details of marine and industrial environments.

Ten year

Guidance for specification option:

Anodized finish.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/55 Doorsets

H11/135 Doors

L20/480 Doorsets

Specification data - Aluminium doorsets

Classification data

Standard

Non-fire and/ or smoke rated windows to EN 14351-1 and BS 4873.

Configuration

Single, open in.
Single, open out.
Double, open in.
Double, open out.

Doorset size

-

Manufacturer guidance

Bespoke; add dimensions and/ or drawing references as required.

Performance

-

Strength and durability

Not required.
Class 1.
Class 2.
Class 3.
Class 4.

Intruder resistance

-

Minimum requirement

Standard.
Enhanced Security (PAS 24).
Enhanced Security (RC2).
Enhanced Security (RC3).
Enhanced Security (RC4).

Application

Manufacturer's standard.

Conformity

Secured by Design.

Frame

-

Material

Aluminium.

Threshold

Standard rebated frame.
Low level threshold.
Low level ramped threshold.
Low level thermal performance threshold.
Automatic drop down threshold.

Perimeter seals or inserts

Ethylene propylene diene monomer (EPDM) weather seal.
External mastic seal.
Internal mastic seal.

Finish

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness.
Polyester powder-coated by Aluprof to Qualicoat standard, 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualicoat 'seaside' standard 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualideco standard 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualideco 'seaside' standard 60 µm film thickness.
Bespoke.

Guidance for specification option:

Insert details of external and internal and coatings choices from the list above. Colours specified separately below.

Texture

Depending on coatings specified.

Colour

RAL, matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, satin gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, high gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss.

Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Installation fasteners

Manufacturer's standard.

Door leaf

-

Thickness

70 mm.

Core

Manufacturer's standard.

Material

Aluminium.

Perimeter seals

None.
EPDM gasket seal.

Beading

-

Type

Internal prestige.
Internal standard.
Internal style.

Material

Aluminium.

Fixing

Manufacturer's standard.

Finish

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness.
Polyester powder-coated by Aluprof to Qualicoat standard, 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualicoat 'seaside' standard 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualideco standard 60 µm film thickness.
Polyester powder-coated by Aluprof to Qualideco 'seaside' standard 60 µm film thickness.
Bespoke.

Guidance for specification option:

Insert details of external and internal and coatings choices from the list above. Colours specified separately below.

Texture

Dependent on coating specified.

External colour

RAL, matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, satin gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, high gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss.

Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Guidance for specification option:

Anodized only.

Heavy brushed silver anodized.

Guidance for specification option:

Anodized only.

Internal colour

RAL, matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, satin gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, high gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss.

Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Guidance for specification option:

Anodized only.

Heavy brushed silver anodized.

Guidance for specification option:

Anodized only.

As external.

Film thickness (minimum)

60 µm (PPC) or 25 µm (Anodized).

Guidance for specification option:

Dependent on coating specified.

Door accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Hardware

Standard, silver.
Standard, white.
Standard, brown.
Standard, silver anodized.
Standard, RAL colour to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (PAS 24), silver.
Enhanced Security (PAS 24), white.
Enhanced Security (PAS 24), brown.
Enhanced Security (PAS 24), silver anodized.
Enhanced Security (PAS 24), RAL to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (RC2), silver.
Enhanced Security (RC2), white.
Enhanced Security (RC2), brown.
Enhanced Security (RC2), silver anodized.
Enhanced Security (RC2), RAL to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (RC3), silver.
Enhanced Security (RC3), white.
Enhanced Security (RC3), brown.
Enhanced Security (RC3), silver anodized.
Enhanced Security (RC3), RAL to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (RC4), silver.
Enhanced Security (RC4), white.
Enhanced Security (RC4), brown.
Enhanced Security (RC4), silver anodized.
Enhanced Security (RC4), RAL to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Execution

See Installation below.

Profile

Aluprof K Range suitable for the project.

Door leaf profile

Aluprof K Range suitable for the project.
To match frame profile.

Ironmongery

Single point locking.
Multipoint locking.
Emergency exit (EN 179).
Panic Escape (EN 1125).
Electric strike single point locking.
Electronic multipoint locking.

Hinges

Surface mounted hinges.
Barrel hinges.
Concealed hinges.

Environmental Product Declaration (EPD)

Cradle to Cradle.

Installation

The MB-79N door system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Third party accreditation

CE marked; Q-Mark; ITB - EPD Certification; Qualicoat/ Qualanod/ Qualideco; Secured by Design.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

59.57 %

Product certifications

Product certifications

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified™ - Bronze

EPD

EPD

Aluprof Environmental Product Declaration to EN 15804 - Window & Door Systems

Qualicoat approval

Qualicoat approval

Aluprof Qualicoat QUALIDECO Certificate 2025

Qualicoat approval

Qualicoat approval

Aluprof Qualicoat SEASIDE Certificate 2025

BM Trada

BM Trada

Aluprof Q-Mark General Performance Windows PAS 24 Certificate (MB-70, MB-79N, MB-86, MB-104 Ranges)

Secured By Design

Secured By Design

Secured by Design (SBD)

Literature

Project Specific & Bespoke Solutions

Project Specific & Bespoke Solutions

MB-79N Window and Door System

MB-79N Window and Door System

UK & Ireland Project Book - Aluminium Systems

UK & Ireland Project Book - Aluminium Systems

Architectural Product Guide

Architectural Product Guide

Aluprof Systems Overview

Aluprof Systems Overview

Case studies

Millenium View, Coventry

Millenium View, Coventry

Microsoft Headquarters, Dublin

Microsoft Headquarters, Dublin

Similar products from Aluprof UK

Aluprof MB-104 - Door System (PassivHaus Certified)

Aluprof MB-104 - Door System (PassivHaus Certified)

Aluprof MB-78EI - Fire Resistant Door System

Aluprof MB-78EI - Fire Resistant Door System

Aluprof MB-86 - Door System

Aluprof MB-86 - Door System
