Aluminium window system - AW CT72
Verified by manufacturer 17 days ago

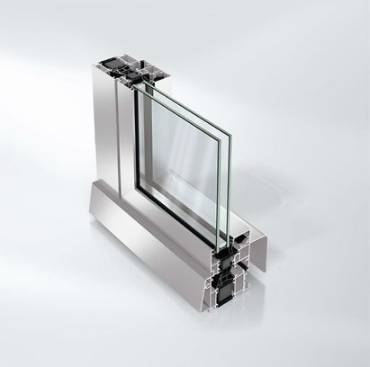

AW CT72 Fixed Light
AW CT72 Fixed Light
Side hung opening inwards with easy access window system for use in luxury residential and commercial buildings.
Application
Luxury residential and commercial buildings, particularly within the education sector.
Description
Side hung opening inwards with easy access window system for use in luxury residential and commercial buildings.
Features and benefits:
- Good thermal insulation.
- Use of crimped and nailed corner cleats.
- Continuous gaskets for efficient fabrication.
- Sun shading and glare protection can be integrated.
Standards:
- DIN EN ISO 1077-2.
- DIN EN ISO 140-3.
- DIN EN 1627.
- DIN EN 12207.
- DIN EN 12208.
- DIN EN 12210.
- DIN EN 13115.
- DIN EN 12400.
- EN 14351-1.
General information
Color | Other Guidance for specification option: All RAL colours. |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | Non-fire- and/ or smoke-rated windows to BS EN 14351-1. |
Dimensions and configurations | Fixed glazing. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1. |
Air permeability | To EN 12207, Class 4. |
Watertightness | To EN 12208, E900. |
Resistance to wind load | To EN 12210, C5/ B5. |
Safety | |
Security level | To BS EN 1627, RC 2 and PAS 24. |
Environmental | |
Acoustic performance rating | Up to Rw 46 dB. |
Frame | |
Finish as delivered | |
Coating | Polyester powder coated.Anodised. |
Colour | Guidance for specification option: By architect. |
Film thickness (minimum) | 60 micrometres.Guidance for specification option: Polyester powder coated. 25 micrometres.Guidance for specification option: Anodized. |
Ventilator | Yes. |
Hardware | Schueco Coretec. |
Operation | |
Type | Manual. |
Execution | Fixing of aluminium frames. |
Product Reference | AW CT72 Fixed Light AW CT72 Tilt/Turn Opening Inwards AW CT72 Bottom Hung Opening Inwards AW CT72 Side Hung Opening Inwards AW CT72 Tilt/Turn Opening Inwards with Easy Access Threshold |
Depth | 72 mm. |
Thermal insulation | 1.6 W/(m²K). |
Glass thickness | Up to 46 mm. |
Loading class | Up to Class 4. Guidance for specification option: Mechanical load rating. |
Weight | 100 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | cradle2cradle |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
