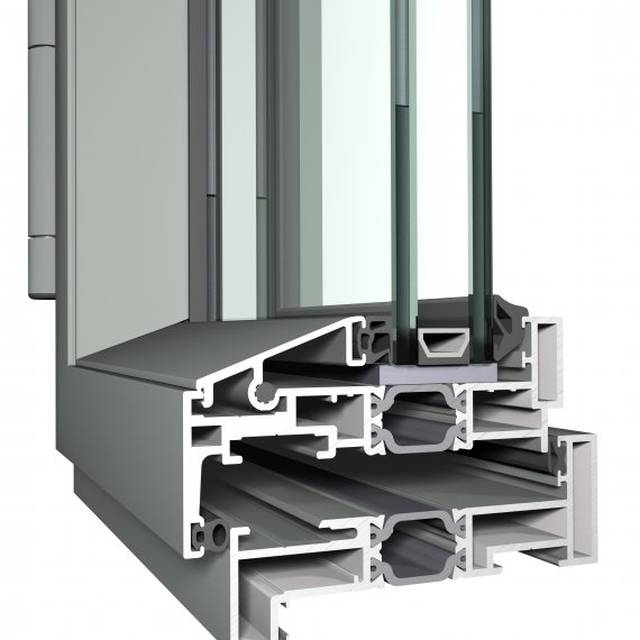

Aluminium Window CS24 Slim Line System

Description

CS 24 Slim Line Window System is a universal window system, with good performance when it comes to stability, thermal insulation and security with slim sight lines.

The window system offers a range of solutions for outward opening windows and can be combined with SL 38 Slim Line doors.

Features and benefits:

  • Outward opening side hung or top hung casement windows available with butt hinges or friction stays.
  • Drained and ventilated glazing with EPDM synthetic rubber gaskets.
  • Choose from a full range of polyester powder coat colours and anodized finishes.
  • Dual colour available offering a different colour inside and out.
  • Weather stripped profiles with polyamide thermal breaks.
  • 10 year systems guarantee provided as standard.
  • Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
  • CAD and BIM details available on request.

Performance:

  • Air permeability: Up to 600 Pa (class 4).
  • Wind load resistance: Up to 1200 Pa (class C3).
  • Water tightness: Up to 750 Pa (class E750)

Please refer to Reynaers product CE Passport certificates for clarification

Thermal insulation (to EN 10077-2:2012):

Double glazing: 1.8 W/m²K (Uw value depending on the frame/ vent combination and glass unit specification).

Security:

RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).

Fixing:

  • Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame.
  • Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.

General information

Size

Refer to drawings or schedule.

Finish

Anodized

Polyester powder coated

Insert requirement.

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Product Reference

Aluminium SL 24 Slim Line

Configuration

Fixed

Open-out

Insert requirements: Top or side hung projecting, top or side hung.

Size

Refer to drawings or schedule.

Finish

Anodized

Polyester powder coated

Insert requirement.

Colour

-

External

Insert requirement.

Internal

Insert requirement.

Glazing details

Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, g value and energy factors) and thickness.

Accessories

None

Remote operation

Window restrictor

Standard product features

Reynaers frame and components:

  • Aluminium profiles shall be extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573 – parts 3 and 4.
  • Designed and manufactured to comply with BS 4873.
  • Vent frame assemblies are 85 mm front to back and mitre cut at 45°. All corner joints to be assembled with screwed corner cleats, thermal corner supports and rebate supports and glued. All joints are sealed during fabrication against water entry.
  • Reynaers profiles are insulated with glass fibre reinforced polyamide strips, separating the internal and external faces, mechanically jointed and glued to form a single compound profile.
  • Dry glazed to accommodate a wide range of double glazing units with external clip-in aluminium glazing beads.
  • Weather-stripping to be EPDM extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent.
  • The Reynaers systems support CE – Marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls.
  • Manufactured and supplied under the requirements of ISO 14001, the internationally accepted standard that outlines an effective environmental management system.
  • Manufactured and supplied under a quality system certified to BS EN ISO 9001: 2000.
  • Reynaers Aluminium guarantees that the Reynaers Aluminium systems meet the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the Reynaers Aluminium catalogues determine the extent of this 10 year guarantee (five year guarantee for wearing parts).

Product Options

Glazing:

  • 20-28 mm double or triple glazing options. Contact the glass supplier for details of the glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, g value and energy factors), thickness and weight.
  • Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads.

Finish:

  • Profiles powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004.
  • Anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991.
  • Profiles can be finished with different internal and external colours, powder coated or anodized.

Consult manufacturer and insert requirements.
