Aluminium Standard Rigid Frame Guard

Verified by manufacturer 2 months ago

Intastop Ltd

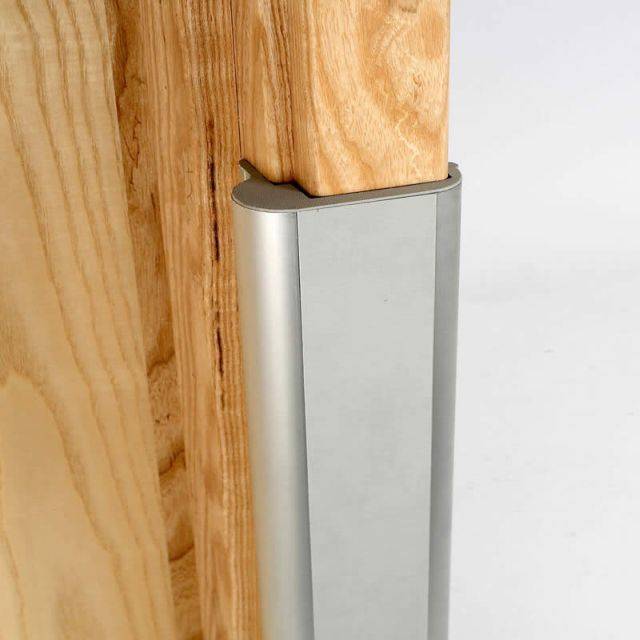

Aluminium standard rigid frame guard with PVC-U colour insert.

Jump to:
+44 (0) 1302 364 666 Website

Application

Suitable for higher impact areas and ideal for full or part frame protection.

Description

Suitable for higher impact areas and ideal for full or part frame protection, Rigid Frame Guards are designed to protect door frames and the vulnerable rear edges of doors. A variable fitting position protects door frame shaped sections on both pull and push sides. Suitable for the push side of the door and for architraves up to 70 mm.


Features:

  • Ideal for full and part protection.
  • Wide range of anti-bacterial colour inserts.
  • Easy to fit and maintenance free.
  • Protects against localized damage.
  • Anti-bacterial properties (Hygienilac®) in polyvinyl chloride (PVC) insert.
  • Digitally printed inserts for bespoke graphics and signage.


Benefits:

  • Reduce maintenance costs by protecting the most vulnerable parts of a frame from damage occurring.
  • Complements an existing décor or colour scheme.
  • Allows you to use as signage or give visual impact.
  • Maintains a clean safe environment ensuring staff and patient hygiene safety.
  • No expensive installation costs, gives immediate protection.
  • Reduces maintenance costs by deflecting traffic from vulnerable areas.
  • Removes the need to constantly repair frames.

General information

Finish

Satin

Guidance for specification option:

As standard.

Material

Aluminium

Guidance for specification option:

As standard.

Length

2100 mm

2400 mm

Width

100 mm

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/860 Door seals

Product range

Edge and Frame Guards

Specification data - Door and window weatherstrips and seals

Length

2100 mm.

2500 mm.

End cap

Not required.

FRI-EC.

Guidance for specification option:

PVC-U rigid door frame guard end cap.

Finish

Satin Anodised Aluminium (SAA).

Guidance for specification option:

As standard. Can be powder coated to any RAL colour or wood effect; insert requirements.

Anti-bacterial insert strip

Ivory.

Light Beige.

Olive Green.

Pale Blue.

Pale Green.

Show more

Manufacturer guidance

Available in a range of smooth colours, wood effect finishes or can be digitally printed with any graphic or signage. Consult manufacturer for details.

Width

100 mm.
